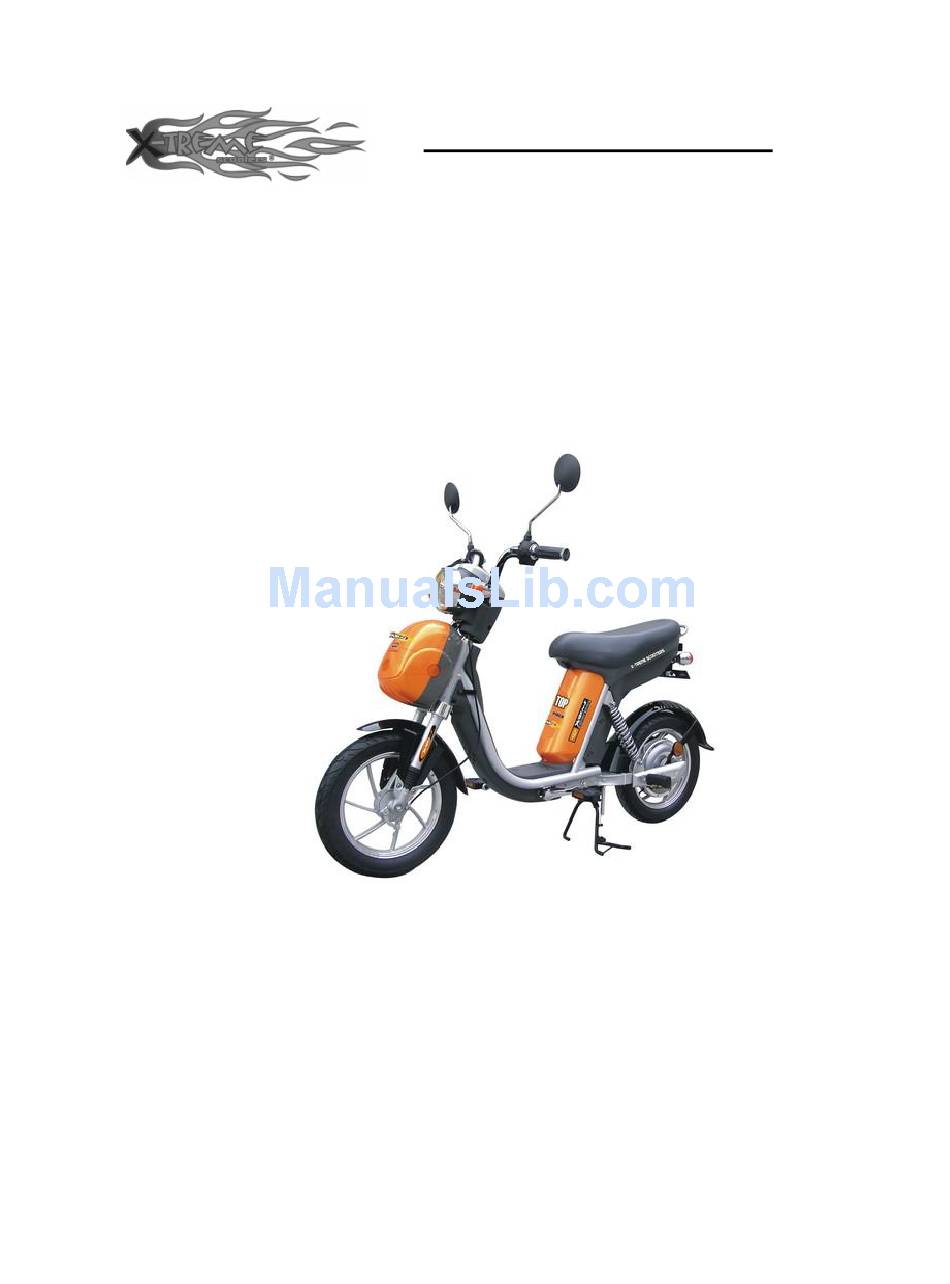

- Page 1 X-Treme Electric Moped XB-490 Electric Bicycle Owner’s Manual Read this manual completely before riding your electric bicycle...
-
Page 2: Table Of Contents
Contents Riding Safety ………………………………………………………..3 · Safety Basics …………………………………………. ….4 · Wet Weather Riding ……………………………….……..5 · Night Riding …………………………………………. …5 · Other Reminders ……………………………………………6 Specifications …………………………………………………..….7 Wire diagram……………………………..…………..….8 Specifications……………………………………..….….8 Operation……………………………………………………..…….9 Battery Care and Maintenance…………………………………….10 Remove battery box …………………………………..…….10 Battery charging………………………………………..……11 Maintenance…………………………………………………...12 Assembly and Setup …………………………………………….. -
Page 3: Riding Safety
RIDING SAFETY Like any sport, biking carries the risk of injury and damage. By choosing to ride the XB-490, you assume all responsibility for these risks. Thus, you need to know and practice the rules of safe and responsible riding. -
Page 4: Safety Basics
Never carry a passenger. The maximum carrying capacity is 350 lbs. Never ride barefoot or wearing sandals. Don’t jump with your XB-490. It puts great stress on everything from frame and forks to drive train. Riders who insist on jumping their XB-490 risk serious damage to their XB-490 as well as to themselves. -
Page 5: Wet Weather Riding
Rules of the Road, and take the following precautions: Make sure that your XB-490 is equipped with correctly positioned and securely mounted reflectors. Make sure your clothing or cargo does not obstruct a reflector or light. -
Page 6: Other Reminders
The battery does NOT require deep discharging. If your XB-490 is put into storage, re-charge its battery at least once every 30 days. Do not store your XB-490 in direct sunlight for an extended time. Store your XB-490 in a dry place. Exposing your XB-490 to rain, snow, or other precipitation may result in damage. - Page 7 Product features...
-
Page 8: Specifications
Product Specifications 1. Wire diagram 2. Specifications Battery Voltage 48Volt Dc,14Ah Motor Wattage 500W Wheel Size 18 inch Top Speed 20 MPH Charging Time 6-8h Distance of full charge 25 – 35 miles Battery charging cycles Around 350 times Max rider weight 350 Lbs Two rider Left and Right Indicators... -
Page 9: Operation
Operation Your new Electric Bicycle/scooter is a revolutionary new transport product using a sealed lead acid batteries and a super high efficiency electric hub motor designed to ASSIST in the propulsion of you and your bicycle. It is important to note the following riding guidelines to ensure you get the best possible experience from your electric bicycle. -
Page 10: Battery Care And Maintenance
Battery Care and Maintenance Removing the battery box Removing the battery is useful to transport the Bicycle to reduce lifting weight or to charge in a location where the bicycle may not fit etc. 1. To remove the battery box from the bike, unlock the seat first and then open it, see figure 1-1 figure1-1 2. -
Page 11: Battery Charging
4) Plug the end of the charger’s cord into the socket of the adaptor first. Next connect the adaptor to the XB-490 (the charger port in located below the front of the seat). Then plug the chargers’ AC cords into the wall outlet. -
Page 12: Maintenance
Maintenance ----Basic 1. There are two fuses in the bike. The one is located in the battery box. , The second fuse is a sealed fuse on the controller. 2. Clean Chain Regularly. 3. Ensure Tires are inflated to 35 PSI. 4. -
Page 13: Assembly And Setup
Rear Wheel Assembly Instructions 1. First, remove the two screws that hold the plastic plates on both sides of rear wheel, then take off the rear fork fender, See figure 1-5: figure 1-5 2. Remove the screw from the end of Brake Cable, and then remove the three screws , See figure 1-6: figure 1-6 3. - Page 14 Front Wheel Removal Instructions 1. Remove the two nuts from both sides of the front wheel. See figure 1-10 figure 1-10 2. Remove the screw from the end of Brake Cable, and then pull the cable out. Then remove the axle and spacer as shown below in figure 1-12 &...
-
Page 15: Steps To Startup
Other Helpful Instructions Pedals 1. Use a pedal wrench of 16mm spanner to tighten pedals. 2. Check and tighten pedal crank bolts with 14mm socket. Tires 1. Inflate tire using a pump to 30-35psi. Remember lower tire pressures will negatively impact performance by causing too much resistance. - Page 16 HANDLE BAR ASSEMBLY 1. Remove the bolt from the base of the handlebars. See bolt below: 2. Insert the handlebars in place 3. Next, put the black nut in the same place where you can see when you take out the bike from the carton, and then make sure the bolt is in the right place , see below picture, and then tighten it 4.
- Page 17 Final Check 1. Check all nuts screws and bolts including ones not mentioned in the set up, for tightness and fit before riding. 2. Dispose of packaging thoughtfully and responsibly. Recycle cardboard. 3. Ensure charger is functioning both connected to bicycle and directly to the battery pack when removed from bicycle.
