Scan for full manual
Step 1: Check what's in the box
1

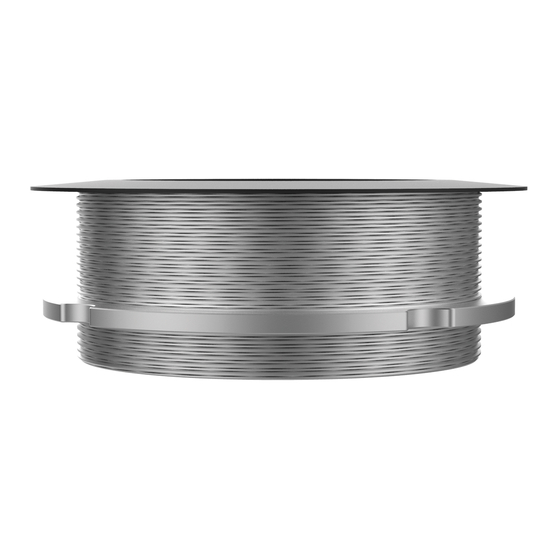

RTBUS-4C
Round Table Mount
Cable Pass-Through
1 Quick start guide
Step 2: Get to know your RTBUS-4C
#
Feature
1
Enclosure
2
Locking Ring
3
Inner Plate
4
Cable Slot
5
Inner Plate Screws (4)
6
Cable Bushings
RTBUS-4C Quick Start
RTBUS-4C Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/RTBUS-4C
upgrades are available.
RTBUS-4C
for the first time.
to download the latest user manual and check if firmware
4 Cable bushings
P/N: 2 9 0 0 - 3 0 1 3 4 5 QS
1 Locking screw for locking ring
Rev: 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kramer RTBUS-4C
Summary of Contents for Kramer RTBUS-4C
- Page 1 Step 1: Check what’s in the box RTBUS-4C Round Table Mount 4 Cable bushings 1 Locking screw for locking ring Cable Pass-Through 1 Quick start guide Step 2: Get to know your RTBUS-4C Feature Enclosure Locking Ring Inner Plate Cable Slot Inner Plate Screws (4)
- Page 2 Step 3: Mount RTBUS-4C To mount RTBUS-4C: Cut a hole in the table 115mm in diameter. Remove the four inner plate screws and remove the inner plate from the enclosure. Run the cables under the table, through the locking ring, and up through the hole in the table.
