Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: FC-46xl HDMI Audio De-Embedder P/N: 2900-000626 Rev 8... -
Page 3: Table Of Contents
Contents Introduction Getting Started Achieving the Best Performance Recycling Kramer Products Overview Defining the FC-46xl Connecting the FC-46xl Technical Specifications Figures Figure 1: FC-46xl HDMI Audio De-Embedder Figure 2: Connecting the FC-46xl HDMI Audio De-Embedder FC-46xl – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer FC-46xl away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
HDMI input or from the HDMI output Audio Return Channel to S/PDIF, TOSLINK® and analog audio outputs simultaneously. The FC-46xl lets you connect your HDMI source to an HDMI display and enjoy high-quality digital audio at the same time (for example, when using a high-quality AV receiver). -
Page 8: Defining The Fc-46Xl

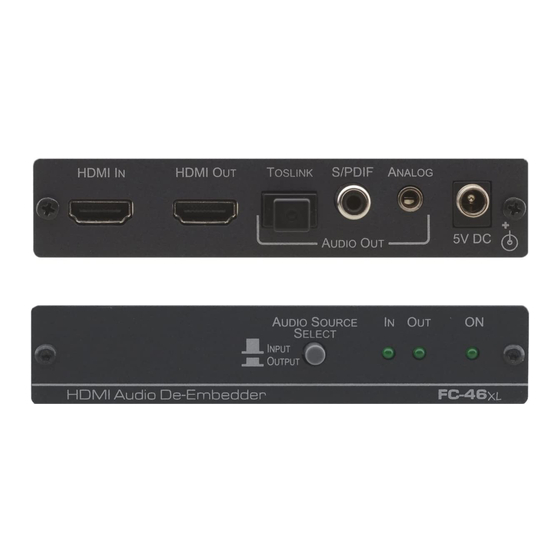

Defining the FC-46xl Figure 1 defines the FC-46xl HDMI Audio De-Embedder. Figure 1: FC-46xl HDMI Audio De-Embedder Feature Function AUDIO SOURCE INPUT Release to select audio from HDMI IN SELECT Button OUTPUT Press in to select audio from HDMI OUT TV... -
Page 9: Connecting The Fc-46Xl
Connecting the FC-46xl Always switch off the power to each device before connecting it to your FC-46xl. After connecting your FC-46xl, connect its power and then switch on the power to each device. To connect the FC-46xl as illustrated in the example in Figure 1. -
Page 10: Figure 2: Connecting The Fc-46Xl Hdmi Audio De-Embedder
Figure 2: Connecting the FC-46xl HDMI Audio De-Embedder FC-46xl - Connecting the FC-46xl... -
Page 11: Technical Specifications
12.4cm x 7cm x 2.4cm (4.9" x 2.8" x 0.94") W, D, H WEIGHT: 0.4kg (0.88lbs) approx. INCLUDED ACCESSORIES: Power supply OPTIONS: Kramer 10-Port Universal 5V Power Supply VA-100P-5 RK-3T 19” rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com FC-46xl - Technical Specifications... - Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
