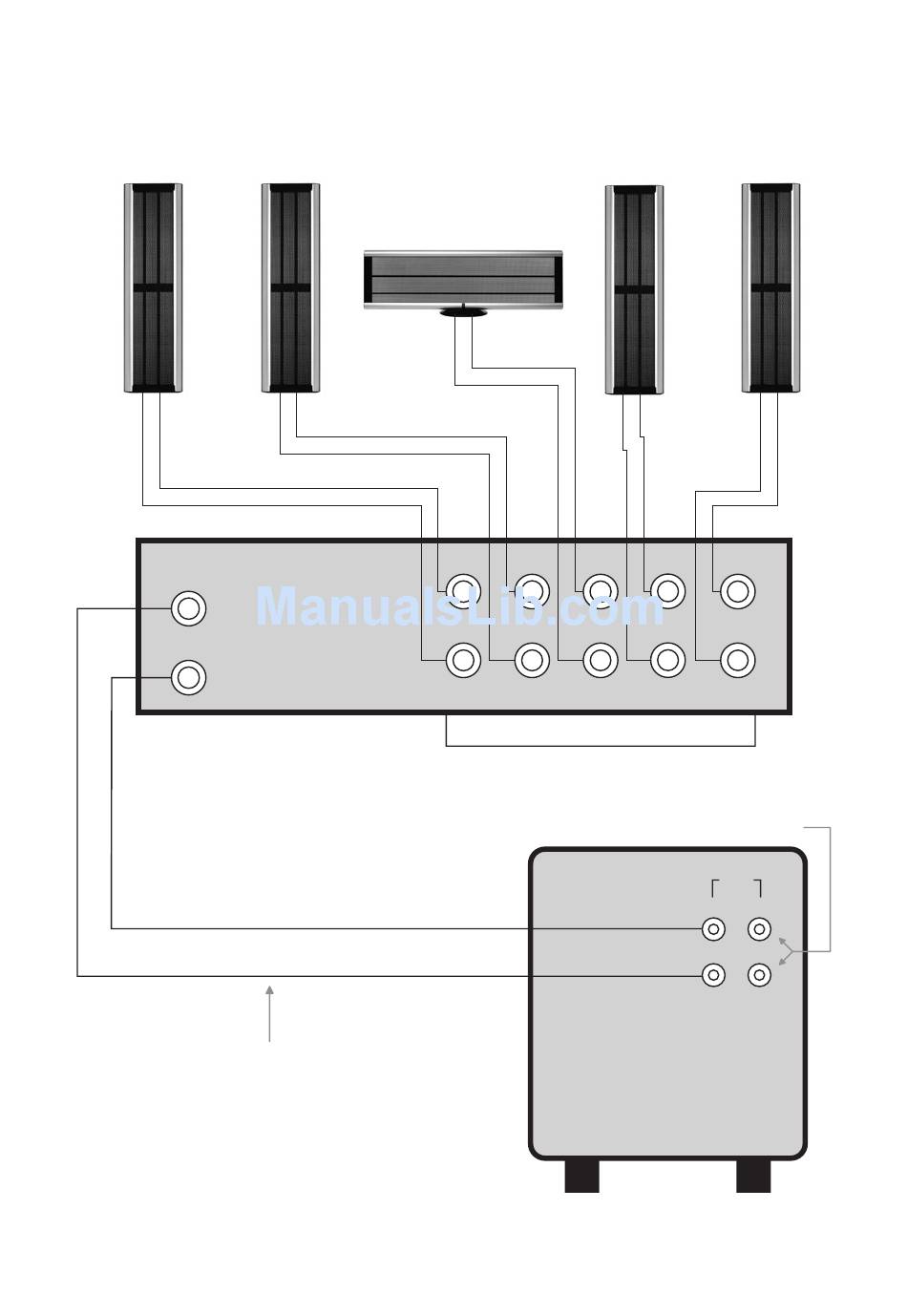

INSTALLING THE FINAL SOUND MODEL F1000i HOME THEATER SYSTEM
Figure 1
Flat Panel Front Speakers
B
Audio / Video Receiver
Audio Pre-out
Center Pre-out
Subwoofer Pre-out
Optional for Added
Dialogue warmth
16
Flat Panel Center Speakers
B
L
Contents Copyright 2006 Final Sound Solutions.
Flat Panel Rear Speakers
B B
R
Front
Center
Loudspeakers Outputs
used to connect to a second subwoofer
Final Sound
Subwoofer
B
L
R
Rear
Line
In
Out
L
R
L
R
