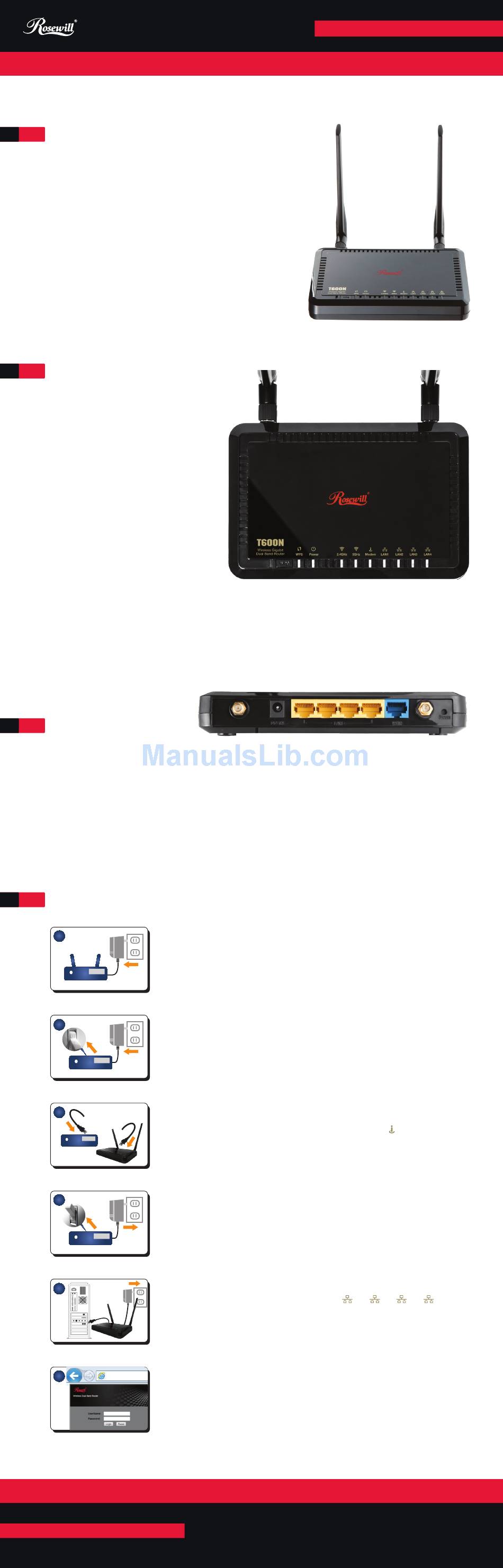

Rosewill T600N Quick Setup Manual

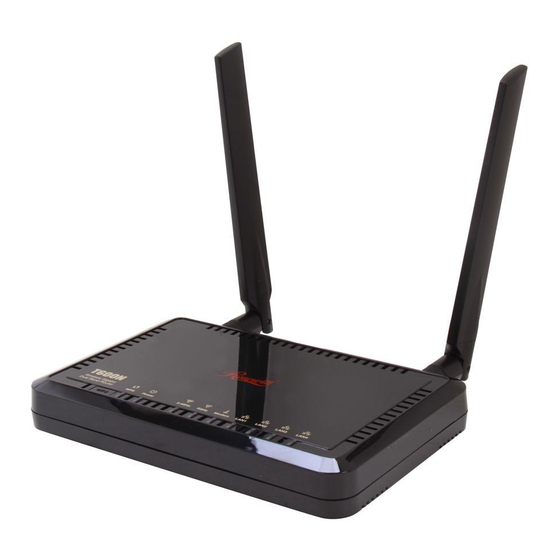

PRODUCT OVERVIEW

A

Package Content

- T600N Wireless Dual Band Gigabit Router
- Power Adapter for T600N
- Optimal Designed 5dBi 2.4GHz High Gain Antenna
- Quick Installation Guide
- Resource CD: User Manual, Quick Installation Guide
- RJ45 Cables
Note
- Make sure that the package contains the above items.
If any of the listed items are damaged or missing,
please contact with your distributor.
- Using a power supply with a different voltage rating than
the one included with the T600N may cause damage
and void the warranty for this product.
B

LED Indicator

(From Left to Right)
• WPS Button: Push and hold for 3
seconds to enable WPS push
button configuration.
• WPS: Wi-Fi Protected Setup activity.
When the WPS mode
is activated the WPS LED blinks as it
awaits a connection.
• Power: Indicates when the Router is
powered on. The LED will remain on.
• 2.4 GHz: Blinks rapidly when the
wireless data traffic is transmitted or
received over the 2.4GHz wireless
network.
• 5GHz: Blinks rapidly when wireless
data traffic is transmitted or received
over the 5GHz wireless network.
• Modem: Indicates when modem is connected to the modem port on the back of the Router.
The LED blinks rapidly when data is transmitted or received.
• LAN: Indicates when a networking device is connected to a wired port on the back of the Router.
The LED blinks rapidly when wired data traffic is transmitted or received.
C

Back Panel Indicator

(From Left to Right)
• DC-IN: Power Adapter port. Output: 12V 1.25A, Input: 100-240v
• LAN: RJ-45 ports for connecting to wired computers or other network devices.
(LAN 4~1 from left to right)
• Modem: RJ-45 port for connecting to your Broadband Modem
• RESET: Push once to reboot the Router. Hold down for 5-10 seconds to reset the Router back
to factory settings.

QUICK SETUP GUIDE

D

Connecting Guide

1
2
3
4
5
6
http://192.168.0.1
T600N
If you have question, please feel free to contact us
T600N - Wireless Dual Band Gigabit Router
PLEASE READ THIS SIDE FIRST
Disconnect and Unplug your Existing Router
► Disconnect the RJ45 Cable in your existing router from your computer,
broadband modem, and the power adapter from the power outlet.
Power Off your Modem and Remove the Backup Battery if any
► Remove the power adapter to power off your modem. Remove the
modem's backup battery if your modem has one.
Connecting the T600N Wireless Router to your modem
► Plugs one end of your Ethernet Cable to the modem
and the other end to your T600N's "modem" port.
► Since T600N supports Gigabit Network so it is recommended to use a
Cat 5 RJ45 Cable to fully utilize your T600N.
Power on the Modem
► Insert the backup battery back to your modem, and plug back your
modem's power adapter.
► Please wait 1~2 minutes the modem's initialization to complete.
Power on your T600N Wireless Router and connect to your Computer
► Connects one end of the Ethernet Cable
to your T600N's LAN port
► Connects the other end of the Ethernet Cable to your Computer or Note book.
► Plug in the power adapter of your T600N and power on your computer if it
haven't turn on.
Open your Web Browser and type in "192.168.0.1" in the address bar
► When prompted, Enter the User Name and Password
User Name: admin
Password:
T600N - Wireless Dual Band Gigabit Router
admin
Modem
LAN1 LAN2 LAN3 LAN4
Support: techsupport@rosewill.com
Call Center: (800) 575-9885
Web: http://www.rosewill.com
