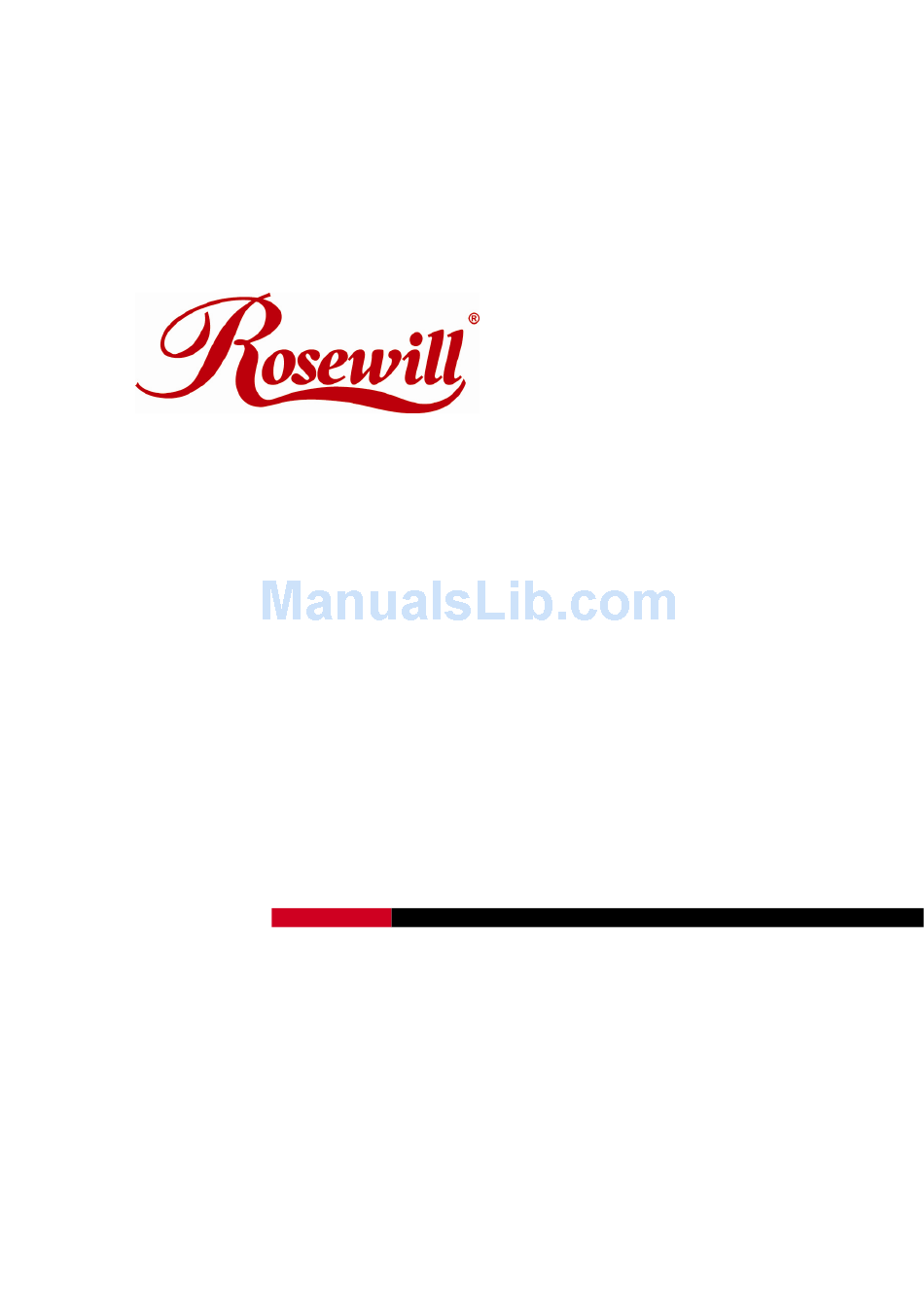

- Page 1 Wireless Router RNX-GX4 Quick Installation Guide...
-
Page 2: You Will Need
RNX-GX4 CHECK BEFORE YOU PROCESS: Thank you very much for choosing Rosewill’s Wireless products. Please carefully go through this Quick Installation Guide (QIG) before using this wireless router. Please note that this QIG only provides you with basic connection guide. If you need more advance setup, please refer to your user manual or link to www.rosewill.com... -
Page 3: Installation Process
Wireless Router RNX-GX4 Wireless Router LED light indication: Description System function Indication Light WAN Port Indication Light LAN Port Indication Lights INSTALLATION PROCESS: 1. Device Connection Diagram: WAN Port: For connecting to your modem. LAN Port: For connecting to you computer. Adapter Port: For connecting to the power adapter. - Page 4 Wireless Router RNX-GX4 Quick Installation Guide 2. Upon opening Network Connections, right click on your Local Area Connection and select Properties.
-
Page 5: Wireless Router Setup
Wireless Router RNX-GX4 3. Left Click on Internet Protocol (TCP/IP) in the new popup window, and select Properties. 4. When Internet Protocol (TCP/IP) Properties popup, first click on Use the following IP address. Then type in as follows: IP address: 192.168.1.xxx (1<xxx<255) Subnet mask: 255.255.255.0 Default gateway: 192.168.1.1 Then click on Use the following DNS server addresses:... - Page 6 Wireless Router RNX-GX4 Quick Installation Guide 1. Open your Internet browser, type in http://192.168.1.1 in Address, and press Enter. 2. When a new window pop-up, please type in User Name: admin, Password: guest; then click OK. 3. When first entered the RNX-GX4’s web management page, you will see “Convenient Setup”...
- Page 7 Wireless Router RNX-GX4 2. PPPoE user (ADSL): PPPoE method is mostly for DSL internet users. When selecting this method, you will need to enter your PPPoE Username and PPPoE Password provided by your ISP provider, then click “Save Settings”. PPPoE Username and Password is provided by your ISP provider, they are not the same as the login name and password when entering to the wireless router’s web management page.
- Page 8 This means your internet connect is now ready to use. Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product. Quick Installation Guide...
