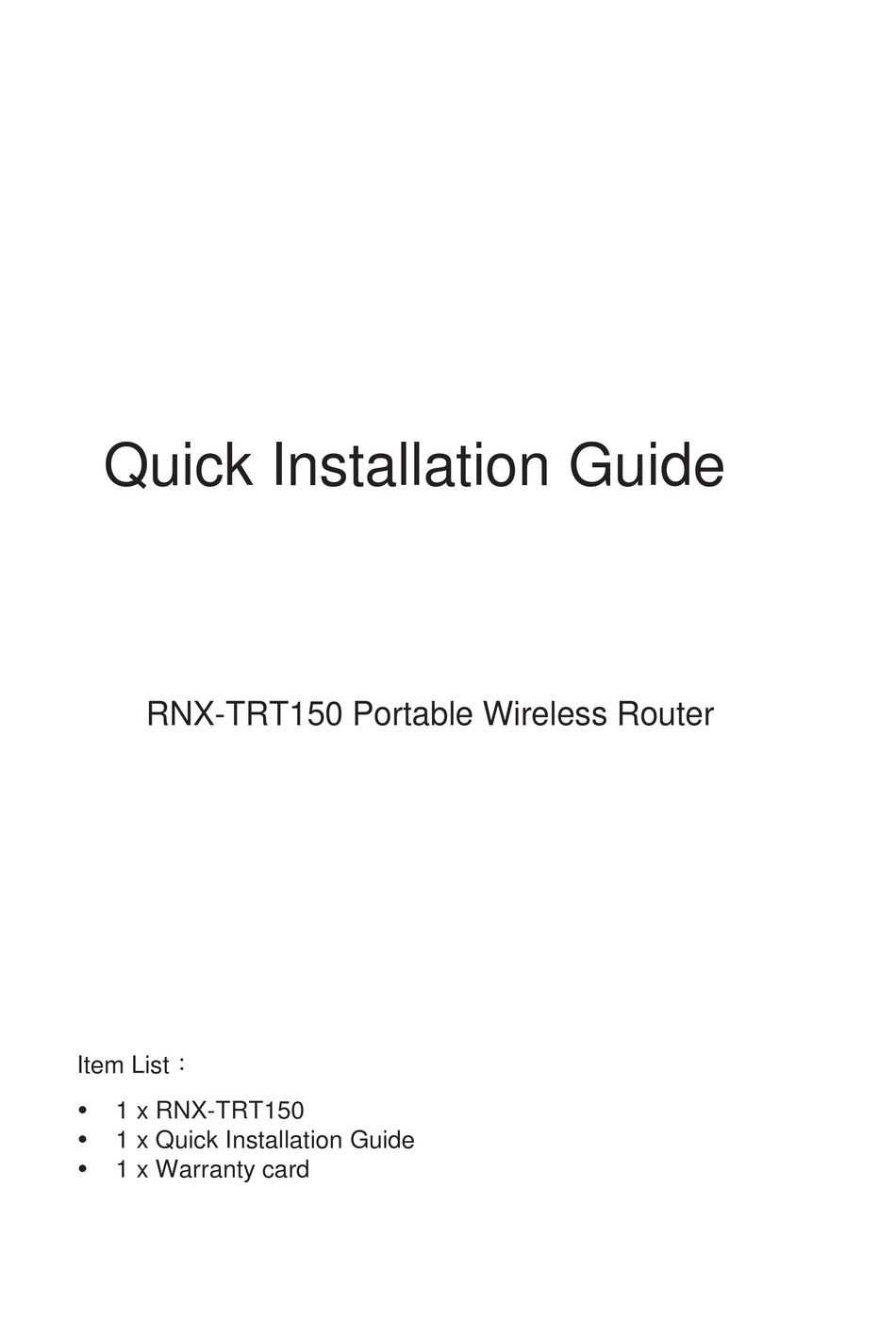

Page 1: Quick Installation Guide

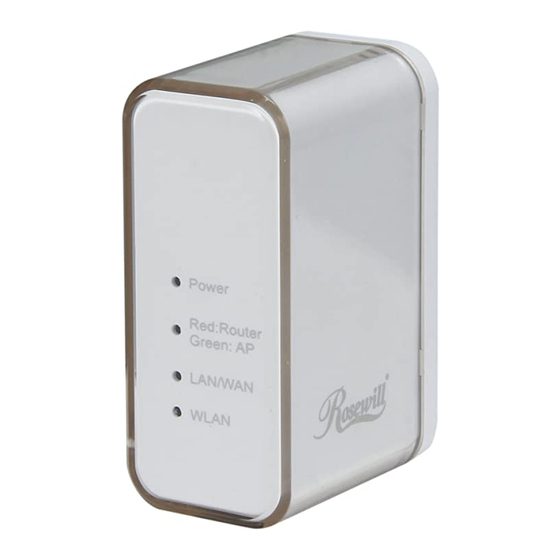

Quick Installation Guide RNX-TRT150 Portable Wireless Router Item List： 1 x RNX-TRT150 1 x Quick Installation Guide 1 x Warranty card... -
Page 2: Hardware Connection
Hardware Connection 1. Plug RNX-TRT150 into a standard power outlet. 2. Connect one side of RJ-45 cable to RNX-TRT150 and the other side to your device or wirelessly connect your device to RNX-TRT150. 3. Then you can start the setup wired/wirelessly. - Page 3 Three Applications Modes 1．Router mode RNX-TRT150 is a wireless router you can share your WiFi at home by connecting to your ADSL Modem with RJ45 cable. Computers wired or wirelessly connected to RNX-TRT150 can access to the Internet, and IP...
- Page 4 Rosewill RNX-TRT150 2．AP (Wireless Access Point) Mode RNX-TRT150 can also be used as a wireless access point (AP). This mode can be simply set as bridge mode, connecting the network cable, and then share internet to devices wirelessly.
- Page 5 Rosewill RNX-TRT150 3 - USB Power Supply Mode RNX-TRT150 is a standard USB charger as well; when the device is plugged into a wall outlet which provides power output with 5V DC. It can charge your devices with USB interface, and it is Plug and Play.
- Page 6 Rosewill RNX-TRT150 Set up and Correctly Configured TCP/IP Parameters (Before setting, please make sure that your devices are installed wireless card. We here take Windows7 as an example for setting up) 1．Wireless Network Settings： a. Click “Start – Control Panel > Network and Internet > Network and Sharing Center >...
- Page 7 Return to the previous screen, click “OK” to save the settings. 2. Wireless network connection a. Network card installed, the icon appears bottom right corner of the desktop Click on the icon b. In the pop-up list, select the “RNX-TRT150” to connect the wireless network, and click "Connect";...
- Page 8 Rosewill RNX-TRT150 c. When the screen shows "Connected"; the computer’s successfully connected to the network. Note: The default is not wireless encrypted. We strongly suggest users build encryption later for safe wireless network.
- Page 9 Rosewill RNX-TRT150 Login the Router Management Interface a. Open the IE browser，Type http://192.168.2.1 in the address bar, press Enter. The pop-up login window “Username: admin; Password: admin”; then click "OK"; b. Get into the main interface of the router; c. Select the corresponding application mode on the main interface of the...
- Page 10 Rosewill RNX-TRT150 Route Mode - PPPoE Dial-up Mode Setup Guide ①. While router mode is selected, click “PPPoE”, enter the username and password provided by your ISP, and click "Next" to enter the appropriate settings.
- Page 11 Rosewill RNX-TRT150 ②. Configure the wireless SSID and select the encryption method and enter your wireless password; click "Apply"; Save the configuration and restart.
- Page 12 "Apply" ② Save the configuration and wait for restart. Note: If you want to enter interface management of RNX-TRT150, just type the PC's IP as the default 192.168.2.x, static IP address or see IP address your front wireless router assigned.
- Page 13 Rosewill RNX-TRT150 Details Mode Setup Guide d. In the main page, click “Details”; then click “Basic” for further LAN setting. According to the network environment, it can modify the LAN IP address. It shows the default value below. e. In the main page, click “Details”, and then “Tools”. Here you can modify...
- Page 14 Rosewill RNX-TRT150 f. In the main page, click “Details”, and then “Tools”. Here you can restore the factory default settings, or update latest firmware. g. In the main page click on “Details” and click “Status”, enter the page you can see the WAN, LAN, WLAN connection status and other information.
- Page 15 Rosewill RNX-TRT150 1. How RNX-TRT150 restore to factory Settings? A：In the case of RNX-TRT150 powered, press and hold the back of the Reset button and hold it for 8 seconds and then release. Note: Reset after the original configuration information will be lost, the factory default login IP: 192.168.2.1, the default user name and password: admin, the...
