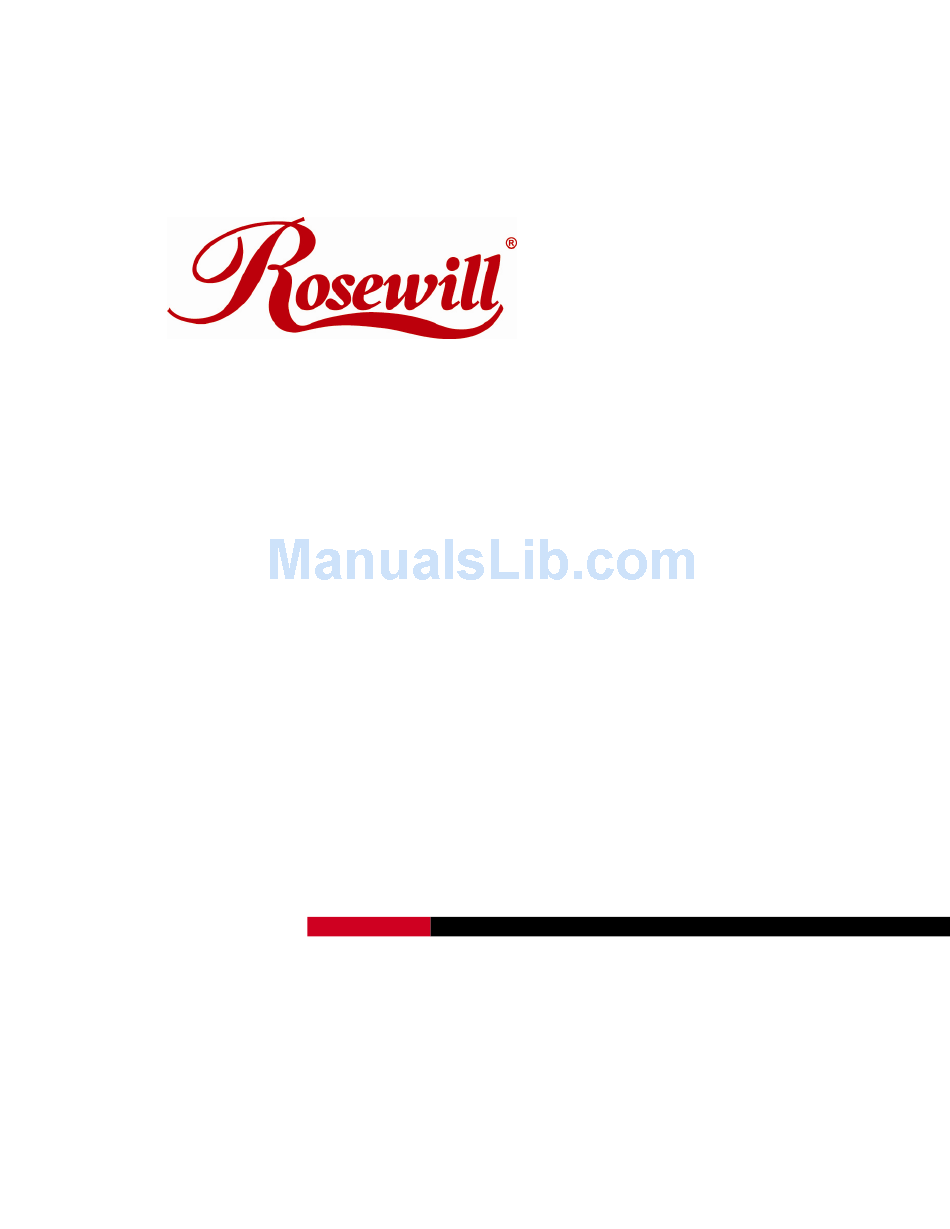

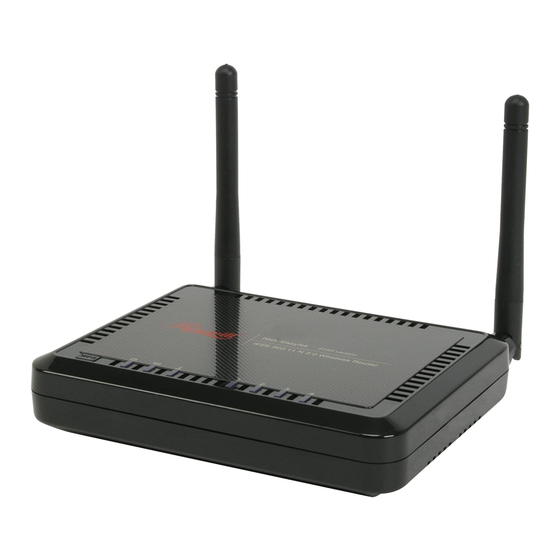

  • Page 1 Wireless Router RNX-EasyN4 User Manual...

  • Page 2: Table Of Contents

    NETWORK + SYSTEM REQUIREMENTS... 9 RNX-EASYN4 PLACEMENT... 9 SETUP LAN, WAN... 10 PC NETWORK ADAPTER SETUP (WINDOWS XP) ...11 BRING UP RNX-EASYN4... 13 SMART WIZARD ... 13 INITIAL SETUP RNX-EASYN4... 24 AP ROUTER MODE ... 26 REPEATER MODE ... 90 APPENDIX A –...

  • Page 3: Introduction

    Introduction Congratulations on your purchase of RNX-EASYN4 Wireless Network Broadband Router. RNX-EASYN4 is compliant with draft 802.11n v2.0 up to 6 times faster than standard 802.11g based routers while still being compatible with 802.11g & 802.11b gadgets. RNX-EASYN4 is not only a Wireless Access Point, but also doubles as a 4-port full-duplex Switch that connects your wired- Ethernet devices together at incredible speeds.

  • Page 4: Key Features

    Wireless Router RNX-EasyN4 1 Key Features Features Incredible Data Rate up to 300Mbps** IEEE 802.11n Compliant and backward compatible with 802.11b/g Four 10/100 Mbps Fast Switch Ports (Auto-Crossover) Firewall supports, DMZ, MAC Filter, IP Filter, URL Filter, ICMP Blocking, SPI,...

  • Page 5: Package Contents

    Wireless Router RNX-EasyN4 2 Package Contents Open the package carefully, and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped back in its original package.

  • Page 6: Product Layout

    Wireless Router RNX-EasyN4 User Manual 3 Product Layout...
  • Page 7 Wireless Router RNX-EasyN4 User Manual Description POWER Lights up when powered ON. Blinks on TEST/RESET WLAN Lights up in ORANGE when WLAN is enabled. Blinks on traffic LAN PORT ACTIVY Blinks on traffic for specific LAN PORT 100 Mbps Lights up when 100 Mbps data rate...
  • Page 8 Wireless Router RNX-EasyN4 User Manual Click this button to start WPS function. DC IN Power connector, connects to DC 12V Power Adapter LAN1 ~ 4 Local Area Network (LAN) ports 1 to 4 INTERNET Wide Area Network(WAN) port...

  • Page 9: Network + System Requirements

    Few Ethernet compatible CAT5 cables. 5 RNX-EASYN4 Placement You can place RNX-EASYN4 on a desk or other flat surface, or you can mount it on a wall. For optimal performance, place your Wireless Broadband Router in the center of your office (or your home) in a location that is away from any potential source of interference, such as a metal wall or microwave oven.

  • Page 10: Setup Lan, Wan

    6 Setup LAN, WAN LAN connection: Connect Ethernet cable between your PC/Notebook LAN port & one of the 4 available LAN ports on RNX-EASYN4. WAN connection: Connect Ethernet cable between WAN ports of your ADSL/CABLE modem & INTERNET port of RNX-EASYN4. Make sure your ADSL/CABLE modem is working well.

  • Page 11: Pc Network Adapter Setup (Windows Xp)

    Wireless Router RNX-EasyN4 7 PC Network Adapter setup ( • Enter [Start Menu] • Select [Local Area Connection]) icon=>select [properties] select [Control panel] select [Network]. User Manual Windows XP...
  • Page 12 Wireless Router RNX-EasyN4 • Select [Internet Protocol (TCP/IP)] =>Click [Properties]. • Select the [General] tab. RNX-EASYN4 supports [DHCP] function, please select both [Obtain an IP address automatically] and [Obtain DNS server address automatically]. User Manual...

  • Page 13: Bring Up Rnx-Easyn4

    Microsoft Windows compatible PC/Notebook with UPnP enabled network adapter • CAT 5 network cable(s), RJ45 port on PC/Notebook. STEP 1 Connect RNX-EASYN4 WAN port & your modem WAN port with RJ45 cable. STEP 2 Power up RNX-EASYN4.POWER led on front panel lights up & remains stable. STEP 3 Connect RNX-EASYN4 LAN port &...
  • Page 14 Wireless Router RNX-EasyN4 User Manual Click Setup Wizard to setup your RNX-EASYN4 router. Click User Manual to launch smart wizard user manual. Click Adobe Reader to setup Adobe Acrobat reader on your PC/Notebook. Click EXIT anytime you want to abort.
  • Page 15 Wireless Router RNX-EasyN4 User Manual Click <Next> to proceed. Click <Exit> to abort.
  • Page 16 Wireless Router RNX-EasyN4 User Manual RNX-EASYN4 should be setup as depicted above. Make sure your DSL/CABLE modem is setup and working. Else take the help of your internet service provider. Click <Next> to proceed.
  • Page 17 Wireless Router RNX-EasyN4 User Manual Check the MODEM and RNX-EASYN4 connection. It should be as shown below. Check power connection for modem as well as RNX-EASYN4. Make sure antenna is connected to rear panel of RNX-EASYN4. Click <Next> to proceed.
  • Page 18 Wireless Router RNX-EasyN4 User Manual Notice the LED that should be light up at this stage. If not, check your procedures again. Click <Next> to configure WAN & Wireless settings.
  • Page 19 Wireless Router RNX-EasyN4 User Manual User name and password are admin/admin. Click <OK>. Your default browser will connect to RNX-EASYN4 Web Server http://192.168.0.1...
  • Page 20 Wireless Router RNX-EasyN4 User Manual Click <Next> to enter mode selection. Select the mode that RNX-EASYN4 is going to be and set its configurations. AP Router mode does not enable WAN interface, Setup Wizard will skip WAN Configuration.
  • Page 21 Wireless Router RNX-EasyN4 User Manual Click <Next> to automatically detect your Internet Network settings. You could choose your service type or select Others to setup WAN configurations manually. Smart Wizard has detected DHCP client. Configure the host name and MAC...
  • Page 22 Wireless Router RNX-EasyN4 User Manual Smart Wizard has finished setting up WAN Configuration. Click <Next> to proceed. Enter the name for your wireless network (SSID) and security key Click <Next> to proceed...
  • Page 23 Wireless Router RNX-EasyN4 User Manual To apply the entire configuration, click <Reboot>. NOTE: After Wireless settings are applied, you need to connect from your WLAN client with the security settings you just finished configuring. Remember the type of security & security key.

  • Page 24: Initial Setup Rnx-Easyn4

    Wireless Router RNX-EasyN4 User Manual 10 Initial Setup RNX-EASYN4 RNX-EASYN4 uses web-interface for configuration to be accessed through your web browser, such as Internet Explorer or Netscape Communicator. - LOGIN Procedure 1. OPEN your browser (e.g. Internet Explorer). 2. Type http://192.168.0.1...
  • Page 25 Wireless Router RNX-EasyN4 User Manual 3. Click <OK> to navigate into RNX-EASYN4 configuration home page. 4. You will see the home page of RNX-EASYN4 as follows.

  • Page 26: Ap Router Mode

    & so forth. Once you click on <OK> button to go to the requested page, you can see the status page of the RNX-EASYN4. System: You can see the UP time, hardware information, serial number as well as firmware version information.
  • Page 27 Wireless Router RNX-EasyN4 WAN Settings: This section displays whether the WAN port is connected to a Cable/DSL connection. It also displays the router’s WAN IP address, Subnet Mask, and ISP Gateway as well as MAC address, the Primary DNS. LAN Settings: This section displays the Broadband router LAN port’s current LAN &...
  • Page 28 Wireless Router RNX-EasyN4 User Manual WLAN Settings: This section displays the current WLAN configuration settings you’ve configured in the Wizard / Basic Settings / Wireless Settings section. Wireless configuration details such as SSID, Security settings, BSSID, Channel number, mode of operation...
  • Page 29 Wireless Router RNX-EasyN4 - LAN The LAN Tabs reveals LAN settings which can be altered at will. If you are an entry level user, try accessing a website from your browser. If you can access website without a glitch, just do not change any of these settings.
  • Page 30 Wireless Router RNX-EasyN4 LAN IP IP address: 192.168.0.1. It is the router’s LAN IP address (Your LAN clients default gateway IP address). It can be changed based on your own choice. IP Subnet Mask: 255.255.255.0 Specify a Subnet Mask for your LAN segment.
  • Page 31 Wireless Router RNX-EasyN4 Start IP: This will be the beginning of the pool of IP addresses available for client devices. End IP: This will be the end of the pool of IP addresses available for client devices. Domain name: The Domain Name for the existing or customized network.
  • Page 32 Wireless Router RNX-EasyN4 User Manual - Schedule This page allows user to set up schedule function for Firewall and Power Saving...
  • Page 33 Wireless Router RNX-EasyN4 User Manual Add schedule, edit schedule options to allow configuration of firewall and power savings services. Fill in the schedule and select type of service. Click <Apply> to implement those settings.

  • Page 34: Event Log

    Wireless Router RNX-EasyN4 The schedule table lists the pre-schedule service-runs. You can select any of them using the check box. - Event Log View operation event log. This page shows the current system log of the Broadband router. It displays any event occurred after system start up. At the bottom of the page, the system log can be saved <Save>...
  • Page 35 Wireless Router RNX-EasyN4 User Manual - Monitor Show histogram for network connection on WAN, LAN & WLAN. Auto refresh keeps information updated frequently.
  • Page 36 Wireless Router RNX-EasyN4 User Manual - Language This Wireless Router support multiple language of web pages, You could select your native language here.
  • Page 37 Wireless Router RNX-EasyN4 User Manual Wizard Click Wizard to configure the Broadband Router. Setup wizard will now be displayed; check that the modem is connected and click <Next>. The details please refer to Smart Wizard.
  • Page 38 Wireless Router RNX-EasyN4 INTERNET - Status This page shows the current Internet connection type and status - Dynamic IP Use the MAC address when registering for Internet service, and do not change it unless required by your ISP. If your ISP used the MAC address of the Ethernet card as an identifier, connect only the PC with the registered MAC address to the broadband router and click the <Clone MAC Address>...
  • Page 39 Wireless Router RNX-EasyN4 User Manual Host Name: This is optional. MAC address: The default value is set to the WAN’s physical interface of the broadband router. - Static IP If your ISP Provider has assigned a fixed IP address, enter the assigned IP address,...
  • Page 40 Wireless Router RNX-EasyN4 User Manual - Point-to-Point over Ethernet Protocol (PPPoE)
  • Page 41 Wireless Router RNX-EasyN4 Login / Password: Enter the PPPoE username and password assigned by your ISP Provider. Service Name: This is normally optional. Maximum Transmission Unit (MTU): This is the maximum size of the packets. Type: Enable the Auto-reconnect option to automatically re-establish the connection when an application attempts to access the Internet again.

  • Page 42: Wireless Settings

    Wireless Router RNX-EasyN4 Wireless Settings - Basic In basic setting page, you can set wireless Radio, Mode, Band, SSID, and Channel. Radio: You can turn on/off wireless radio. If wireless Radio is off, you cannot associate with AP through wireless.
  • Page 43 Wireless Router RNX-EasyN4 2.4 GHz(B): If all your clients are 802.11b, select this one. 2.4 GHz(N): If all your clients are 802.11n, select this one. 2.4 GHz(B+G): Either an 802.11b or an 802.11g wireless devices are in your environment. 2.4 GHz(G): If all your clients are 802.11g, select this one.

  • Page 44: Wds With Ap Router

    Wireless Router RNX-EasyN4 - WDS with AP Router Wireless Distribution System, a system that enables the wireless interconnection of access point, allows a wireless network to be expended using multiple access points without a wired backbone to like them. Each WDS APs need setting as same channel and encryption type.
  • Page 45 Wireless Router RNX-EasyN4 - Advanced This tab allows you to set the advanced wireless options. The options included are Authentication Type, Fragment Threshold, RTS Threshold, Beacon Interval, and Preamble Type. You should not change these parameters unless you know what effect the changes will have on the router.
  • Page 46 Wireless Router RNX-EasyN4 Beacon Interval: is the interval of time that this wireless router broadcasts a beacon. A Beacon is used to synchronize the wireless network. DTIM Period: Enter a value between 1 and 255 for the Delivery Traffic Indication Message (DTIM).
  • Page 47 Wireless Router RNX-EasyN4 - Security This Access Point provides complete wireless LAN security functions, included are WEP, IEEE 802.1x, IEEE 802.1x with WEP, WPA with pre-shared key and WPA with RADIUS. With these security functions, you can prevent your wireless LAN from illegal access.
  • Page 48 WMM: Wi-Fi MultiMedia if enabled supports QoS for experiencing better audio, video and voice in applications. Encryption: When you choose to disable encryption, it is very insecure to operate RNX-EASYN4. Enable 802.1x Authentication IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this Access Point before accessing the wireless LAN.
  • Page 49 Wireless Router RNX-EasyN4 Authentication Type: There are two authentication types: "Open System" and "Shared Key". When you select "Open System", wireless stations can associate with this wireless router without WEP encryption. When you select "Shared Key", you should also setup a WEP key in the "Encryption" page. After this has...
  • Page 50 Wireless Router RNX-EasyN4 input 10-digits Hex values (in the "A-F", "a-f" and "0-9" range) or 64-bit WEP: 5-digit ASCII character as the encryption keys. input 26-digit Hex values (in the "A-F", "a-f" and "0-9" range) or 128-bit WEP: 13-digit ASCII characters as the encryption keys.
  • Page 51 Wireless Router RNX-EasyN4 WPA-Radius Encryption Wi-Fi Protected Access (WPA) is an advanced security standard. You can use an external RADIUS server to authenticate wireless stations and provide the session key to encrypt data during communication. It uses TKIP or CCMP (AES) to change the encryption key frequently. Press <Apply>...

  • Page 52: Mac Address Filtering

    Wireless Router RNX-EasyN4 User Manual - MAC Address Filtering This wireless router supports MAC Address Control, which prevents unauthorized clients from accessing your wireless network. Enable wireless access control: Enable the wireless access control function...
  • Page 53 Wireless Router RNX-EasyN4 Adding an address into the list Enter the "MAC Address" and "Comment" of the wireless station to be added and then click <Add>. The wireless station will now be added into the "Current Access Control List" below. If you are having any difficulties filling in the fields, just click "Clear"...
  • Page 54 Wireless Router RNX-EasyN4 WPS: Check the box to enable WPS function and uncheck it to disable the WPS function. WPS Current Status: If the wireless security (encryption) function of this wireless Self Pin Code: This is the WPS PIN code of the wireless router. You may need this information when connecting to other WPS-enabled wireless devices.

  • Page 55: Client List

    Wireless Router RNX-EasyN4 Authentication Mode: It shows the active authentication mode for the wireless connection. Passphrase Key: It shows the passphrase key that is randomly generated by the wireless router during the WPS process. You may need this information when using a device which doesn’t support WPS.
  • Page 56 Wireless Router RNX-EasyN4 - Policy The Broadband router can allow you to set up the Wireless Access Policy. WAN Connection: Allow Wireless Client on specific SSID to access WAN port. Communication between Wireless clients: Allow Wireless Client to communicate with other Wireless Client on specific SSID.

  • Page 57: Firewall Settings

    Wireless Router RNX-EasyN4 User Manual Firewall Settings The Broadband router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attacks, and defending against a wide array of common Internet attacks. However, for applications that require unrestricted access to...
  • Page 58 Wireless Router RNX-EasyN4 User Manual Note: To enable the Firewall settings select Enable and click Apply - Advanced You can allow the VPN packets to pass through this Broadband router.
  • Page 59 Wireless Router RNX-EasyN4 User Manual - Demilitarized Zone (DMZ) If you have a client PC that cannot run an Internet application (e.g. Games) properly from behind the NAT firewall, then you can open up the firewall restrictions to unrestricted two-way Internet access by defining a DMZ Host. The DMZ function allows you to re-direct all packets going to your WAN port IP address to a particular IP address in your LAN.
  • Page 60 Wireless Router RNX-EasyN4 Enable DMZ: Enable/disable DMZ LAN IP Address: Fill-in the IP address of a particular host in your LAN Network that will receive all the packets originally going to the WAN port/Public IP address above. Click <Apply> at the bottom of the screen to save the above configurations.

  • Page 61: Mac Filter

    Wireless Router RNX-EasyN4 User Manual Ping of Death: Protections from Ping of Death attack. Discard Ping From WAN: The router’s WAN port will not respond to any Ping requests Port Scan: Protects the router from Port Scans. Sync Flood: Protects the router from Sync Flood attack.
  • Page 62 Wireless Router RNX-EasyN4 User Manual If you want to restrict users from accessing certain Internet applications / services (e.g. Internet websites, email, FTP etc.), and then this is the place to set that configuration. Access Control allows users to define the traffic type permitted in your LAN.
  • Page 63 Wireless Router RNX-EasyN4 Add PC MAC Address Fill in “LAN MAC Address” and <Description> of the PC that is allowed to access the Internet, and then click <Add>. If you find any typo before adding it and want to retype again, just click <Reset> and the fields will be cleared.
  • Page 64 Wireless Router RNX-EasyN4 - IP Filter Enable IP Filtering: Check to enable or disable IP Filtering. Deny: If you select “Deny” then all clients will be allowed to access Internet accept for the clients in the list below. Allow: If you select “Allow” then all clients will be denied to access Internet accept for the PCs in the list below.

  • Page 65: Url Filter

    Wireless Router RNX-EasyN4 Click <Apply> at the bottom of the screen to save the above configurations. - URL Filter You can block access to some Web sites from particular PCs by entering a full URL address or just keywords of the Web site.
  • Page 66 Wireless Router RNX-EasyN4 User Manual Remove URL Keyword If you want to remove some URL keywords from the "Current URL Blocking Table", select the URL keyword you want to remove in the table and then click <Delete Selected>. If you want remove all URL keywords from the table, click <Delete All> button. If you want to clear the selection and re-select again, just click <Reset>.

  • Page 67: Advanced Settings

    Wireless Router RNX-EasyN4 User Manual Advanced Settings - Network Address Translation (NAT) Network Address Translation (NAT) allows multiple users at your local site to access the Internet through a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall protection from hacker attacks and has the flexibility to allow you to map Private IP Addresses to Public IP Addresses for key services such as Websites and FTP.

  • Page 68: Port Mapping

    Wireless Router RNX-EasyN4 - Port Mapping Port Mapping allows you to re-direct a particular range of service port numbers (from the Internet / WAN Port) to a particular LAN IP address. It helps you to host servers behind the router NAT firewall.
  • Page 69 Wireless Router RNX-EasyN4 Add Port Mapping Fill in the "Local IP", “Type”, “Port Range” and "Description" of the setting to be added and then click "Add". Then this Port Mapping setting will be added into the "Current Port Mapping Table" below. If you find any typo before adding it and want to retype again, just click <Clear>...
  • Page 70 Wireless Router RNX-EasyN4 User Manual...
  • Page 71 Wireless Router RNX-EasyN4 Enable Port Forwarding: Enable or disable Port Forwarding. Description: The description of this setting. Local IP / Local Port: This is the LAN Client/Host IP address and Port number that Type: Select the port number protocol type (TCP, UDP or both). If you are unsure, then leave it to the default “both”...
  • Page 72 Wireless Router RNX-EasyN4 User Manual - Port Triggering (Special Applications) Some applications require multiple connections, such as Internet games, video Conferencing, Internet telephony and others. In this section you can configure the router to support multiple connections for these types of applications.
  • Page 73 Wireless Router RNX-EasyN4 Popular Applications: This section lists the more popular applications that require Add Port Triggering Fill in the "Trigger Port", "Trigger Type”, “Public Port”, "Public Type", "Public Port" and "Description" of the setting to be added and then Click <Add>.
  • Page 74 Wireless Router RNX-EasyN4 - Application Layer Gateway (ALG) You can select applications that need ALG support. The router will let the selected application to correctly pass through the NAT gateway. - UPNP With UPnP, all PCs in you Intranet will discover this router automatically. So, you don’t have to configure your PC and it can easily access the Internet through this...
  • Page 75 Wireless Router RNX-EasyN4 Enable/Disable UPnP: You can enable or Disable the UPnP feature here. After you - Quality of Service (QoS) QoS can let you classify Internet application traffic by source/destination IP address and port number. You can assign priority for each type of application and reserve bandwidth for it.
  • Page 76 Wireless Router RNX-EasyN4 User Manual get enough bandwidth. This can let you have a better experience in using critical real time services like Internet phone, video conference …etc. All the applications not specified by you are classified as rule “Others”. The rule with a smaller priority number has a higher priority;...
  • Page 77 Wireless Router RNX-EasyN4 User Manual Unlimited Priority Queue: The LAN IP address will not be bounded in the QoS limitation. High/Low Priority Queue: This can put the packets in the protocol and port range to High/Low QoS Queue. Bandwidth Allocation: This can reserve / limit the throughput of specific protocols and port range.
  • Page 78 Wireless Router RNX-EasyN4 Type: Specify the direction of packets. Upload, download or both. IP range: Specify the IP address range. You could also fill one IP address Protocol: Specify the packet type. The default ALL will put all packets in the QoS priority Queue.

  • Page 79: Tools Settings

    Wireless Router RNX-EasyN4 Destination LAN IP: Specify the destination LAN IP address of static routing rule. Subnet Mask: Specify the Subnet Mask of static routing rule. Default Gateway: Specify the default gateway of static routing rule. Hops: Specify the Max Hops number of static routing rule.
  • Page 80 Wireless Router RNX-EasyN4 Old Password: Fill in the current password to allow changing to a new password. New Password: Enter your new password and type it again in Repeat New Password for verification purposes Remote managemen This allows you to designate a host in the Internet the ability to configure the Broadband router from a remote site.

  • Page 81: Time Setup

    Wireless Router RNX-EasyN4 Host Address: This is the IP address of the host in the Internet that will have management/configuration access to the Broadband router from a remote site. If the Host Address is left 0.0.0.0 this means anyone can access the router’s web-based configuration from a remote location, providing they know the password.
  • Page 82 Wireless Router RNX-EasyN4 Synchronize with the NTP server Time Zone: Select the time zone of the country you are currently in. The router will set its time based on your selection. NTP Time Server: The router can set up external NTP Time Server.
  • Page 83 Wireless Router RNX-EasyN4 PC Date and Time: This field would display the PC date and time. Daylight Savings: The router can also take Daylight Savings into account. If you wish to use this function, you must select the Daylight Savings Time period and check/tick the enable box to enable your daylight saving configuration.
  • Page 84 Wireless Router RNX-EasyN4 User Manual providers. This router supports DynDNS, TZO and other common DDNS service providers. Enable/Disable DDNS: Enable or disable the DDNS function of this router Server Address: Select a DDNS service provider Host Name: Fill in your static domain name that uses DDNS.
  • Page 85 Wireless Router RNX-EasyN4 User Manual Saving power in WLAN mode can be enabled / disabled in this page. - Diagnosis This page could let you diagnosis your current network status.
  • Page 86 Wireless Router RNX-EasyN4 User Manual - Firmware This page allows you to upgrade the router’s firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page. You can...
  • Page 87 Wireless Router RNX-EasyN4 User Manual Once you’ve selected the new firmware file, click <Apply> at the bottom of the screen to start the upgrade process - Back-up This page allows you to save the current router configurations. When you save the configurations, you also can re-load the saved configurations into the router through the Restore Settings.
  • Page 88 Wireless Router RNX-EasyN4 Backup Settings: This can save the Broadband router current configuration to a file named "config.bin" on your PC. You can also use the <Upload> button to restore the saved configuration to the Broadband router. Alternatively, you can use the "Restore to Factory Defaults" tool to force the Broadband router to perform a power reset and restore the original factory settings.
  • Page 89 Wireless Router RNX-EasyN4 User Manual...

  • Page 90: Repeater Mode

    You can navigate from this page with a few interesting options for reminding or skipping this page forever & so forth. Once you click on <OK> button to go to the requested page, you can see the status page of the RNX-EASYN4. User Manual http://192.168..0.1...
  • Page 91 Wireless Router RNX-EasyN4 You can see the UP time, hardware information, serial number as well as firmware version information. LAN Settings: This page displays the Broadband router LAN port’s current LAN & WLAN information. It also shows whether the DHCP Server function is enabled / disabled.
  • Page 92 Wireless Router RNX-EasyN4 IP address: It is the router’s LAN IP address (Your LAN clients default gateway IP address). It can be changed based on your own choice. IP Subnet Mask: Specify a Subnet Mask for your LAN segment. 802.1d Spanning Tree: This is disabled by default. If 802.1d Spanning Tree function - Schedule Add schedule, edit schedule options allow configuration of power savings services.
  • Page 93 Wireless Router RNX-EasyN4 User Manual The schedule table lists the pre-schedule service-runs. You can select any of them using the check box.
  • Page 94 User Manual - Event Log View operation log of RNX-EASYN4. This page shows the current system log of the Broadband router. It displays any event occurred after system start up. At the bottom of the page, the system log can be saved <Save> to a local file for further processing or the system log can be cleared <Clear>...
  • Page 95 Wireless Router RNX-EasyN4 - Monitor Show the network packets histogram for network connection on WAN, LAN & WLAN. Auto refresh keeps information updated frequently. - Language This Wireless Router support multiple language of web pages, you could select your native language here.
  • Page 96 Wireless Router RNX-EasyN4 User Manual Wireless -Basic You can set parameters that are used for the wireless stations to connect to this router. The parameters include Mode, ESSID, Channel Number and Associated Client.
  • Page 97 Wireless Router RNX-EasyN4 Radio: Enable or Disable Wireless function Band: Allows you to set the AP fixed at 802.11b, 802.11g or 802.11n mode. You can also select B+G mode to allow 802.11b and 802.11g clients at the same time. Enable ESSID: You can specify the maximum ESSID number.
  • Page 98 Wireless Router RNX-EasyN4 User Manual -Clint List This WLAN Client Table shows the Wireless client associate to this Wireless Router.
  • Page 99 Wireless Router RNX-EasyN4 User Manual -Policy The Broadband router can allow you to set up the Wireless Access Policy. Communication between Wireless clients: Allow Wireless Client to communicate with other Wireless Client on specific SSID. Communication between Wireless clients and wired clients: Allow Wireless Client to communicate with other Wireless Client on specific SSID and Wired Client on the switch.
  • Page 100 Wireless Router RNX-EasyN4 User Manual Tools - Admin You can change the password required to log into the broadband router's system web-based management. By default, the password is: admin. Passwords can contain 0 to 12 alphanumeric characters, and are case sensitive.
  • Page 101 Wireless Router RNX-EasyN4 New Password: Enter your new password and in Repeat New Password for verification purposes Click <Apply> at the bottom of the screen to save the above configurations Remote managemen This allows you to designate a host in the Internet the ability to configure the Broadband router from a remote site.
  • Page 102 Wireless Router RNX-EasyN4 User Manual - Time The Time Zone allows your router to reference or base its time on the settings configured here, which will affect functions such as Event Log entries and Schedule settings. Time Setup: Synchronize with the NTP server...
  • Page 103 Wireless Router RNX-EasyN4 Time Zone: Select the time zone of the country you are currently in. The router will set its time based on your selection. NTP Time Server: This accept local the IP Address of Local NTP Time Server Daylight Savings: The router can also take Daylight Savings into account.
  • Page 104 Wireless Router RNX-EasyN4 Daylight Savings: The router can also take Daylight Savings into account. If you wish to use this function, you must select the Daylight Savings Time period and check/tick the enable box to enable your daylight saving configuration.
  • Page 105 Wireless Router RNX-EasyN4 User Manual - Diagnosis This page could let you diagnosis your current network status. - Firmware This page allows you to upgrade the router’s firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page.
  • Page 106 Wireless Router RNX-EasyN4 User Manual Once you’ve selected the new firmware file, click <Apply> at the bottom of the screen to start the upgrade process...
  • Page 107 Wireless Router RNX-EasyN4 - Back-up The page allows you to save (Backup) the router’s current configuration settings. When you save the configuration setting (Backup) you can re-load the saved configuration into the router through the Restore selection. If extreme problems occur you can use the Restore to Factory Defaults selection, this will set all configurations to its original default settings (e.g.
  • Page 108 Wireless Router RNX-EasyN4 User Manual - Reset You can reset the broadband router when system stops responding correctly or stop functions.

  • Page 109: Appendix A - Fcc Interference Statement

    Wireless Router RNX-EasyN4 Appendix A – FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 110: Appendix B - Ic Interference Statement

    Wireless Router RNX-EasyN4 User Manual Appendix B – IC Interference Statement Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
