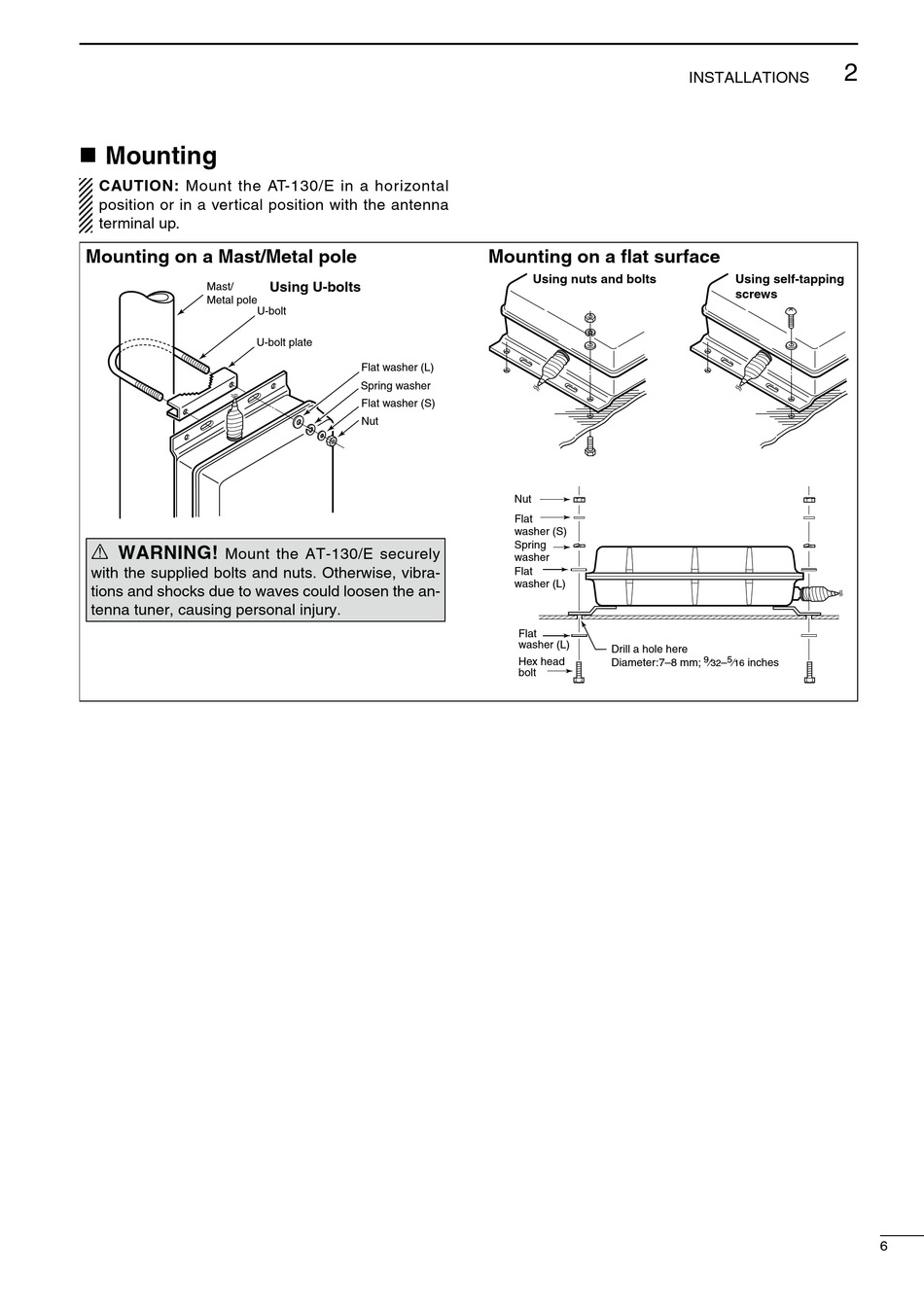

n Mounting
CAUTION: Mount the AT-130/E in a horizontal
position or in a vertical position with the antenna
terminal up.
Mounting on a Mast/Metal pole
Mast/
Metal pole
R WARNING!
Mount the AT-130/E securely
with the supplied bolts and nuts. Otherwise, vibra-
tions and shocks due to waves could loosen the an-
tenna tuner, causing personal injury.
Using U-bolts
U-bolt
U-bolt plate
Flat washer (L)
Spring washer
Flat washer (S)
Nut
Using U-bolts
Mast/
Metal pole
U-bolt
U-bolt plate
Mounting on a flat surface
Using nuts and bolts
Using nuts and bolts
Nut
Flat
washer (S)
Spring
washer
Flat
washer (L)
Flat
washer (L)
Drill a hole here
Hex head Diameter:7–8 mm;
bolt
Nut
Flat
washer (S)
Flat washer(L)
Spring
washer
Spring washer
Flat
Flat washer(S)
washer (L)
Nut
Flat
washer (L)
Drill a hole here
Hex head
Diameter:7–8 mm;
bolt
Nut
Flat
washer(S)
Spring
washer
Flat
washer(L)
Flat
washer(L)
Drill a hole here
Hex head
Diameter:7–8 mm;
bolt
2

INSTALLATIONS

Using self-tapping
screws
Using self-tapping
screws
9 5
⁄ – ⁄ inches
32 16
9 5
⁄ – ⁄ inches
32 16
Weatherproof cap
⁄ ⁄
9 5
– inches
32 16
6
