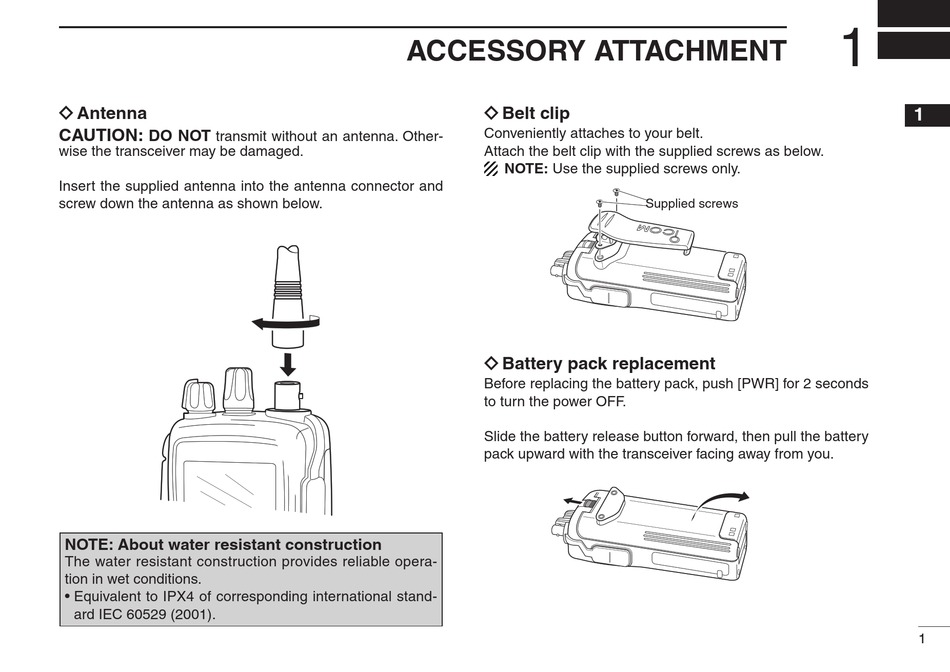

Accessory Attachment; Ï Belt Clip; Battery Pack Replacement - Icom IC-A24 Instruction Manual

ï Antenna
CAUTION:
DO NOT
transmit without an antenna. Other-
wise the transceiver may be damaged.
Insert the supplied antenna into the antenna connector and
screw down the antenna as shown below.
NOTE: About water resistant construction
The water resistant construction provides reliable opera-
tion in wet conditions.
• Equivalent to IPX4 of corresponding international stand-
ard IEC 60529 (2001).

ACCESSORY ATTACHMENT

ï Belt clip
Conveniently attaches to your belt.
Attach the belt clip with the supplied screws as below.
NOTE: Use the supplied screws only.

Battery pack replacement

ï
Before replacing the battery pack, push [PWR] for 2 seconds
to turn the power OFF.
Slide the battery release button forward, then pull the battery
pack upward with the transceiver facing away from you.
Supplied screws
