Page 1: User Manual

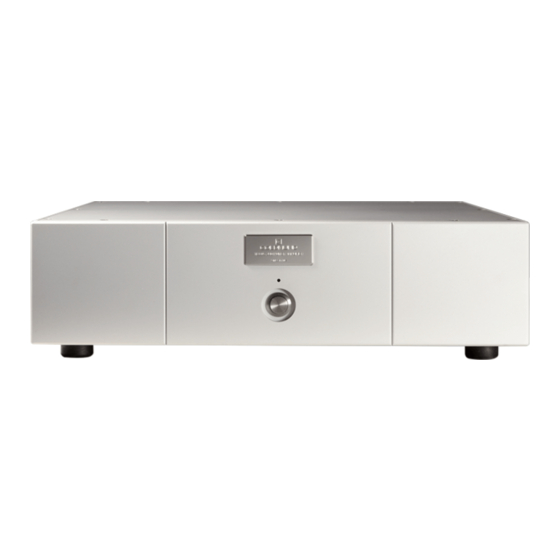

USER MANUAL GOLDMUND TELOS 280 Stereo Analog Power Amplifier... - Page 2 - networking and music distribution. The guiding principle at Goldmund is to produce a precise sound with the least possible loss of quality through the different stages. Goldmund will never adopt a technology before it is sufficiently developed to satisfy the high quality standards we set.
-
Page 3: Table Of Contents
SAFETY AND PRECAUTIONS SAFETY AND PRECAUTIONS SAFETY AND PRECAUTIONS SAFETY AND PRECAUTIONS 8 8 8 8 MAINTENANCE MAINTENANCE MAINTENANCE MAINTENANCE 9 9 9 9 TECHNICAL DATA TECHNICAL DATA TECHNICAL DATA TECHNICAL DATA GOLDMUND Telos 280 – ANALOG POWER AMPLIFIER - 3... - Page 4 Only careful installation and use can provide the satisfaction you are expecting. The installation instructions must be carried out in full and the mentioned precautions taken to get the expected result and to avoid impairing the amplifier’s performance. GOLDMUND Telos 280 – ANALOG POWER AMPLIFIER - 4...
-
Page 5: Unpacking
CHOICE OF AMPLIFIER LOCATION CHOICE OF AMPLIFIER LOCATION CHOICE OF AMPLIFIER LOCATION The Telos 280 is built by Goldmund using the best known technology of noise and vibration cancellation (Goldmund “Mechanical Grounding”) to insure a very silent and vibration free operation. -
Page 6: Line Voltage
LINE VOLTAGE LINE VOLTAGE The Goldmund Telos 280 amplifier is preset at the factory for your country's voltage.On the 230V position, the Goldmund Telos 280 amplifier will function properly for main line voltage between 190V and 245V. On the 115V position, the main line must deliver between 95 and 125V. -
Page 7: Amplifier Controls
AMPLIFIER CONTROLS AMPLIFIER CONTROLS On the front plate of the Goldmund Telos 280 amplifier you will find only one switch used to power the amplifier ON and one green power LED. When turned ON the 2 channels are connected after a few seconds and the front panel “POWER”... -
Page 8: Sound Quality Optimization (Ctd.)
Mains line phase inversion Mains line phase inversion The sonic quality of your Goldmund Telos 280 can be greatly improved if the mains AC line is properly connected. Try to invert the AC plugs of both your amplifiers, using special adapters. -
Page 9: Safety And Precautions
Protection circuit circuit The Goldmund Telos 280 is a DC-coupled amplifier without protection. If it is associated with a badly designed or defective analog preamplifier (often true for tube preamplifiers ATTENTION: the Goldmund Telos 280 is an and some 5 channel processors) the speakers could easily be damaged by the DC. -
Page 10: Technical Data
Connection between earth and ground to cancel all ground loops OUTPUT POWER: OUTPUT POWER: OUTPUT POWER: OUTPUT POWER: Power RMS (Goldmund FPP Standard): 320Wrms on 8 Ω. Maximum power (IEC60065): 2 x 215 Wrms on 8 Ω / 1%THD Rated Power Consumption (IEC60065): 300 W DISTORSION: DISTORSION:... - Page 11 Updated versions of this manual will be posted on our website at www.goldmund.com. Please visit our support page at http://www.goldmund.com/support/register to register your Goldmund product for warranty. GOLDMUND Telos 280 – ANALOG POWER AMPLIFIER - 11 RevA...
