Summary of Contents for Goldmund TELOS 352
-
Page 1: User Manual

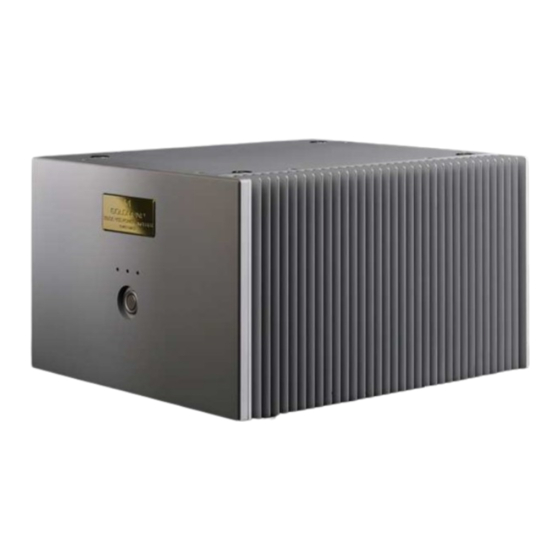

USER MANUAL GOLDMUND TELOS 352 Universal Stereo Power Amplifier... - Page 2 - networking and music distribution. The guiding principle at Goldmund is to produce a precise sound with the least possible loss of quality through the different stages. Goldmund will never adopt a technology before it is sufficiently developed to satisfy the high quality standards we set.
-
Page 3: Table Of Contents
Table of Contents UNPACKING UNPACKING AMPLIFIER LOCATION & COOLING LINE VOLTAGE ADJUSTMENTS CONNECTIONS AMPLIFIER CONTROLS SAFETY FEAT U R E S MAINTENANCE TECHNICAL DATA GOLDMUND TELOS 352 - Universal Stereo Power Amplifier - 3... - Page 4 The installation instructions must be carried out in full and the mentioned precautions taken to get the expected result and to avoid impairing the amplifier’s performance. GOLDMUND TELOS 352 - Universal Stereo Power Amplifier - 4...
-
Page 5: Unpacking
REPACKED IN THE ORIGINAL PACKAGING. THIS PACKAGING HAS BEEN DESIGNED SPECIFICALLY TO PROTECT YOUR TELOS 352 IN TRANSIT. USE OF ALTERNATIVE PACKAGING IS LIKELY TO RESULT IN DAMAGE, INVALIDATING WARRANTY COVER. GOLDMUND TELOS 352 - Universal Stereo Power Amplifier - 5... -
Page 6: Amplifier Location & Cooling
AMPLIFIER LOCATION & COOLING The GOLDMUND TELOS 352 amplifier, as all high quality amplifiers, generates a large amount of heat when driven at high levels and must be vented properly. It is mandatory to allow a proper cooling of the heat sinks. Do not put temperature sensitive equipment on top of the amplifier. -
Page 7: Line Voltage Adjustments
ATTENTION ATTENTION On the 220V configuration, the GOLDMUND TELOS 352 amplifier will function properly for main line voltage between 200V and 245V. On the 110V configuration, the main line must deliver between 90 and 125V. If your main line is usually out of these tolerances, please consult your GOLDMUND dealer. -
Page 8: Connections
Connect the speaker cables to one of the red and black terminals in the back of the amplifier, or, if you use a Goldmund High Definition speaker cable, you can connect directly from the speaker cable to one of the coaxial plugs on the back panel of the amplifier, bypassing the amplifier adapter module of the speaker cable. -
Page 9: Amplifier Controls
Position 4: Power after 2s Position 5: Power after 2.5s Position 6: Power after 3s Position 7: Power after 3.5s Position 8: Power after 4s Position 9: Power after 4.5s GOLDMUND TELOS 352 - Universal Stereo Power Amplifier - 9... - Page 10 MANUAL OPERATION MANUAL OPERATION Power up sequence: On the front plate of the GOLDMUND TELOS 352 amplifier you will find one POWER green light, one LOCKED orange light and one ERROR red light. Progressive charge of high power capacitors to limit peak current on When first connected to mains power the 3 leds flash ones to indicate AC line detected.
- Page 11 The amplifier will remain OFF with a red led on until the user intervenes. To unlock the amplifier from the error mode, press the power key for >2 seconds. GOLDMUND TELOS 352 - Universal Stereo Power Amplifier - 11...
-
Page 12: Safety Feat U R E S
SAFETY FEAT U R E S The GOLDMUND TELOS 352 amplifier provides features to protect the amplifier and the speakers against all mishandling or component failure. However precautions must be taken to avoid problems with a very high power amplifier. -
Page 13: Maintenance
Always turn the power OFF before cleaning your amplifier. Use a clean, soft, damp cloth to clean the amplifier surface. Dampen the cloth with water or a mild detergent solution. Avoid abrasive or harsh cleansers (e.g. products containing sodium carbonate). GOLDMUND TELOS 352 - Universal Stereo Power Amplifier - 13... -
Page 14: Technical Data
Rated power consumption (IEC 60065 at 8 Ω): 180 W. Maximum power consumption: 490 W. Nominal line voltage: 117, 234 V (selectable internally) Input voltage range: +/- 10 % 4 toroidal transformers GOLDMUND TELOS 352 - Universal Stereo Power Amplifier - 14... -
Page 15: Technical Data
DIME NSIONS & WEIGHT NSIONS & WEIGHT Dimensions: 305 W x 385 D x 230 H mm Weight: 33Kg WARRANTY WARRANTY WARRANTY WARRANTY 3 years parts and labor GOLDMUND TELOS 352 - Universal Stereo Power Amplifier - 15 Rev D...
