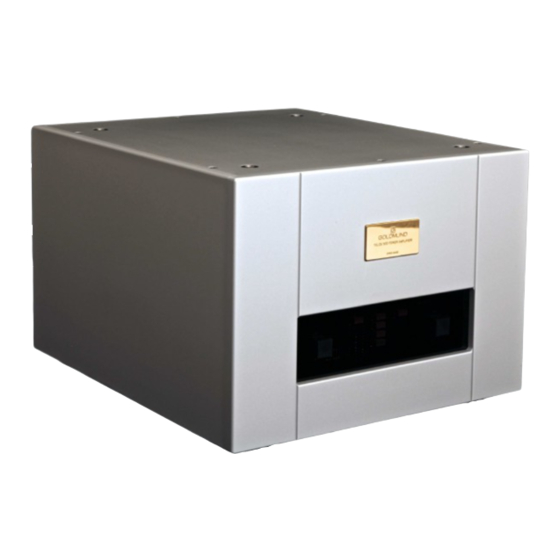

Page 1: User Manual
USER MANUAL GOLDMUND TELOS 500 Universal Power Amplifier... - Page 2 - networking and music distribution. The guiding principle at Goldmund is to produce a precise sound with the least possible loss of quality through the different stages. Goldmund will never adopt a technology before it is sufficiently developed to satisfy the high quality standards we set.
-
Page 3: Table Of Contents
Table of Contents UNPACKING AMPLIFIER LOCATION & COOLING LINE VOLTAGE ADJUSTMENTS CONNECTIONS AMPLIFIER CONTROLS SOUND QUALITY OPTIMIZATION SAFETY FEATURES MAINTENANCE TECHNICAL SPECIFICATIONS GOLDMUND TELOS 500 - Universal Power Amplifier - 3... - Page 4 The installation instructions must be carried out in full and the mentioned precautions taken to get the expected result and to avoid impairing the amplifier’s performance. GOLDMUND TELOS 500 - Universal Power Amplifier - 4...
-
Page 5: Unpacking
The power cord This manual ATTENTION IF YOU NEED TO RETURN THE TELOS 500 TO THE FACTORY OR TO YOUR LOCAL REPRESENTATIVE FOR A WARRANTY REPAIR, PLEASE NOTE THAT IT MUST BE REPACKED IN THE ORIGINAL PACKAGING. THIS PACKAGING HAS BEEN DESIGNED SPECIFICALLY TO PROTECT YOUR TELOS 500 IN TRANSIT. -
Page 6: Amplifier Location & Cooling
GOLDMUND "Mechanical Grounding" principle. If you use more than one TELOS 500 at any location, you may decide to stack them. Be careful that the conical feet of the top amp are inserted properly on the top of the steel bars of the amplifier located below. -
Page 7: Line Voltage Adjustments
GOLDMUND dealer for internal adjustment. ATTENTION On the 220V configuration, the GOLDMUND TELOS 500 amplifier will function properly for main line voltage between 211V and 257V. On the 110V configuration, the main line must deliver between 105 and 129V. If your main line is usually out of these tolerances, please consult your GOLDMUND dealer. -
Page 8: Connections
Connect the speaker cable to the red and black terminals in the back of the amplifier, or, if you use a Goldmund High Definition speaker cable, you can connect directly from the speaker cable to the coaxial plugs on the back panel of the amplifier, bypassing the amplifier adapter module of the speaker cable. -
Page 9: Amplifier Controls
As soon as the amplifier is connected to AC line and the amplifier has not detected an error previously, the yellow light on the amp front panel is ON. The TELOS 500 may be powered on either manually (Manual Operation) or automatically when receiving a signal (Auto-Power Operation). This is selected internally by the small white 10-position circular selector located on the top circuit of the amplifier, close to the big capacitors. - Page 10 AMPLIFIER CONTROLS (Ctd.) MANUAL OPERATION On the front plate of the GOLDMUND TELOS 500 amplifier you will find only two POWER keys. In the Manual Operation mode, the two POWER keys have to be activated simultaneously to power the amplifier on.
- Page 11 OTHER DISPLAY If an abnormal situation is found by the TELOS 500, one of the front panel red lights may turn ON, and the power of the amplifier is instantaneously set OFF.
-
Page 12: Sound Quality Optimization
We recommend that you proceed carefully when trying this. You must do it in combination with the speaker polarity and/or with absolute phase switching to be sure of the result. GOLDMUND TELOS 500 - Universal Power Amplifier - 12... - Page 13 Telos 500 with an extraordinary dynamic capability and transparency, especially on low efficiency speakers. To get all the benefits of this design, the TELOS 500 must be located on a very rigid support, or better directly on the floor, to be directly coupled with the building’s rigid construction.
-
Page 14: Safety Features
(often true for the tube preamplifiers), the speakers could be damaged. In such a case, the DC protection circuit of the TELOS 500 will automatically turn off the amplifier. This detection circuit is totally immune to any sonic effect. - Page 15 If for any reason (malfunction, too high level, too low load impedance) the temperature of the amplifier could reach a dangerous level, the TELOS 500 could be damaged. To avoid this type of damage, if the temperature rises too high, a protection circuit switches the amplifier OFF automatically.
-
Page 16: Maintenance
MAINTENANCE The GOLDMUND TELOS 500 amplifier usually requires no maintenance. Always turn the power OFF before cleaning your amplifier. Use a clean, soft, damp cloth to clean the amplifier surface. Dampen the cloth with water or a mild detergent solution. - Page 17 Max level before clipping: • 1 % THD, unloaded: 153 Vpp PERFORMANCE Output power: • Power RMS (Goldmund FPP Standard): 350 Wrms on 8 Ω. • Maximum power (IEC60065): 335 Wrms on 8 Ω / 1%THD Bandwidth: • 20Hz - 20KHz: +/-0,03dB, unloaded •...
- Page 18 380 at 1 kHz / 8 Ω http://www.goldmund.com/support/register register your Goldmund product DIMENSIONS warranty. • 330 W x 470 D x 270 H (mm) WEIGHT • Weight: 55 kg WARRANTY • 3 years parts and labor GOLDMUND TELOS 500 - Universal Power Amplifier - 18 RevA...
