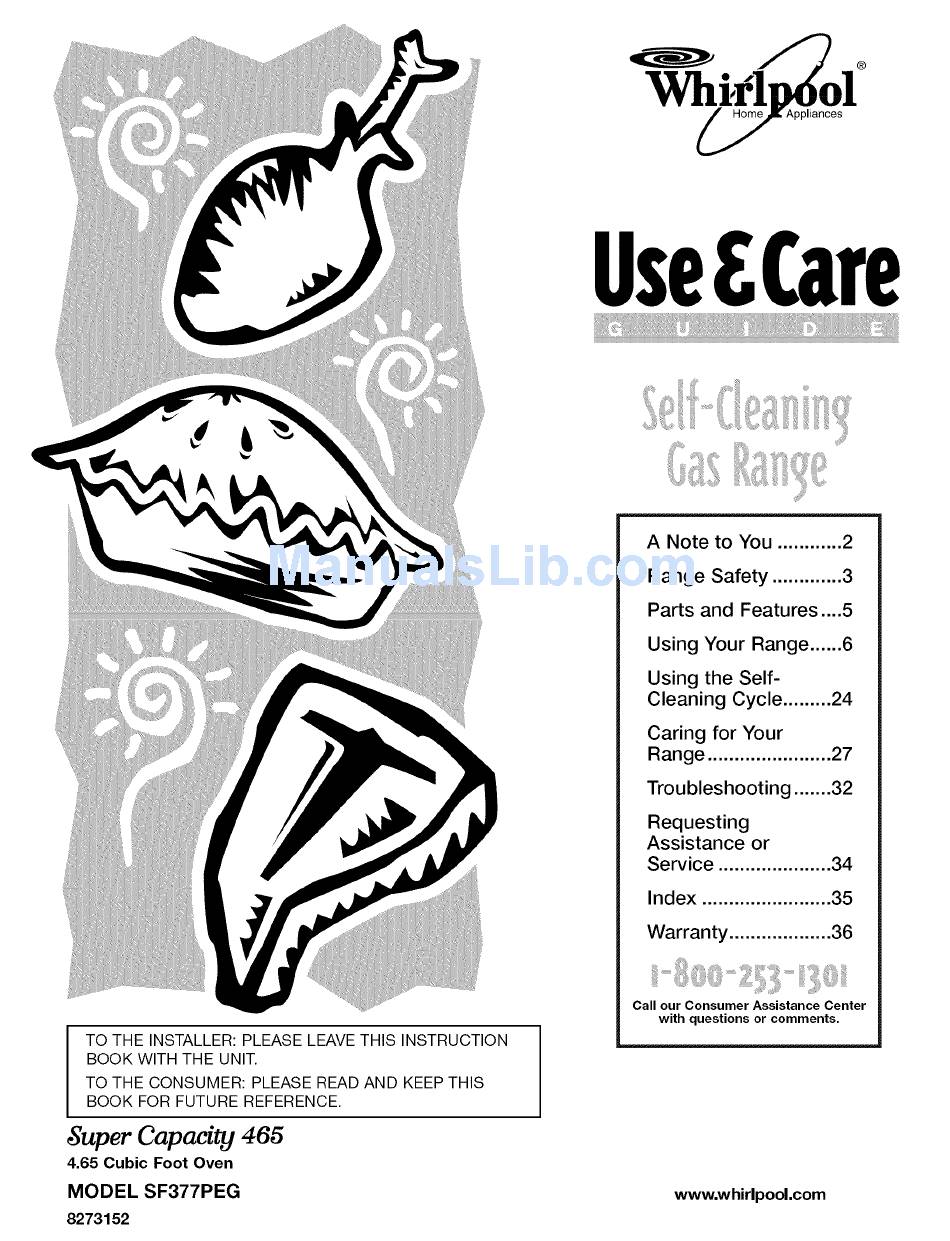

Whirlpool SF377PEGT5 Use & Care Manual

Self-cleaning gas range super capacity 465 4.65 cubic foot oven
Hide thumbs

Advertisement

Quick Links

TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION
BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND KEEP THIS
BOOK FOR FUTURE REFERENCE.
,Super Capacity
466
4.65 Cubic Foot Oven
MODEL SF377PEG
8273152
Appliances
Use E Care
A Note to You ............ 2
Range Safety ............. 3
.... 5
Using the Self-
Cycle ......... 24
Caring
for Your
Range .......................
27
....... 32
.....................
34
Index ........................
35
Warranty ................... 36
Call our Consumer
Assistance
Center
with questions or comments.
www.whirlpool.com
