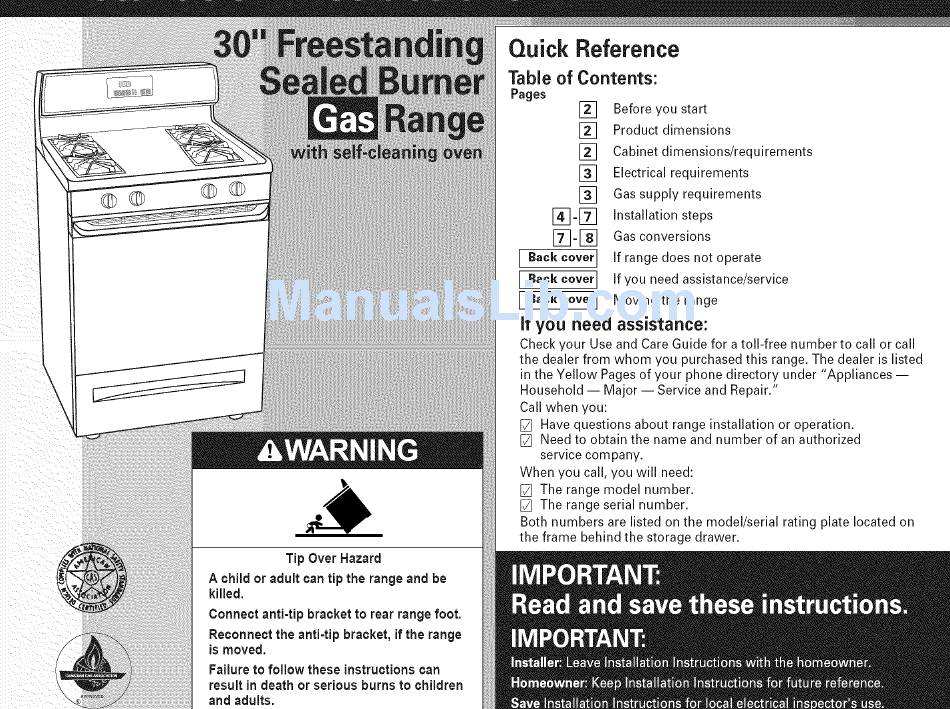

30" freestanding sealed burner gas range with self-cleaning oven

Advertisement

Quick Links

© ©
Tip Over Hazard
A child or adult can tip the range and be
killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range
is moved.
Failure to follow these instructions can
result in death or serious burns to children
and adults.
Quick Reference
Table of Contents:
Pages
[]
[]
[]
[]
[]
I 1-%
I 1-%
I B.ck coverI
Before you start
Product dimensions
Cabinet dimensions/requirements
Electrical requirements
Gas supply requirements
Installation steps
Gas conversions
if range does not operate
if you need assistance/service
Moving the range
if you need assistance:
Check your Use and Care Guide for a toll-free number to call or call
the dealer from whom you purchased this range. The dealer is listed
in the Yellow Pages of your phone directory under "Appliances --
Household -- Major -- Service and Repair."
Call when you:
[]
Have questions about range installation or operation.
[]
Need to obtain the name and number of an authorized
service company.
When you call, you will need:
[]
The range model number.
[]
The range serial number.
Both numbers are listed on the model/serial rating plate located on
the frame behind the storage drawer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF370LEGN0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Whirlpool SF370LEGN0

  • Page 1 Quick Reference Table of Contents: Pages Before you start Product dimensions Cabinet dimensions/requirements Electrical requirements © © Gas supply requirements I 1-% Installation steps I 1-% Gas conversions I B.ck coverI if range does not operate if you need assistance/service Moving the range if you need assistance: Check your Use and Care Guide for a toll-free number to call or call...
  • Page 2 Grounded electrical Yoursafety and the safety of others is very important. outlet is required. See "Electrical requirements," We have provided many important safety Page 3. messages in this manual and on your appliance. Always read and obey all safety messages. Proper gas supply connection must be This is the safety alert symbol.
  • Page 3: Recommended Ground Method

    Recommended ground method For personal safety, this range is equipped with a power supply cord having a 3-prong ground plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong, ground-type outlet, grounded in accordance with Electrical Shock Hazard the National Electrical Code, ANSI/NFPA 70 --...
  • Page 4: Anti-Tip Bracket Installation

    heck cooktop burners for proper flame Plug power supply cord into grounded outlet ®® heck broiler burner for proper flame emove shipping material. Remove oven Make proper gas connection racksand parts package. heck oven burner for proper flame Install anti- tip bracket Secure range with anti-tip...
  • Page 5: Operating Position

    Before moving range across floor, check that Operating position range is still on cardboard shipping base to protect floor covering. front leveffng leg ,, Making sure the anti-tip bracket is _____ installed: • Look for the anti-tip\ \\ _ _L _. anti-tip bracket bracket__ securely attached to [] Place rack in oven.
  • Page 6: Check Operation

    Check operation of oven burner Check operation Electronic ignition system .. Open oven door. Cooktop and oven burners use electronic ignitors in place of standing pilots. When a cooktop control knob is turned to the "LIGHT" position, the system creates a spark to light the burner.
  • Page 7 Check operation (cont.) % i1lm If flame needs to be adjusted: TIMER Loosen the lock screw on the air shutter BAKE BROIL--® located at the rear of the broil burner. ? -- START ® HEAT --O Adjust the air shutter as needed. CLEA_ DOOR LOCKED...
  • Page 8: Natural Gas Conversion

    .. Reinstall the storage drawer. Complete _,, C ooktop b urners: Pull installation sections D through E, Pages 5-7. range outfromcountertop /..< Checking for proper cooktop burner and oven front about 4 inches. There _._._--"_ flame is very important. are two clips, one on each --_-_-_/X_.
  • Page 9: Moving The Range

    The range model number. The range serial number. Both numbers are listed on the model/serial rating plate located on the frame behind the storage drawer. Printed in U.S.A. Part No. 8053366 Rev. A Benton Harbor, Michigan 49022 @1998 Whirlpool Corporation...
