Slide-out work surface
Hide thumbs

Advertisement

48 in.2 *
(310 cm 2)
+
+
24 in.2 *
(155 cm2)
3"* (7.6 cm)
o
!
3"* (7.6 cm)
m
_-
1"**(2.5cm)
A
B

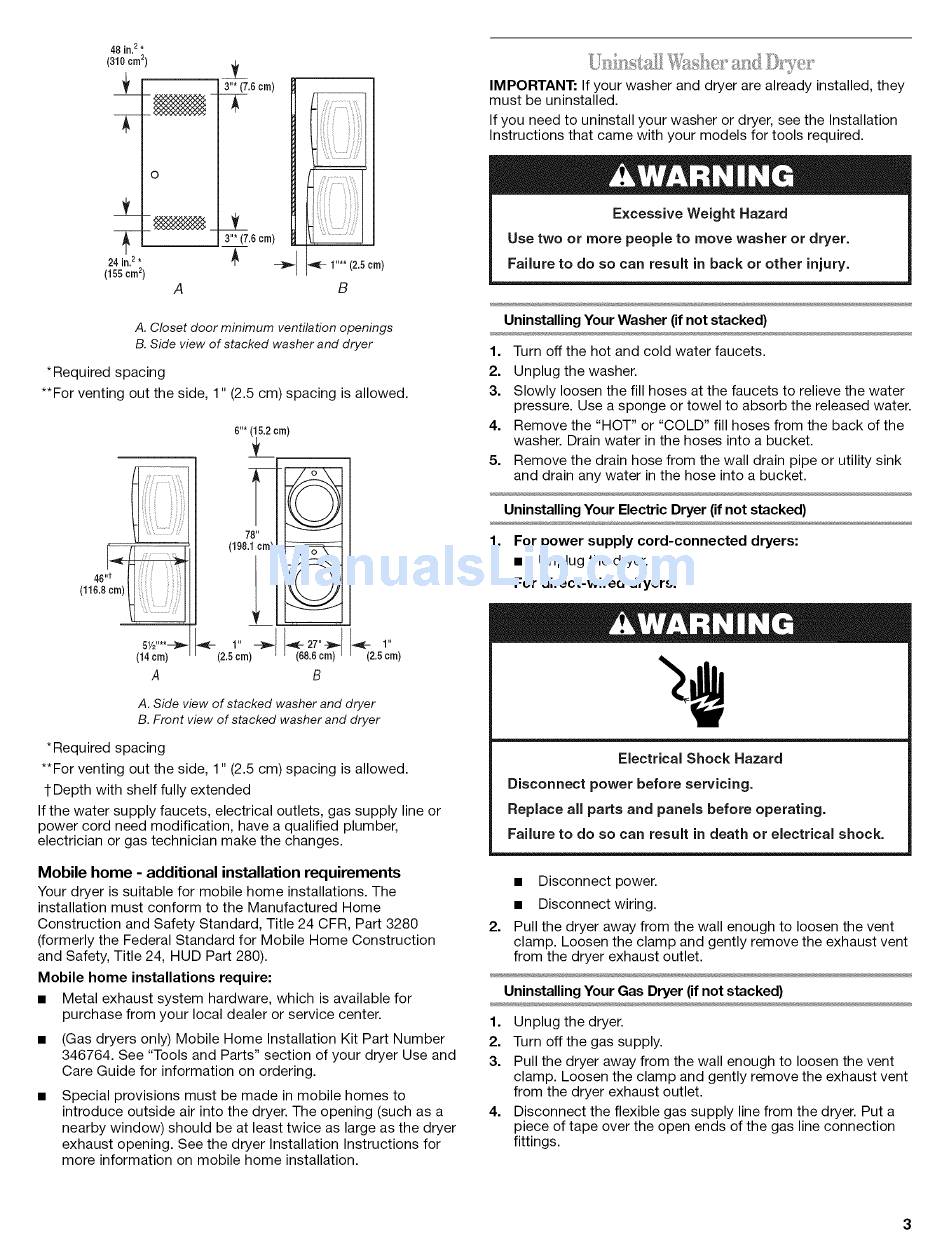

A. Closet door minimum ventilation openings
B. Side view of stacked washer and dryer
*Required spacing
**For venting out the side, 1" (2.5 cm) spacing is allowed.
(11
,%
51/2"** --_
_
1"
(14cm)
(2.5 cm)
A
6"* (;5.2 cm)
78"
(198.1cm) _
7"/_\X-
(2.5 cm)
(68.6 cm)
B
A. Side view of stacked washer and dryer
B. Front view of stacked washer and dryer
*Required spacing
**For venting out the side, 1" (2.5 cm) spacing is allowed.
1-Depth with shelf fully extended
If the water supply faucets, electrical outlets, gas supply line or
power cord need modification,
have a qualified plumber,
electrician or gas technician make the changes.
Mobile home - additional
installation
requirements
Your dryer is suitable for mobile home installations. The
installation must conform to the Manufactured
Home
Construction
and Safety Standard, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile Home Construction
and Safety, Title 24, HUD Part 280).
Mobile home installations require:
Metal exhaust system hardware, which is available for
purchase from your local dealer or service center.
(Gas dryers only) Mobile Home Installation Kit Part Number
346764. See "Tools and Parts" section of your dryer Use and
Care Guide for information on ordering.
Special provisions must be made in mobile homes to
introduce outside air into the dryer. The opening (such as a
nearby window) should be at least twice as large as the dryer
exhaust opening. See the dryer Installation Instructions for
more information
on mobile home installation.
IMPORTANT: If your washer and dryer are already installed, they
must be uninstalled.
If you need to uninstall your washer or dryer, see the Installation
Instructions that came with your models for tools required.
Excessive
Weight Hazard
Use two or more people to move washer or dryer.
Failure to do so can result in back or other injury.
Uninstalling Your Washer (if not stacked)
1. Turn off the hot and cold water faucets.
2. Unplug the washer.
3. Slowly loosen the fill hoses at the faucets to relieve the water
pressure. Use a sponge or towel to absorb the released water.
4. Remove the "HOT" or "COLD" fill hoses from the back of the
washer. Drain water in the hoses into a bucket.
5. Remove the drain hose from the wall drain pipe or utility sink
and drain any water in the hose into a bucket.
Uninstalling Your Electric Dryer (if not stacked)
1. For power supply cord-connected
dryers:
Unplug the dryer.
For direct-wired
dryers:
Electrical
Shock Hazard
Disconnect
power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical
shock.
Disconnect
power.
Disconnect wiring.
2. Pull the dryer away from the wall enough to loosen the vent
clamp. Loosen the clamp and gently remove the exhaust vent
from the dryer exhaust outlet.
Uninstalling Your Gas Dryer (if not stacked)
1. Unplug the dryer.
2. Turn off the gas supply.
3. Pull the dryer away from the wall enough to loosen the vent
clamp. Loosen the clamp and gently remove the exhaust vent
from the dryer exhaust outlet.
4. Disconnect the flexible gas supply line from the dryer. Put a
piece of tape over the open ends of the gas line connection
fittings.
