EverFocus M117-N701-001 Operation Manual

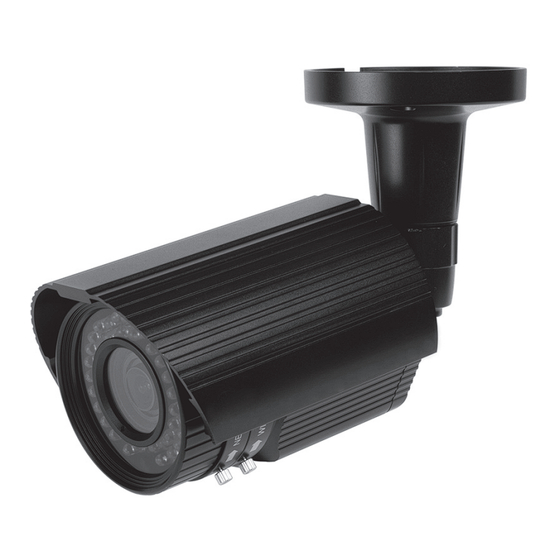

Super night vision camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

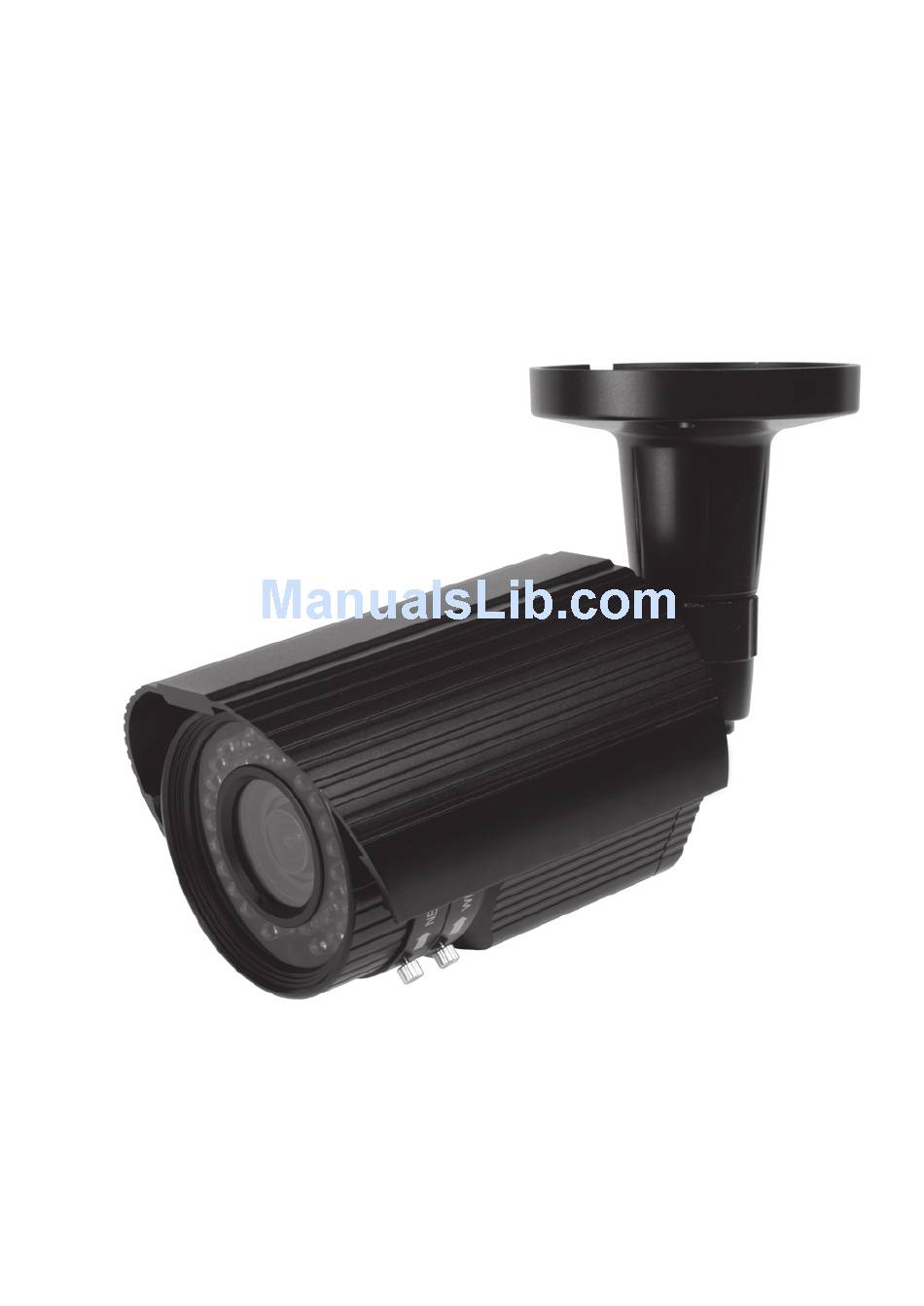

M 1 1 7 - N 7 0 1 - 0 0 1
HIGH PERFORMANCE
Super Night Vision Camera
OPER ATI ON MA NUAL
Th ank you for ch o o sin g o u r h ig h q u a li ty c a m e r a . B e fo r e a tte m p t in g
to co nnect oper a te th is u n it, p le a se r e a d a n d fo l lo w th e se i n str u cti o n s.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M117-N701-001 and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus M117-N701-001

Summary of Contents for EverFocus M117-N701-001

  • Page 1 M 1 1 7 - N 7 0 1 - 0 0 1 HIGH PERFORMANCE Super Night Vision Camera OPER ATI ON MA NUAL Th ank you for ch o o sin g o u r h ig h q u a li ty c a m e r a . B e fo r e a tte m p t in g to co nnect oper a te th is u n it, p le a se r e a d a n d fo l lo w th e se i n str u cti o n s.
  • Page 2 CAU T ION These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. In USA and Canada, Use Class 2 Power Supply Only...
  • Page 3 C O NT EN T S 1 . CA UTIO NS 2 . IMPORTA NT SAF E T Y I N STR U CTI ONS 3 . FEATURE S 4 . COMPONENT S 5 . NA ME AN D F UNCT I ON 6 .
  • Page 4 1. C AUT I ON S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 1. C AUT I ON S Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life.

  • Page 6: Important Safety Instruction

    2 . IMPORTANT SAFETY INSTRUCTION 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 7 3. FE AT UR E S • 1/3  960H SONY EXview HAD CCD II • High Resolution of 700TV Lines • OSD Function • Multi Language (ENGLISH, CHINESE, RUSSIAN, SPANISH, GERMAN, FRENCH, PORTUGUESE, JAPANESE) • 2DNR • Privacy Zone / Motion Detect •...

  • Page 8: Na Me A N D F U N C T I O N

    5. NA ME A N D F U N C T I O N ① ② ① S uns hi eld ② C able C o nc eale d T hr u B r ac ke t ③ LE D : 4 5ea ④...
  • Page 9 5. NA ME A N D F U N C T I O N • Heater Heater Built in heater protects the camera from low temperature. (Operating temperature with Heater:-40℃) • External Zoom & Focus Adjustable External Zoom & Focus Adjustable...

  • Page 10: Installation

    6. I NSTA L L ATI O N • MOUNTING POSITION 360 ˚PAN 90 ˚TLIT 360 ˚PAN 90 ˚TLIT...

  • Page 11: Monitor Connection

    6. I NSTA L L ATI O N • MONITOR CONNECTION DC 12V POWER SUPPLY or AC 24V POWER SUPPLY DC12V/AC24V VIDEO IN MONITOR DC 12V POWER SUPPLY or AC 24V POWER SUPPLY DC12V/AC24V VIDEO IN MONITOR BNC FEMALE RS485 When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems.
  • Page 12 7. D IM EN S I O N S Unit : mm 45 LED SENSOR 110.6 243.3 M12XP1.25 (2EA) Ø95...

  • Page 13: Specification

    8. SPE C I F I C AT I O N Signal Format NTSC Image Device 1/3˝ 960H SONY EXview HAD CCD II Scanning System 2 : 1 Interlace Scanning Frequency 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V) Total Pixels 1020(H) X 508(V) 1020(H) X 596(V) Effective Pixels 976(H) X 494(V)

  • Page 14: General Structure

    9. OS D M A N UA L GENERAL STRUCTURE SETUP FOCUS ADJUST >FOCUS ADJUST EXPOSURE WHITE BALANCE DAY&NIGHT IMAGE > RETURN SPECIAL FACTORY DEFAULT EXIT EXPOSURE ... 7 >BRIGHTNESS ... 1/60 SHUTTER ... OFF FLICKERLESS ... 32dB AGC MAX INITIAL RETURN WHITE BALANCE...

  • Page 15: Os D M A N Ua L

    9. OS D M A N UA L CAM TITLE [TITLE LOCATION] IMAGE 0123456789ABCDEFGHIJK TITLE LMNOPQRSTUVWXYZ!()<> SPA>> <<BAK >MIRROR TITLE SET DNR LEVEL LOCATION [┛] [U] [D] [L] [R] [M] < SHARPNESS RETURN INITIAL RETURN COMM ADJUST > CAM ID SPECIAL BAUDRATE 9600...
  • Page 16 9 . OSD M A NUAL MAIN MENU Sub Menu Sub MENU SETUP FOCUS ADJUST RETURN BRIGHTNESS 0~15 SHUTTER 1/60(50), 1/120(100),1/250, 1/500, 1/1k, 1/2k, 1/4k, 1/6k, 1/10k, 1/50k, 1/100k FLICKERLESS OFF, ON EXPOSURE AGC MAX 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB, 39dB, 42dB INITIAL RETURN WB MODE...
  • Page 17 9 . OSD M A NUAL MAIN MENU Sub Menu Sub MENU LANGUAGE ENGLISH, CHINESE, RUSSIAN, SPANISH, GERMAN, FRENCH, PORTUGUESE, JAPANESE CAM ID 0 ~ 255 COMM ADJUST BAUDRATE 2400, 4800, 9600, 19200 RETURN ZONE NO 0 ~ 3 MASK MODE OFF, ON V START 0 ~ 17...

  • Page 18: Osd Function Description

    9. OS D M A N UA L OSD FUNCTION DESCRIPTION 1. FOCUS ADJUST : According to the brightness of light to minimize the depth of focus, to be more accurate to focus. FOCUS >RETURN 2. EXPOSURE : Enable user to set up the function of BRIGHTNESS, SHUTTER, FLICKERLESS, AGC. Set up using LEFT, RIGHT KEY at each menu.
  • Page 19 9. OS D M A N UA L 3. WHITE BALANCE : Enable user to represent the accurate white color by controlling the R,G,B level. Setting up LEFT, RIGHT KEY on each menu. - WB MODE WHITE BALANCE ① ATW : Enable user to trace the White Balance >WB MODE AUTO automatically in the range of 2,300K~10,000K.
  • Page 20 9. OS D M A N UA L - BLC ZONE : Enable user to set the BLC area -> TOP, BOTTOM, CENTER, LEFT, RIGHT. - BLC LEVEL : Enable user to set BLC in selected area(0~15 level). LEFT CENTER RIGHT - INITIAL : Enable user to initialize the BLC setting.
  • Page 21 9. OS D M A N UA L 6. IMAGE : MIRROR, DNR, SHARPNESS functions set up by pressing LEFT, RIGHT KEY. IMAGE >MIRROR DNR LEVEL SHARPNESS INITAL RETURN (OFF) (ON) - MIRROR: Enable user to reverse the image. - DNR : This function reduces noise by undertaking spatial filtering for one image.
  • Page 22 9. OS D M A N UA L - CAM TITLE : Enable user to choose any word in screen(Maximum 10 letter is available) ① A letter Choice from the screen using menu key ② Enable user to move to next menu using LEFT, RIGHT KEY in LOCATION. ③...

  • Page 23: Factory Default

    9. OS D M A N UA L - MOTION DETECT : Motion detection function. ① MOTION MODE : Enable user to set up ON/OFF ② LEVEL : Enable user to setup a motion detect sensitivity (0~3) ③ V START : Motion area Vertical start position. ④...
  • Page 24 10 . C o m m un i c at i o n P r o t oc ol Pelco “D” Protocol Commands • Most widely used Commands - TELE = UP KEY - WIDE = DOWN KEY - NEAR = LEFT KEY - FAR = RIGHT KEY - MENU = MENU KEY...
