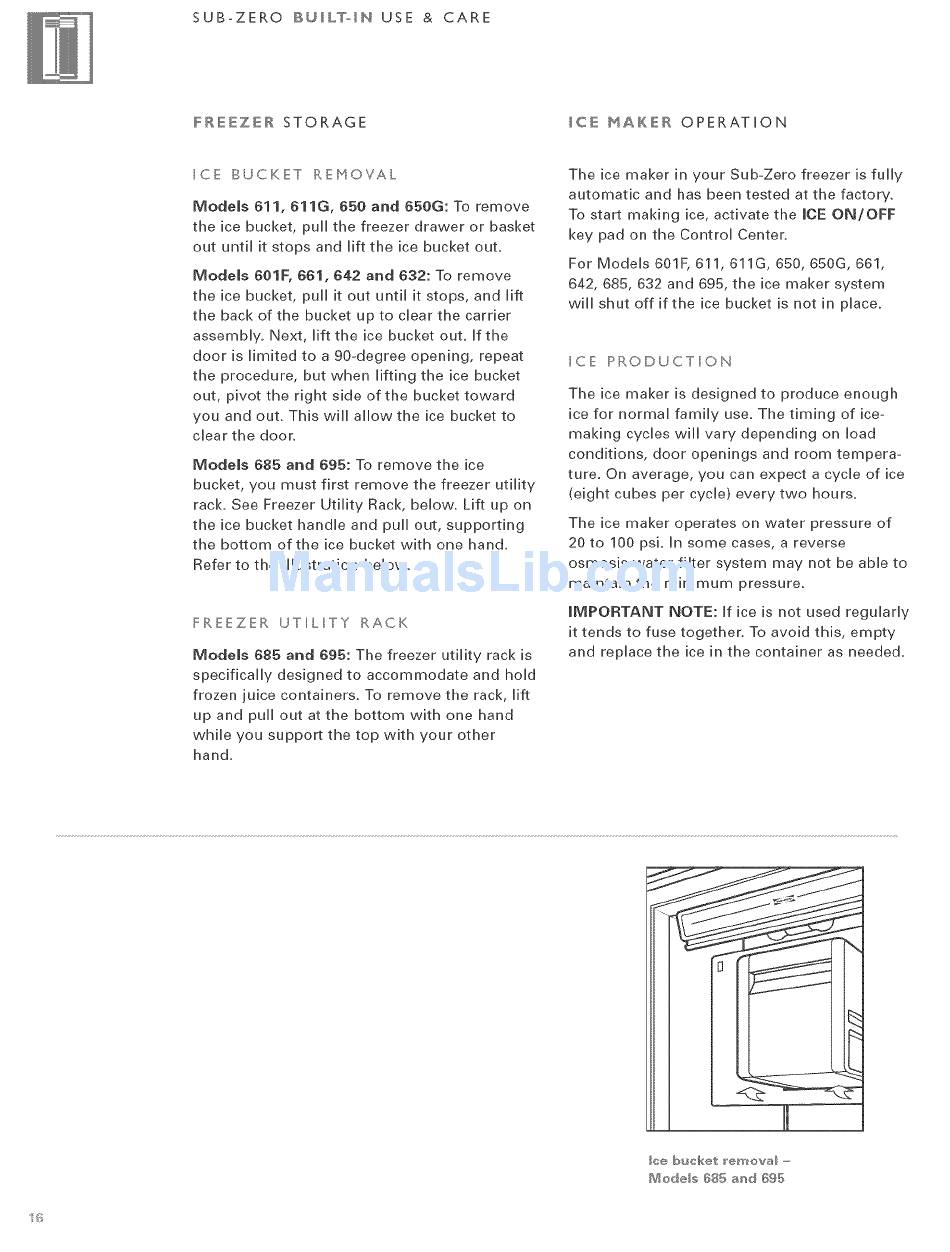

SUB-ZEROBU_LT+IM USE& CARE
FREEZERSTORAGE ICE MAKEROPERATION
ICE BUCKETREHOVAL
Models611,611G, 650arid6BOG: Toremove
the icebucket, pullthefreezer drawer or basket
outuntilit stops andHfttheicebucket o ut+
Models 6011:, 661,642 arid 632: To remove
the ice bucket, pull it out until it stops, and Hft
the bacH<of the bucket up to dear the carrier
assemNy. Next, Hft the ice bucket out. If the
door is limited to a 9O-degree opening, repeat
the procedure, but when lifting the ice bucket
out, pivot the right side of the bucket toward
you and out. This will allow the ice bucket to
clear the door.
Models 685 arid (195: To remove the ice
bucket, you must first remove the freezer utility
rack. See Freezer Utility Rack, below. Lift up on
the ice bucket handle and pull out, supporting
the bottom of the ice bucket with one hand.
Refer to the illustration below.
FREEZER UTILITY RACK
Models 685 arid 695: The freezer utility rack is
specifically designed to accommodate and hold
frozen juice containers. To remove the rack, lift
up and pull out at the bottom with one hand
while you support the top with your other
hand.
The ice maker in your Sub-Zero freezer is fully
automatic and has been tested at the factory+
To start making ice, activate the ICE
ON/OFF
key pad on the Control Center+
For Models 601F, 611,611G, 650, 650G, 661,
642, 685, 632 and 695, the ice maker system
will shut off if the ice bucket is not in place+
ICE PRODUCTION
The ice maker is designed to produce enough
ice for normal family use. The timing of ice-
making cycles will vary depending on load
conditions, door openings and room tempera-
ture. On average, you can expect a cycle of ice
(eight cubes per cycle) every two hours.
The ice maker operates on water pressure of
20 to 100 psi. in some cases, a reverse
osmosis water filter system may not be able to
maintain the minimum pressure.
IMPORTANT NOTE: If ice is not used regularly
it tends to fuse together. To avoid this, empty
and replace the ice in the container as needed+
_c÷ bk+cket _÷_ova_ -
_?_ode_s _;85 a+_d 695
16
