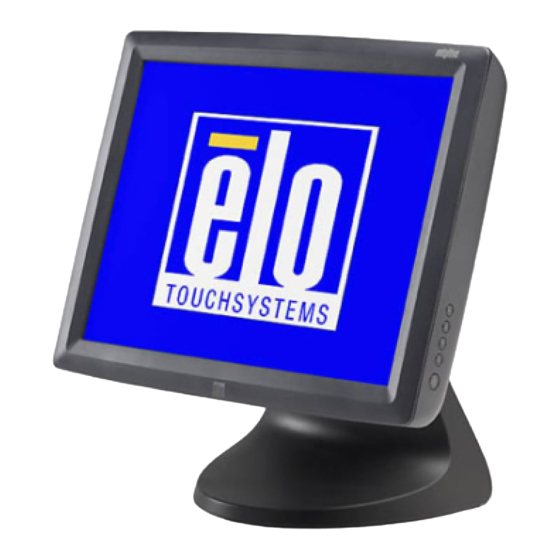

Elo TouchSystems 1528L User Manual
  1. Manuals
  2. Brands
  3. Elo TouchSystems Manuals
  4. Touchscreen
  5. 1528L
  6. User manual

Elo TouchSystems 1528L User Manual

Touchmonitors
Hide thumbs Also See for 1528L:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
USER MANUAL
Elo Touch Solutions
1528L Touchmonitors
SW2000095 Rev A

Advertisement

Table of Contents
loading

Related Manuals for Elo TouchSystems 1528L

Summary of Contents for Elo TouchSystems 1528L

  • Page 1 USER MANUAL Elo Touch Solutions 1528L Touchmonitors SW2000095 Rev A...
  • Page 2 Elo Touch Solutions, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Elo Touch Solutions, Inc. to notify any person of such revisions or changes.
  • Page 3 Warnings and Cautions Warning Danger — Explosion hazard. Do not use in the presence of flammable anesthetics. To prevent fire or shock hazards, do not immerse the unit in water or expose it to rain or moisture. Do not use the unit with an extension cord receptacle or other outlets unless the prongs of the power cord can be fully inserted.
  • Page 4 CAUTION-Life Support Care must be taken when this touchmonitor is a critical component of a Life support system or device. In case of failure of this touchmonitor, appropriate redundant systems should be incorporated into the system or device to prevent injury to the user or patient.
  • Page 5 Classification With respect to electrical shock, fire in accordance with ANSI/AAMI ES60601-1 and CAN/CSA C22.2 No. 60601-1-08 This monitor is a CLASS 1 (GROUNDED) DEVICE. This monitor is classified NO APPLIED PARTS EQUIPMENT. Protection against harmful ingress of water: INGRESS PROTECTION (IPX1) This monitor shall be classified as ORDINARY EQUIPMENT, not intended or evaluated for use in the presence of flammable anesthetic mixture with air, oxygen, or nitrous oxide.
  • Page 6 Explaination of Symbols Symbol Description UL Classification means that UL has tested and evaluated samples of the product with respect to certain properties of the product. (look on page 9 ) For those EU Directives that permit it, the CE mark indicates product compliance with standards indicated in the "Certificate of Conformance"...
  • Page 7 Guidance and manufacturer’s declaration – electromagnetic immunity The 1528L is intended for use in the electromagnetic environment specified below. The customer or the user of the 1528L should assure that it is used in such an environment. IEC60601 Electromagnetic environment – Immunity test Compliance level test level...
  • Page 8 Guidance and manufacture’s declaration – electromagnetic immunity The 1528L is intended for use in the electromagnetic environment specified below. The customer or the user of the 1528L should assure that it is used in such an environment. Immunity Test IEC60601 test level Compliance Electromagnetic environment –...
  • Page 9 Recommended separation distances between Portable and mobile RF communications equipment and the 1528L The 1528L is intended for use in which radiated RF disturbances are controlled. The customer or the user of the 1528L can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the 1528L as recommended below, according to the maximum output power of the communications equipment.

  • Page 10: Table Of Contents

    Chapter 2: Installation and Setup ........12 Chapter 3: Operation............19 Chapter 4: Troubleshooting ..........23 Chapter 5: Native Resolution ...........24 Chapter 6: Touchmonitor Safety........25 Chapter 7: Technical Specifications........27 Chapter 8: Contact Elo Touch Solutions ......35 Chapter 9: Regulatory Information ........36 Chapter 10: Warranty ............38 User Manual: 1528L  SW200095 Rev A, Page 10 of 39...

  • Page 11: Chapter 1: Introduction

    Chapter 1: Introduction Product Description The 1528L is a medical 15-inch touchmonitor which uses liquid crystal monitor (LCD) technology, designed to present information to the operator, care-giver and the patient. The 1528L features both serial and USB touch interfaces as standard configuration. The 1528L functionally consists of a 15-inch LCD main monitor with a touchscreen.

  • Page 12: Chapter 2: Installation And Setup

    Chapter 2: Installation and Setup This chapter discusses how to install your LCD touchmonitor and how to install Elo TouchSystems driver software. Unpacking Your Touchmonitor Check that the following items are present and in good condition: User Manual: 1528L  SW200095 Rev A, Page 12 of 39...

  • Page 13: Product Overview

    Product Overview Front View Rear View User Manual: 1528L  SW200095 Rev A, Page 13 of 39...

  • Page 14: Side View

    Side View Kensington™ Lock The Kensington™ lock is a security device that prevents theft. To find out more about this security device, go to http://www.kensington.com. User Manual: 1528L  SW200095 Rev A, Page 14 of 39...

  • Page 15: Usb Interface Connection

    USB Interface Connection Your touchmonitor comes with one USB cable. (For use with Windows 2000, ME, and XP systems only.) To set up the monitor, please refer to the following figures and procedures: Remove the Cable Cover The cables are connected at the back of the monitor. AUTION: Before connecting the cables to your touchmonitor and PC, be sure that the computer and touchmonitor are turned off.
  • Page 16 The following illustrations guide you step by step in connecting your touchmonitor using a Serial or USB cable connection with D-Sub 15 or DVI video cable.. Connect one end of the video cable to the rear side of computer and the other to the LCD.

  • Page 17: Installing The Touch Driver Software

    Replace the Cable Cover After you have attached all the cables to the monitor; gently bring all the cables toward the center so they fit under the cable cover lip. Snap the cable cover in place over the connections. Optimizing the LCD Monitor To ensure the LCD monitor works well with your computer, configure the monitor mode of your graphic card to make it less than or equal to 1024 x 768 resolution, and make sure the timing of the monitor mode is compatible with the LCD monitor.

  • Page 18: Installing The Usb Touch Driver

    Additional drivers and driver information for other operating systems (including Macintosh and Linux) are available on the Elo TouchSystems web site at www.elotouch.com. Your Elo USB touchmonitor is “plug-and-play” compliant. Information on the video capabilities of your touchmonitor is sent to your video monitor adapter when Windows starts.

  • Page 19: Chapter 3: Operation

    Chapter 3: Operation About Touchmonitor Adjustments Your touchmonitor will unlikely require adjustment. Variations in video output and application may require adjustments to your touchmonitor to optimize the quality of the display. For best performance, your touchmonitor should be operating in native resolution, that is 1024x768 at 60-75 Hz.

  • Page 20: Controls And Adjustment

    Table 1 - User controls Control Function MENU Menu monitor and menu exit. ▲ Adjusts the increasing value of the selected OSD control option. ▼ Adjusts the decreasing value of the selected OSD control option. (Hot-Button for Audio Volume) 4 SELECT Monitors the OSD menus on the screen and used to select (“Clockwise”...
  • Page 21 Figure 1 - OSD Main Menu OSD Control Options (Clockwise) Contrast • Adjusts the contrast or the values of color gain (RED, GREEN or BLUE). Brightness • Background luminance of the LCD panel is adjusted. Vertical Position • Adjusts vertical position of image. Horizontal Position •...
  • Page 22 Power LED Monitor & Power Saving General Power Saving Mode When the power is on and video is present, this LED lights in green. The LED indicates the different power status with altered LED colors when monitor operates in different modes (see following table). Table 2 - Power Saving Indicator Power Mode...

  • Page 23: Chapter 4: Troubleshooting

    Chapter 4: Troubleshooting If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or our service center. Elo Technical Support numbers are listed on page 28. Solutions to Common Problems Problem Suggestion(s) •...

  • Page 24: Chapter 5: Native Resolution

    The native resolution of a monitor is the resolution level at which the LCD panel is designed to perform best. For the Elo Touch Solutions LCD touchmonitor, the native resolution is 1024 x 768 for the 15.0 inch size. In almost all cases, screen images look best when viewed at their native resolution.

  • Page 25: Chapter 6: Touchmonitor Safety

    Chapter 6: Touchmonitor Safety This manual contains information that is important for the proper setup and maintenance of your touchmonitor. Before setting up and powering on your new touchmonitor, read through this manual, especially Chapter 2 (Installation), and Chapter 3 (Operation). 1.

  • Page 26: Care And Handling Of Your Touchmonitor

    Care and Handling of Your Touchmonitor The following tips will help keep your Elo TouchSystems touchmonitor functioning at the optimal level. To avoid risk of electric shock, do not disassemble the power adaptor or monitor cabinet. The monitor is not user serviceable. Remember to unplug the monitor from the power outlet before cleaning.

  • Page 27: Chapter 7: Technical Specifications

    Chapter 7: Technical Specifications Display Modes Your Elo Touch Solutions touchmonitor is compatible with the following standard video modes: Table 3 – Monitor Modes Item Resolution Type H. Scan (KHz) V. Scan (Hz) Polarity 640X350 31.469 70.087 720X400 31.469 70.087...
  • Page 28 1528L - Touch Display Specifications Table 4 – Touch Display Specifications Parameter Value LCD Display 15.0” TFT Active Matrix Panel Pixel Pitch 0.297(H) x 0.297(V) mm Monitor Mode VGA 640 x 350 (70 Hz) VGA 720 x 400 (70 Hz) VGA 640 x 480 (60 / 72 / 75 Hz) SVGA 800 x 600 (56 / 60 / 72 / 75 Hz) XGA 1024 x 768 (60 / 70 / 75 Hz)
  • Page 29 Power Adapter Cord Selection North America Power Adapter Cord – Detachable, UL Listed, Type SJT 3 conductor, 18 AWG, configured load fittings terminating in molded on parallel blade. Grounding type hospital grade attachment plug, rated at a minimum of 3 amperes. Grounding reliability can only be achieved when the touchmonitor EQUIPMENT is connected to an equivalent receptacle marked “Hospital Only”...
  • Page 30 Cord selection for other than North America For 100 V ac or 220/230/240 V ac operation, the touchmonitor is provided with IEC 320 flexible power cords properly configured for the intended country other than North America. The NOMINAL cross-sectional area (mm2 CU) must be 0,75. For assistance in selecting the proper power cord contact the Elo TouchSystems distributor in your area or contact Elo TouchSystems directly (see Appendix D, page 29).
  • Page 31 Table 6 - HAR FLEXIBLE CORD Printed or Embossed Alternative Marking Harmonization Marking (May Utilizing Black-Red Yellow Approval Organization be Located On Jacket or Thread (Length of color Insulation of Internal Wiring) Section, mm) Comite Electrotechnique CEBEC <HAR> Belge (CEBEC) Verband Deutscher Elektrotechniker (VDE) <VDE>...

  • Page 32: Touchscreen Specifications

    Table 7 IntelliTouch (surface acoustic wave) Technology Touchscreen Specifications Mechanical Positional Accuracy Standard deviation of error is less than 0.080 in. (2.03 mm). Equates to less than ±1%. More than 100,000 touch points/in2 (15,500 touch Touchpoint Density points/cm2). Touch Activation Force Typically less than 3 ounces (85 grams).

  • Page 33: Specifications

    Table 8 AccuTouch (resistive) Technology Touchscreen Specifications Mechanical Construction Top: Polyester with outside hard-surface coating with clear or antiglare finish. Inside: Transparent conductive coating. Bottom: Glass substrate with uniform resistive coating. Top and bottom layers separated by Elo-patented separator dots. Positional Accuracy Standard deviation of error is less than 0.080 in.
  • Page 34 Table 9 CarollTouch (infrared) Technology Touchscreen Specifications Mechanical Input Method Input Method Finger or gloved hand activation Electrical Positional Accuracy Typical centroid accuracy: 2 mm with 1 mm STD error Resolution Touch point density is based on controller resolution of 4096 x 4096 Touch Activation Force No minimum touch activation force is required...

  • Page 35: Chapter 8: Contact Elo Touch Solutions

    Chapter 8: Contact Elo Touch Solutions Contact Elo TouchSystems Elo Touch Solutions, Inc. 301 Constitution Drive Menlo Park, CA 94025 1-800-557-1458 (telephone) 1-650-361-4722 (facsimile) www.elotouch.com Replacement Parts Item Part Number Medical grade power adapter E448370 Hospital Grade power cord, 10’...

  • Page 36: Chapter 9: Regulatory Information

    Chapter 9: Regulatory Information I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
  • Page 37 This equipment has been tested to the requirements for the CE Mark as required by Low Voltage Directive (LVD) 2006/95/EC indicated in European Standard EN60950-1 and the EMC Directive 2004/108/EC indicated in European Standard EN55022, EN61000-3-2, EN61000-3-3 and EN55024. D) General Information to all Users: This equipment generates, uses and can radiate radio frequency energy.

  • Page 38: Chapter 10: Warranty

    Chapter 10: Warranty Except as otherwise stated herein, or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the TouchMonitors and their components is 1 (one) year. Seller makes no warranty regarding the model life of components.
  • Page 39 Elo Touch Solutions Tel 1-650-361-4800 Tel +32(0)(16)35-2100 Tel +81(45)478-2161 Tel 786-923-0251 301 Constitution Drive Fax 1-650-361-4722 Fax +32(0)(16)35-2101 Fax +81(45)478-2180 Fax 305-931-0124 Menlo Park, CA 94025 customerservice@elotouch.com elosales@elotouch.com www.tps.co.jp www.elotouch.com.ar Copyright 2012 Elo Touch Solutions, Inc. All rights reserved. User Manual: 1528L  SW200095 Rev A, Page 39 of 39...
