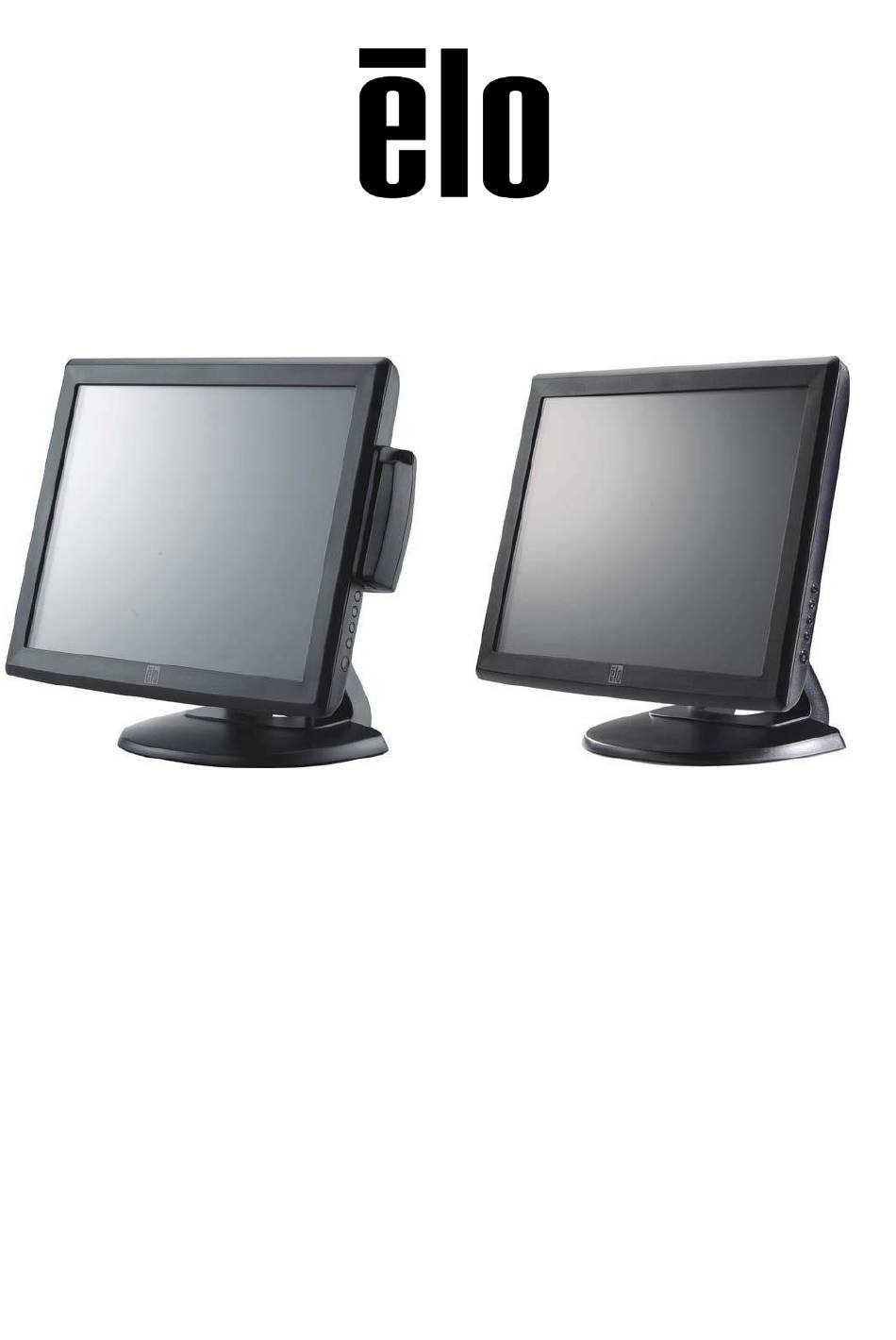

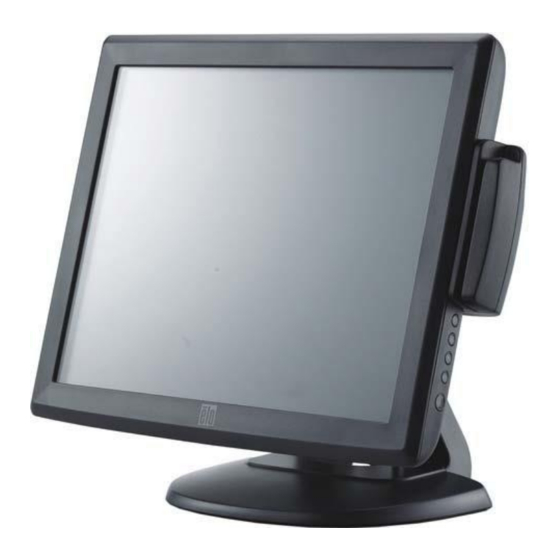

- Page 1 (shown with optional Magnetic Stripe Reader) Touchmonitor User Guide 1515L 15” LCD Desktop Touchmonitor (Optional Magnetic Stripe Reader Available) SW500951 Rev M...
- Page 2 Copyright © 2018 ELO Touch Solutions. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of ELO Touch Solutions.
-
Page 3: Table Of Contents
Table of Contents Chapter 4 Troubleshooting Solutions to Common Problems .........25 Chapter 1 Introduction Appendix A Product Description ............7 Native Resolution ............26 Precautions..............7 About the product ............8 Appendix B Chapter 2 Touchmonitor Safety ...........28 Installation and Setup Care and Handling of Your Touchmonitor ....29 Unpacking Your Touchmonitor ........9 Warning ..............29 Touch Interface Connection ........11... -
Page 4: Introduction
C H A P T E R NTRODUCTION Product Description Your new touchmonitor combines the reliable performance of touch technology with the latest advances in (LCD) display design. This combination of features creates a natural flow of information between a user and your touchmonitor. This LCD monitor incorporates a 15”... -
Page 5: About The Product
About the Product The 1515L LED Desktop Touchmonitor is a 15” color display with the following features: • The internal microprocessor digitally controls auto-scanning. For horizontal scan frequencies between 31.5 KHz and 60.2 KHz, and vertical scan frequencies between 56.3Hz and 75.0 Hz. In each frequency mode, the microprocessor-based circuitry allows the monitor to function at the precision-of a fixed frequency. -
Page 6: Installation And Setup
C H A P T E R NSTALLATION AND ETUP This chapter discusses how to install the 1515L LCD touchmonitor and the driver software. Unpacking Your Touchmonitor Check that the following items are present and in good condition: LCD monitor VGA cable USB cable CD and Quick Install Guide... - Page 7 Power cable for European models Europe/VDE power cable Power cable for Japan models Japanese/PSE power cable Adapter/Terminal Power cable for Asia models China/CCC power cable Taiwan/BSMI power cable Korea/KC power cable Power cable for Worldwide models USA/UL Power cable Europe/VDE power cable 2-10 User Guide...
-
Page 8: Touch Interface Connection
Touch Interface Connection Note: Before connecting the cables to your touchmonitor and PC, be sure that the computer and touchmonitor are turned off. 1. Connect one end of the power cord to the monitor and the other end to the AC outlet. 2. -
Page 9: Product Overview
Product Overview Main Unit Rear View Kensington Lock The Kensington lock is a security device that prevents theft. To find out more about this security device, go to http://www.kensington.com. 2-12 User Guide... - Page 10 Installing the Driver Software Elo TouchSystems provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM for the following operating systems: • Windows 7 • Windows Vista • Windows XP • Windows 2000 •...
-
Page 11: Installing The Touch Driver Software
Installing the Serial Touch Driver (not applicable to Acoustic Pulse Recognition and Projected-Capacitive monitor) Installing the Serial Touch Driver for Windows 7, Windows Vista, Windows XP, Windows 2000, 98/95, ME and NT4.0. NOTE: For Windows 2000 and NT4.0 you must have administrator access rights to install the driver. Make sure the serial connector (RS232) is plugged into the monitor and an open com port on the PC. -
Page 12: Installing The Serial Touch Driver For Windows 3.1 And Ms-Dos
Installing the Serial Touch Driver for Windows 3.1 and MS-DOS You must have a DOS mouse driver (MOUSE.COM) installed for your mouse if you wish to continue using your mouse along with your touchmonitor in DOS. To install Windows 3.x and MS-DOS touch driver from Windows 98/95, follow the directions below: 1 Insert the CD-ROM in your computer’s CD-ROM drive. -
Page 13: Installing The Usb Touch Driver
Installing the USB Touch Driver Installing the USB Touch Driver for Windows 7, Windows Vista, Windows XP, Windows 2000, ME and Windows 98. 1 Insert the Elo CD-ROM in your computer’s CD-ROM drive. If Windows 2000 or Windows 98 starts the Add New Hardware Wizard, do the following: 2 Choose Next. -
Page 14: Installing Apr Usb Touch Driver For Windows 7, Windows Vista And Windows Xp
Installing APR USB Touch Driver for Windows 7, Windows VISTA and Windows XP Insert the Elo CD-ROM in your computer’s CD-ROM driver. Follow the directions on the screen to complete the APR 3.1 driver setup for your version of Windows. Do not plug USB cable until software is fully loaded. When finished, plug USB cable and alignment data is transferred. -
Page 15: Operation
C H A P T E R PERATION About Touchmonitor Adjustments Your touchmonitor will not likely require adjustment. However, variations in video output and application may require adjustments to the touchmonitor to optimize the quality of the display. For best performance, your touchmonitor should be operating in native resolution, that is 1024 x 768 at 80k-75 Hz. -
Page 16: Side Panel Controls
Side Panel Controls Control Function 1 Menu/Exit Display/Exits the OSD menus. 1. Enter contrast of the OSD. 2. Increase value of the adjustment item. 3. Move OSD selection clockwise. 1. Enter brightness adjustment. 2. Decrease value of the adjustment item. 3. -
Page 17: Controls And Adjustment
Controls and Adjustment OSD Menu Functions To Display and Select the OSD Functions: 1. Press the Menu key to activate the OSD menu. to move clockwise, or counterclockwise through the menu. Press the “Select” 2. Use key, the parameter will be highlighted when selected. 3. -
Page 18: Osd Control Options
OSD Control Options Control Description Brightness Increases or decreases brightness Contrast Increases or decreases contrast H-Position Moves the screen left or right V-Position Moves the screen up or down Phase Increases or decreases the snow noise of the image after auto adjustment is made. -
Page 19: Preset Modes
Preset Modes To reduce the need for adjustment for different modes, the monitor has default setting modes that are most commonly used as given in the table below. If any of these display modes are detected, the monitor automatically adjusts the picture size and centering. When none of the mode is matched, the user can store their preferred modes in the user modes. -
Page 20: Power Management System
Power Management System The monitor is equipped with the power management function which automatically reduces the power consumption when not in use. Power Mode Consumption <13W Sleep <3W <1W It is recommend to switch the monitor off when it is not in use for a long time. The monitor automatically goes through the Power Management System (PMS) steps NOTE: when it is idle. -
Page 21: Projected-Capacitive Touch Technology
Projected-Capacitive Touch Technology When connected to Windows 7 computers, the touchmonitor can report 2 simultaneous touches. When connected to Windows XP computers, the touchmonitor reports single touches. No additional drivers are required for this technology to work, it uses Windows HID drivers. No calibration is required for this technology. -
Page 22: Troubleshooting
C H A P T E R ROUBLESHOOTING If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or the Elo service center. Solutions to Common Problems Problem Suggestion(s) The monitor does not respond 1. -
Page 23: Appendix A Native Resolution
A P P E N D I X ATIVE ESOLUTION The native resolution of a monitor is the resolution level at which the LCD panel is designed to perform best. For the LCD touchmonitor, the native resolution is 1024 x 768 for the 15 inch size. In almost all cases, screen images look best when viewed at their native resolution. - Page 24 As an example, a SVGA resolution LCD panel has 800 pixels horizontally by 600 pixels vertically. Input video is also represented by the same terms. XGA input video has a format of 1024 pixels horizontally by 768 pixels vertically. When the input pixels contained in the video input format match the native resolution of the panel, there is a one to one correspondence of mapping of input video pixels to LCD pixels.
-
Page 25: Appendix B Touchmonitor Safety
A P P E N D I X OUCHMONITOR AFETY This manual contains information that is important for the proper setup and maintenance of your touchmonitor. Before setting up and powering on your new touchmonitor, read through this manual, especially Chapter 2 (Installation), and Chapter 3 (Operation). 1 To reduce the risk of electric shock, follow all safety notices and never open the touchmonitor case. -
Page 26: Care And Handling Of Your Touchmonitor
Care and Handling of Your Touchmonitor The following tips will help keep your touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the brick power supply or display unit cabinet. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning. -
Page 27: Technical Specifications
A P P E N D I X ECHNICAL PECIFICATIONS C-30... -
Page 28: Touchmonitor Specifications
Touchmonitor Specifications Model 1515L LCD Display Active Matrix TFT LCD with LED backlighting Display Size 304.(H) x 228.(V) mm Pixel Pitch 0.297(H) x 0.297(V) mm Display Mode VGA 640 x 350 (70Hz) VGA 720 x 400 (70Hz) VGA 640 x 480 (60 / 72/ 75Hz) SVGA 800 x 600 (56 / 60 / 72/ 75Hz) XGA 1024 x 768 (60 / 70 / 75Hz) Max. -
Page 29: 15" Lcd Touchmonitor (1515L) Dimensions
15" LCD Touchmonitor (1515L) Dimensions C-32... - Page 30 EGULATORY NFORMATION I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
- Page 31 This Information Technology Equipment (ITE) is required to have a CE Mark on the manufacturer’s label which means that the equipment has been tested to the following Directives and Standards: This equipment has been tested to the requirements for the CE Mark as required by EMC Directive 2014/30/EU indicated in European Standard EN 55032 Class B and the Low Voltage Directive 2014/30/EU as indicated in European Standard EN 60950-1.
- Page 32 2 November 2018 FCC Declaration of Conformity Per FCC 47 CFR FCC Part15 subpart B Section 2.1077(a) In accordance with FCC Rules and Regulations Model Number: ET1515L/ET1715L/ET1915L Series Equipment Category: Information Technology and Telecommunications Equipment Equipment Class: Commercial and Light Industrial Product Name: Monitor Manufacturer:...
- Page 33 III. Agency Certifications The following certifications have been issued for this monitor: • Australia C-Tick • Canada cUL • Canada IC • China CCC (Asia models only) • China RoHS (Asia models only) • Europe CE • Japan VCCI • United States FCC •...
- Page 34 ARRANTY Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchmonitors and components of the product is 3 (three) years. Seller makes no warranty regarding the model life of components.
- Page 35 THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE.
- Page 36 Check out Our Website! www.elotouch.com Get the latest... • Product Information • Specifications • Upcoming events • Press releases • Software drivers Getting in Touch with us To find out more about the extensive range of Elo touch solutions, visit our website at www.elotouch.com, or simply call the office nearest you: North America Tel 800-ELO-TOUCH...
