USER MANUAL
Elo Touch Solutions
1509L Touchmonitors
User Manual – 1509L
SW601532 Rev D
-
Page 1 of 21

Advertisement

loading
Need help?

Need help?

Do you have a question about the E534869 and is the answer not in the manual?

Questions and answers

Summary of Contents for Elo TouchSystems E534869

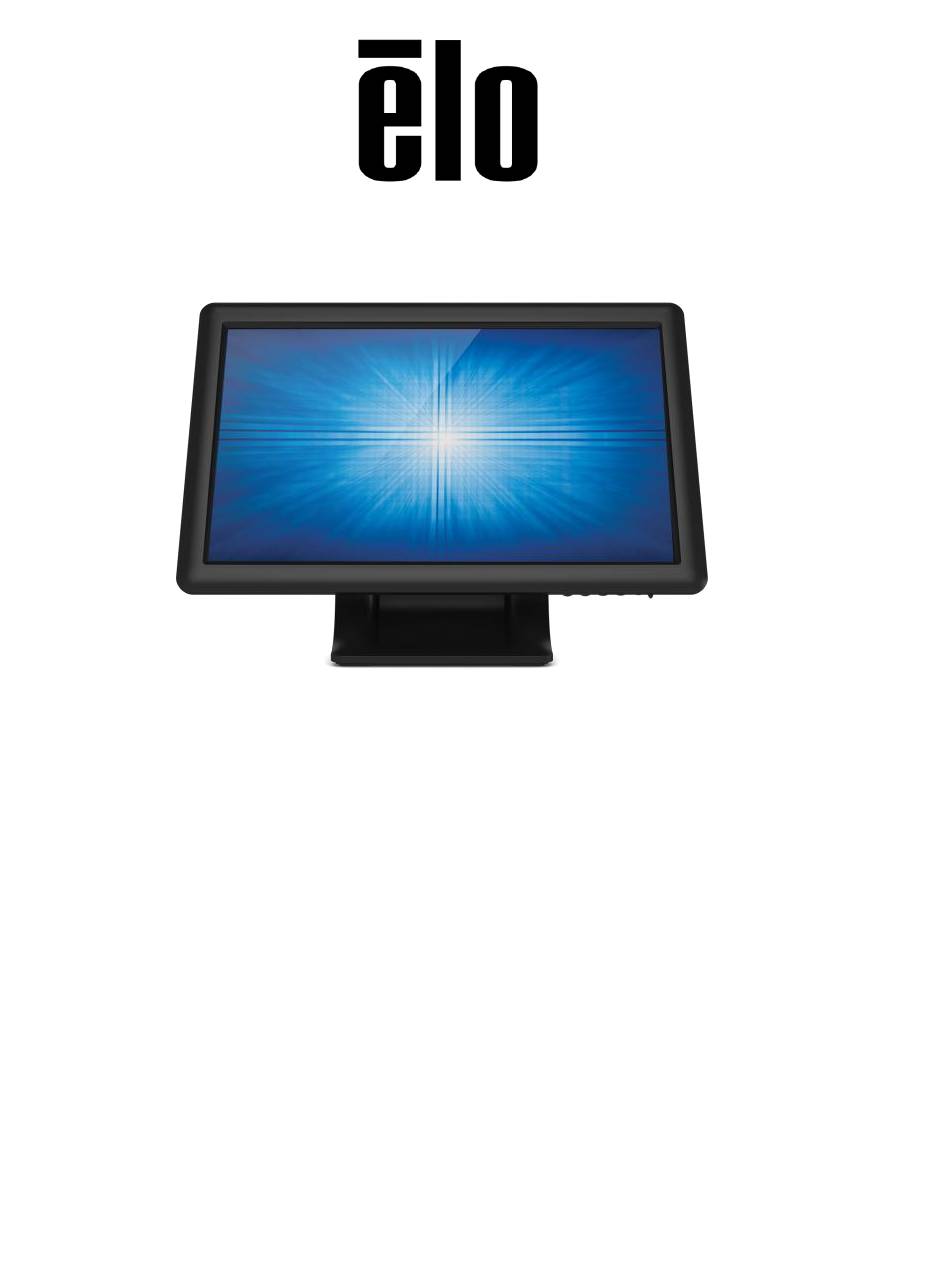

  • Page 1 USER MANUAL Elo Touch Solutions 1509L Touchmonitors User Manual – 1509L SW601532 Rev D Page 1 of 21...
  • Page 2 Copyright © 2017 ELO Touch Solutions. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of ELO Touch Solutions.
  • Page 3: Table Of Contents

    Table of Contents Chapter 1 - Introduction ................4 Chapter 2 – Installation ................5 Chapter 3 – Mounting ................11 Chapter 4 – Operation ................12 Chapter 5 – Technical Support ............... 15 Chapter 6 – Safety & Maintenance ............
  • Page 4: Chapter 1 - Introduction

    Chapter 1 - Introduction Product Description Your new touchmonitor combines the reliable performance of Elo Touch Solutions touch products with the latest developments in touch technology and display design. This combination of features creates a natural flow of information between a user and the touchmonitor. This widescreen touchmonitor incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to provide high quality display performance.
  • Page 5: Chapter 2 -Installation

    Chapter 2 –Installation Unpacking the Touchmonitor Open the carton and verify that the following items are present: • Touchmonitor with protective sheet for its face • User Manuals CD • Japanese language regulatory information pamphlet • Quick Install Guide • VGA cable •...
  • Page 6 Installing the Touch Technology Software Drivers Elo TouchSolutions provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM for the following operating systems: • Windows 7 • Windows Vista • Windows XP •...
  • Page 7 Select the applicable driver from the Elo Touch Solutions website and download: For Windows 7 installations, double-click on EloSetup Installer User Manual – 1509L SW601532 Rev D Page 7 of 21...
  • Page 8 After accepting the end-user license agreement, the system will initialize to setup installation of drivers. To complete setup, reboot system by clicking on “Reboot Now” button. Click on “One More Minute” if more time is needed with increments of 1 minute. Note: System will automatically reboot when “Time left”...
  • Page 9 For Windows XP installations, double-click on the icon from the desktop Click on “Unzip” button to unzip files. User Manual – 1509L SW601532 Rev D Page 9 of 21...
  • Page 10 Select one or more of the drivers to install. Click on “Next” After accepting the end-user license agreement, the drivers will finish installing. Reboot your computer after the install is complete. User Manual – 1509L SW601532 Rev D Page 10 of 21...
  • Page 11: Chapter 3 - Mounting

    Chapter 3 – Mounting General Mounting Information The OSD text can be rotated through the OSD menu to better suit your mounting orientation. Rear VESA Mount A four-hole 75x75mm mounting pattern for M4 screws is provided on the rear of the monitor. Remove the stand using a Phillips screwdriver to access this mounting interface.
  • Page 12: Chapter 4 - Operation

    Chapter 4 – Operation Power To turn the touchmonitor on or off, press the touchmonitor power button once. The Power Status LED on the bottom of the touchmonitor functions according to the following table: TouchMonitor/Computer Module status LED status SLEEP PULSING The system consumes low power when in SLEEP and OFF modes.
  • Page 13 On-Screen Display (OSD) Four OSD buttons are on the bottom of the monitor. These can be used to adjust various display parameters. The buttons and their functionality are: Button Function when OSD is not displayed: Function when OSD is displayed: Menu Display OSD main menu Return to previous OSD menu...
  • Page 14 Switches the scaling method between Full Scaling and Maintain Aspect Ratio. Default: Full Scaling Full Scaling – scales the X- and Y-dimensions of the input video (up or down as needed) to the display’s native resolution. Fill To Aspect Ratio – Assuming a landscape orientation and an input video with aspect Aspect Ratio ratio smaller than 1366 x 768, scales the Y-dimension of the input video (up or down as needed) to the display’s Y-resolution, and scales the X-dimension to maintain the input...
  • Page 15: Chapter 5 - Technical Support

    Chapter 5 – Technical Support If you are experiencing trouble with your touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Solutions to Common Problems Problem Suggested Troubleshooting Check that the DC power adaptor is properly The touchmonitor does not respond when connected.
  • Page 16: Chapter 6 - Safety & Maintenance

    Chapter 6 - Safety & Maintenance Safety To avoid risk of electric shock, follow all safety notices and do not disassemble the touchmonitor. They are not user-serviceable. Ensure that your installation is equipped to maintain the specified environmental conditions listed in the Technical Specifications chapter.
  • Page 17: Chapter 7 - Regulatory Information

    Chapter 7 – Regulatory Information I. Electrical Safety Information: Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
  • Page 18 different branch circuits. v) Disconnect and remove any I/O cables that the digital device does not use.(Unterminated I/O cables are a potential source of high RF emission levels.) vi) Plug the digital device into only a grounded outlet receptacle. Do not use AC adapter plugs. (Removing or cutting the line cord ground may in crease RF emission levels and may also present a lethal shock hazard to the user.) If you need additional help, consult your dealer, manufacturer, or an experienced radio or...
  • Page 19 Explanation of Markings (1). In accordance with the SJ/T11364-2006 requirement, the electronic information products are marked with the following pollution control logo. The Environment-Friendly Use Period for this product is 10 years. The product will not leak or mutate under normal operating conditions listed below, so that the use of this electronic information product will not result in any severe environmental pollution, any bodily injury, or damage to any assets.
  • Page 20: Chapter 8 - Warranty Information

    Chapter 8 – Warranty Information Except as otherwise stated herein, or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the TouchMonitors and their components is 2 (two) year.
  • Page 21 Check out Our Website! www.elotouch.com Get the latest... • Product Information • Specifications • Upcoming events • Press releases • Software drivers Getting in Touch with us To find out more about the extensive range of Elo touch solutions, visit our website at www.elotouch.com, or simply call the office nearest you: North America Tel 800-ELO-TOUCH...
