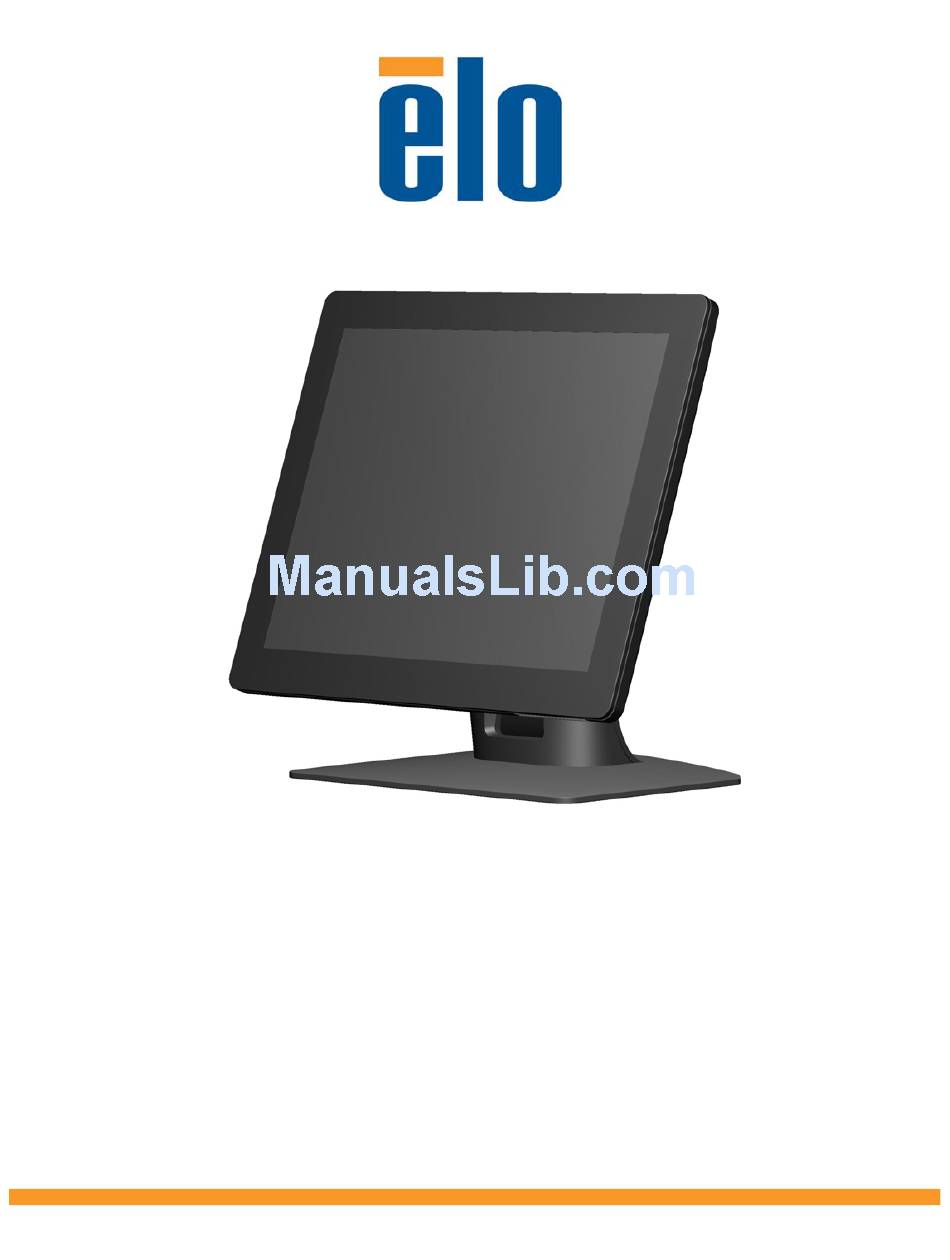

USER MANUAL
Elo Touch Solutions
1517L and 1717L Touchmonitors
SW601708 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1517L and is the answer not in the manual?

Questions and answers

Related Manuals for Elo TouchSystems 1517L

Summary of Contents for Elo TouchSystems 1517L

  • Page 1 USER MANUAL Elo Touch Solutions 1517L and 1717L Touchmonitors SW601708 Rev A...
  • Page 2 Elo to notify any person of such revisions or changes. Trademark Acknowledgments AccuTouch, CarrollTouch, Elo (logo), Elo Touch Solutions, Elo TouchSystems, IntelliTouch, iTouch, are trademarks of Elo and its Affiliates. Windows is a trademark of Microsoft Corporation. User Manual: 1517L, 1717L...

  • Page 3: Table Of Contents

    Table of Contents Chapter 1: Introduction ...................4 Chapter 2: Installation .....................5 Chapter 3: Mounting ....................10 Chapter 4: Operation .....................12 Chapter 5: Technical Support ................16 Chapter 6: Safety & Maintenance ..............17 Chapter 7: Regulatory Information ..............19 Chapter 8: Warranty Information ...............23 User Manual: 1517L, 1717L SW601708 Rev A, Page 3 of 27...

  • Page 4: Chapter 1: Introduction

    Chapter 1: Introduction Product Description Your new touchmonitor combines the reliable performance of Elo Touch Solutions touch products with the latest developments in touch technology and display design. This combination of features creates a natural flow of information between a user and the touchmonitor. This widescreen touchmonitor incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to provide high quality display performance.

  • Page 5: Chapter 2: Installation

    Chapter 2: Installation Unpacking the Touchmonitor Open the carton and verify that the following items are present:  Touchmonitor with protective sheet for its face  Elo TouchTools CD & User Manuals CD  Japanese language regulatory information pamphlet  Quick Install Guide ...
  • Page 6 Connector Panel & Interfaces Touchmonitor Connections 1. Connect the VGA video cables between the monitor’s VGA input connectors and your VGA video source, respectively. Tighten the video cable’s screws for best performance. 2. Connect the USB touch cable between the monitor’s USB connector and your PC’s USB port.
  • Page 7 Installing the Touch Technology Software Drivers Some software installation is required for your touchmonitor to work with your computer. The drivers for the Windows 7, XP, Vista, WePOS, and 32-bit Server 2003 and 2008 operating systems are provided with your touchmonitor on a CD. Visit www.elotouch.com for: The most up-to-date touch driver versions ...
  • Page 8 For Windows XP, Vista, Server 2003, Server 2008, and WEPOS installations, install the “USB Touchscreen Drivers” when prompted: User Manual: 1517L, 1717L SW601708 Rev A, Page 8 of 27...
  • Page 9 For Windows 7 installations, check the “Install driver” box under “Elo USB Interfaces – Other Touchscreens” After accepting the end-user license agreement, the drivers will finish installing. Reboot your computer after the install is complete. User Manual: 1517L, 1717L SW601708 Rev A, Page 9 of 27...

  • Page 10: Chapter 3: Mounting

    Chapter 3: Mounting General Mounting Information The OSD text can be rotated through the OSD menu to better suit your mounting orientation. Rear VESA Mount For the 15 inch touchmonitor, a four-hole 75x75mm mounting pattern for M4 screws is provided on the rear of the monitor.
  • Page 11 For the 17 inch touchmonitor, a four-hole 75x75mm mounting pattern for M4 screws is provided on the rear of the monitor. Remove the stand using a Phillips screwdriver to access this mounting interface. The VESA FDMI-compliant counting is coded: VESA MIS-B, 75, C. User Manual: 1517L, 1717L SW601708 Rev A, Page 11 of 27...
  • Page 12 Base Mount For the 15 inch touchmonitor, a threaded three-hole mounting pattern for M4 screws is provided on the bottom of stand base for mounting or securing. User Manual: 1517L, 1717L SW601708 Rev A, Page 12 of 27...
  • Page 13 For the 17 inch touchmonitor, a threaded three-hole mounting pattern for M4 screws is provided on the bottom of stand base for mounting or securing. User Manual: 1517L, 1717L SW601708 Rev A, Page 13 of 27...

  • Page 14: Chapter 4: Operation

    Chapter 4: Operation Power To turn the touchmonitor on or off, press the touchmonitor power button once. The Power Status LED on the bottom of the touchmonitor functions according to the following table: TouchMonitor/Computer Module status LED status SLEEP PULSING The system consumes low power when in SLEEP and OFF modes.
  • Page 15 Video A display’s native resolution is its width and height measured in number of pixels. Generally, for best performance, an image displayed on this monitor will look best when your computer’s output resolution matches this monitor’s native resolution, which is 1024 x 768 for the 15 inch, and 1280 x 1024 for the 17 inch.
  • Page 16 Using the OSD buttons controls an on-screen graphical user interface which displays on top of your input video, allowing intuitive adjustment of the following display parameters: Parameter Available Adjustment Increase/decrease monitor brightness. Brightness Default: maximum Increase/decrease monitor contrast. Contrast Default: best gray-shade performance Clock Allows fine adjustments of the panel’s pixel dot clock.
  • Page 17 All touchmonitor adjustments made through the OSD are automatically memorized as soon as they are entered. This feature saves you from having to reset your choices every time the touchmonitor is unplugged or powered off and on. If there is a power failure, the touchmonitor settings will not default to the factory specifications.

  • Page 18: Chapter 5: Technical Support

    Chapter 5: Technical Support If you are experiencing trouble with your touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Solutions to Common Problems Problem Suggested Troubleshooting Check that the DC power adaptor is properly The touchmonitor does not respond when connected.
  • Page 19 Technical Assistance Visit www.elotouch.com/products for technical specifications for this device Visit www.elotouch.com/go/websupport for online self-help. Visit www.elotouch.com/go/contactsupport for technical support. See this user manual’s last page for worldwide technical support phone numbers. User Manual: 1517L, 1717L SW601708 Rev A, Page 19 of 27...

  • Page 20: Chapter 6: Safety & Maintenance

    Chapter 6: Safety & Maintenance Safety To avoid risk of electric shock, follow all safety notices and do not disassemble the touchmonitor. They are not user-serviceable. Ensure that your installation is equipped to maintain the specified environmental conditions listed in the Technical Specifications chapter. Care and Handling The following tips will help keep your touchmonitor functioning at an optimal level: Disconnect the AC power cable before cleaning.
  • Page 21 Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual: 1517L, 1717L SW601708 Rev A, Page 21 of 27...

  • Page 22: Chapter 7: Regulatory Information

    Chapter 7: Regulatory Information I. Electrical Safety Information: Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
  • Page 23 as required by EMC Directive 2004/108/EC as indicated in European Standard EN 55022 Class B and the Low Voltage Directive 2006/95/EC as indicated in European Standard EN 60950. General Information to all Users: This equipment generates, uses and can radiate radio frequency energy.
  • Page 24 III. Agency Certifications The following certifications and marks have been issued or declared for this monitor: Australia C-Tick Japan VCCI United States FCC, Canada CUL, IC Korea KCC China CCC Mexico CoC Europe CE Taiwan BSMI IV. China RoHS In accordance to Chinese law (Administration on the Control of Pollution Caused by Electronic Information Products), the section below lists out the name and amount of the toxic and/or hazardous materials that this product may contain.
  • Page 25 Explanation of Markings (1). In accordance with the SJ/T11364-2006 requirement, the electronic information products are marked with the following pollution control logo. The Environment-Friendly Use Period for this product is 10 years. The product will not leak or mutate under normal operating conditions listed below, so that the use of this electronic information product will not result in any severe environmental pollution, any bodily injury, or damage to any assets.

  • Page 26: Chapter 8: Warranty Information

    Chapter 8: Warranty Information Except as otherwise stated herein, or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the TouchMonitors and their components is 3 (three) years. Seller makes no warranty regarding the model life of components.
  • Page 27 Check out Our Website! www.elotouch.com Get the latest...  Product Information  Specifications  News on upcoming events  Press releases  Software drivers  TouchMonitor Newsletter Getting in Touch with us To find out more about the extensive range of Elo touch solutions, visit our website at www.elotouch.com, or simply call the office nearest you: North America Tel 800-ELO-TOUCH...
