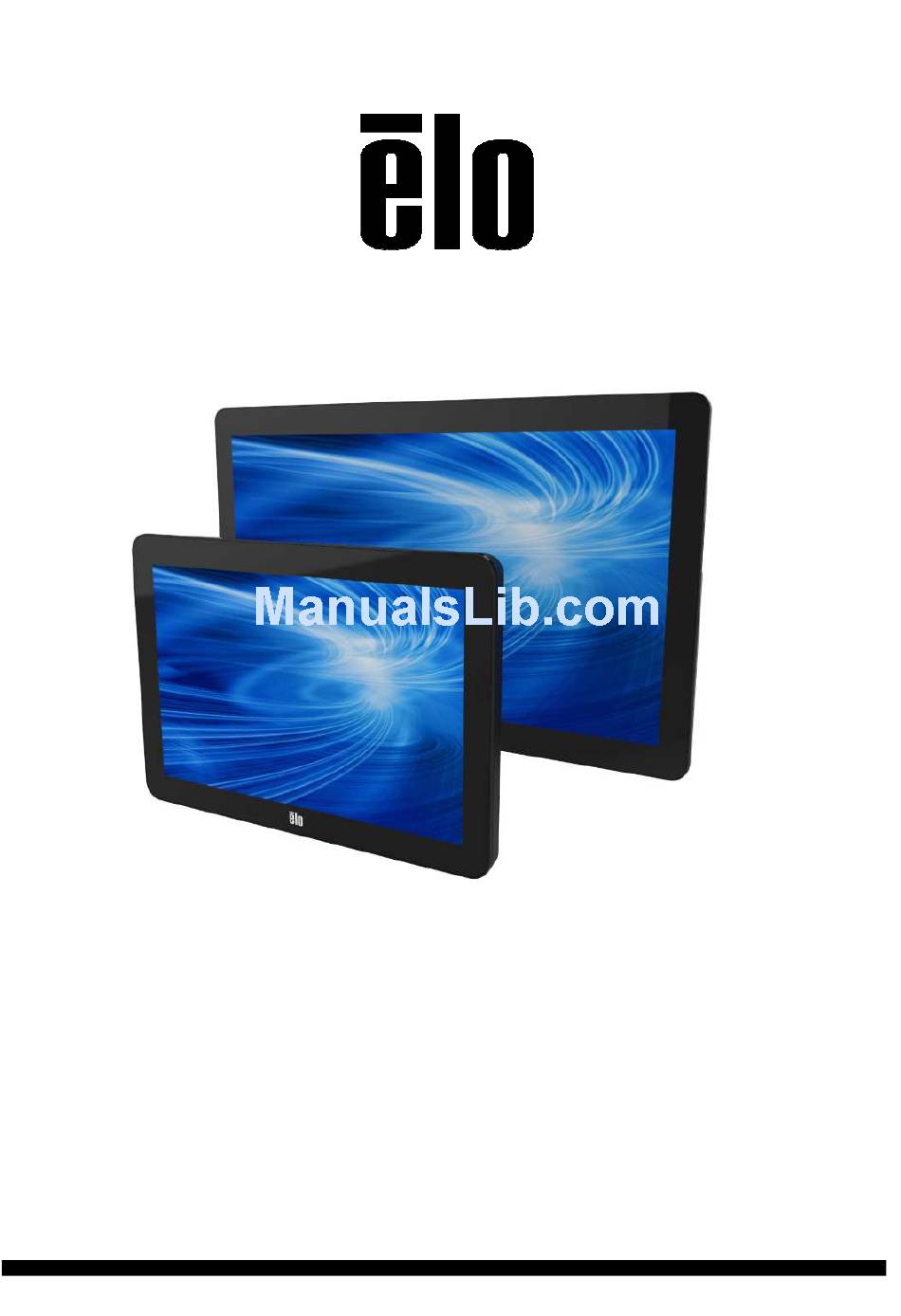

  • Page 1 USER MANUAL Elo Touch Solutions 1002L and 1502L Touchmonitors UM600012 Rev A...
  • Page 2 Trademark Acknowledgments Elo (logo), Elo Touch Solutions, IntelliTouch, iTouch, are trademarks of Elo and its Affiliates. Windows is a trademark of Microsoft Corporation. User Manual: 1002L, 1502L UM600012 Rev A, Page 2 of 25...
  • Page 3: Table Of Contents

    Chapter 4: Operation ..................... 11 Chapter 5: Technical Support ................16 Chapter 6: Safety & Maintenance ..............18 Chapter 7: Regulatory Information ..............20 Chapter 8: Warranty Information ............... 24 User Manual: 1002L, 1502L UM600012 Rev A, Page 3 of 25...
  • Page 4: Chapter 1: Introduction

    This manual contains information that is important for the proper setup and maintenance of the unit. Before setting up and powering on your new touchmonitor, read through this manual, especially the Installation, Mounting, and Operation chapters. User Manual: 1002L, 1502L UM600012 Rev A, Page 4 of 25...
  • Page 5: Chapter 2: Installation

    Chapter 2: Installation Unpacking the Touchmonitor Open the carton and verify that the following items are present: • Touchmonitor with Stand (Stand is not included with 1002L monitor) • User Manuals CD • Japanese language regulatory information pamphlet • Quick Install Guide •...
  • Page 6 The stand of the touchmonitor can be converted between two positions: the low profile “hostess” position and the high profile “upright” position. The touchmonitor ships in the low profile “hostess” position. (1002L monitor does not ship with a stand) Low profile (“hostess”) position To convert the stand into the high profile “upright”...
  • Page 7 Connect the power adaptor’s DC output connector to the monitor’s input power jack. 5. The touchmonitor ships in an OFF state. Press the power button to turn it on. User Manual: 1002L, 1502L UM600012 Rev A, Page 7 of 25...
  • Page 8 6. Enter you email address, Click on “Next Step”. Your driver download will start automatically. 7. If you are a new user, fill in the required information and Click on “Register”. Your driver download will start automatically. User Manual: 1002L, 1502L UM600012 Rev A, Page 8 of 25...
  • Page 9: Chapter 3: Mounting

    Remove the stand using a Phillips screwdriver to access this mounting interface. The VESA FDMI-compliant counting is coded: VESA MIS-B, 75, C and VESA MIS-B, 100, C. User Manual: 1002L, 1502L UM600012 Rev A, Page 9 of 25...
  • Page 10 Base Mount For the 15-inch touchmonitor, a threaded three-hole mounting pattern for M4 screws is provided on the bottom of stand base for mounting or securing. User Manual: 1002L, 1502L UM600012 Rev A, Page 10 of 25...
  • Page 11: Chapter 4: Operation

    No additional drivers are required for this technology to work with Windows 7 and 8, it uses Windows HID drivers. Refer to Chapter 2, Section “Installing the Touch Technology Software Drivers” to find instructions to download touch drivers for Windows XP. User Manual: 1002L, 1502L UM600012 Rev A, Page 11 of 25...
  • Page 12 Refer to the technical specifications for this monitor at http://www.elotouch.com for a list of these Preset Video Modes. User Manual: 1002L, 1502L UM600012 Rev A, Page 12 of 25...
  • Page 13 Moves the image horizontally on the display in single-pixel increments H-position Default: Centered Only applicable for VGA input video Moves the image vertically on the display in single-pixel increments V-position Default: Centered Only applicable for VGA input video User Manual: 1002L, 1502L UM600012 Rev A, Page 13 of 25...
  • Page 14 This feature saves you from having to reset your choices every time the touchmonitor is unplugged or powered off and on. If there is a power failure, the touchmonitor settings will not default to the factory specifications. User Manual: 1002L, 1502L UM600012 Rev A, Page 14 of 25...
  • Page 15 Press and hold the “Menu” and “Down” buttons for two seconds to enable/disable the Power Locking feature. When the Power Locking is enabled, pressing the power switch will have no effect on the system. User Manual: 1002L, 1502L UM600012 Rev A, Page 15 of 25...
  • Page 16: Chapter 5: Technical Support

    Perform the calibration routine provided with the latest Elo drivers The OSD buttons or power button does not Check to see if the OSD lock or power lock functions respond when pressed are on User Manual: 1002L, 1502L UM600012 Rev A, Page 16 of 25...
  • Page 17 Visit www.elotouch.com/products for technical specifications for this device Visit www.elotouch.com/go/websupport for online self-help. Visit www.elotouch.com/go/contactsupport for technical support. See this user manual’s last page for worldwide technical support phone numbers. User Manual: 1002L, 1502L UM600012 Rev A, Page 17 of 25...
  • Page 18: Chapter 6: Safety & Maintenance

    To clean the touchscreen, use window or glass cleaner applied to a clean cloth or sponge. Never apply the cleaner directly to the touchscreen. Do not use alcohol (methyl, ethyl or isopropyl), thinner, benzene, or other abrasive cleaners. User Manual: 1002L, 1502L UM600012 Rev A, Page 18 of 25...
  • Page 19 Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual: 1002L, 1502L UM600012 Rev A, Page 19 of 25...
  • Page 20: Chapter 7: Regulatory Information

    This Information Technology Equipment (ITE) is required to have a CE Mark on the Manufacturer’s label which means that the equipment has been tested to the following Directives and Standards: This equipment has been tested to the requirements for the CE Mark User Manual: 1002L, 1502L UM600012 Rev A, Page 20 of 25...
  • Page 21 (Removing or cutting the line cord ground may in crease RF emission levels and may also present a lethal shock hazard to the user.) If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician. User Manual: 1002L, 1502L UM600012 Rev A, Page 21 of 25...
  • Page 22 X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this component is above the limit requirement in SJ/T11363-2006. For items marked with X, exemptions were taken according to EU RoHS. User Manual: 1002L, 1502L UM600012 Rev A, Page 22 of 25...
  • Page 23 V. Power Adapter Specifications Electrical Ratings: Input: 100-240VAC, 50-60Hz Output: 12VDC, minimum 3.33A, LPS VI. Monitor Specifications Electrical Ratings: 1002L Input: 12VDC, 2A 1502L Input: 12VDC, 3A Operating Conditions: Temperature: 0°C - 40°C Humidity: 20% to 80% (non-condensing) Altitude: 0 to 3,048m Storage Conditions: Temperature: -20°C - 60°C...
  • Page 24: Chapter 8: Warranty Information

    Buyer. Buyer will indemnify Seller and hold Seller harmless from any liability, claims, loss, cost, or expenses (including reasonable attorney’s fees) attributable to Buyer’s products or representations or warranties concerning same. User Manual: 1002L, 1502L UM600012 Rev A, Page 24 of 25...
  • Page 25 Fax +32 (0) 16 70 45 49 Fax +86 (21) 3329 1400 Fax 305-931-0124 Milpitas, CA 95035 customerservice@elotouch.com elosales@elotouch.com www.elotouch.com.cn www.elotouch.com Copyright 2015 Elo Touch Solutions, Inc. All rights reserved. User Manual: 1002L, 1502L UM600012 Rev A, Page 25 of 25...
