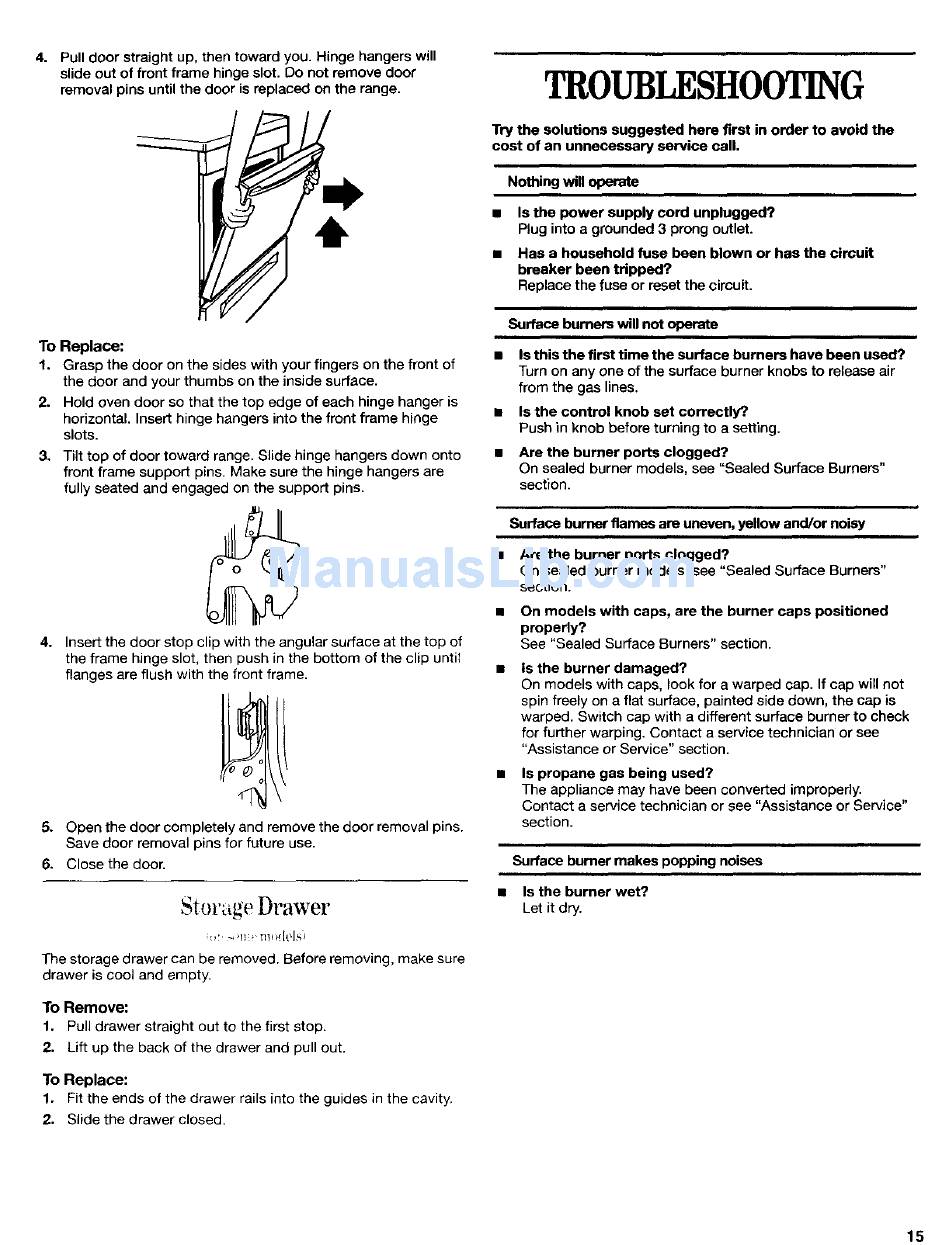

Troubleshooting - Whirlpool SF367LEK Use & Care Manual

4. Pull door straight up, then toward you. Hinge hangers will
slide out of front frame hinge slot. Do not remove door
removal pins until the door is replaced on the range.
TROUBLESHOOTING
Try the solutions suggested here first in order to •void the
cost of an unnecessary service call.
Nothing will operate
• Is the power supply cord unplugged?
Plug into a grounded 3 prong outlet.
• Has a household fuse been blown or has th• circuit
breaker been tripped?
Replace the fuse or reset the circuit.
Surface burners will not operate
To Replace: •
1. Grasp the door on the sides wRh your fingers on the front of
the door and your thumbs on the inside surface.
2. Hold oven door so that the top edge of each hinge hanger is
horizontal. Insert hinge hangers into the front frame hinge •
slots.
3. Tilt top of door toward range. Slide hinge hangers down onto
front frame support pins. Make sure the hinge hangers are
fully seated and engaged on the support pins.
Is this the first time the surface burners have been used?
Turn on any one of the surface burner knobs to release air
from the gas lines.
Is the control knob set correctly?.
Push in knob before turning to a setting.
Are the burner ports clogged?
On sealed burner models, see "Sealed Surface Burners"
section.
Surface burner flames are uneven, yellow and/or noisy
• Are the burner ports clogged?
On sealed burner models, see "Sealed Surface Burners"
section.
4. Insert the door etop clip with the angular surface at the top of
the frame hinge slot, then push in the bottom of the clip until
flanges are flush with the front frame. •
5. Open the door completely and remove the door removal pins.
Save door removal pins for future use.
6. Close the door.
Stor geDrawer
The storage drawer can be removed. Before removing, make sure
drawer is cool and empty.
To Remove:
1. Pall drawer straight out to the first stop.
2. Lift up the back of the drawer and pull out.
To Replace:
1. Fit the ends of the drawer rails into the guides in the cavity.
2. Slide the drawer closed.
On models with caps, are the burner caps positioned
properly?
See "Sealed Surface Burners" section.
Is the burner damaged?
On models with caps, look for a warped cap. If cap will not
spin freely on a flat surface, painted side down, the cap is
warped. Switch cap with a different surface burner to check
for further warping. Contact a service technician or see
"Assistance or Service" section.
Is propane gas being used?
The appliance may have been converted improperly.
Contact a service technician or see "Assistance or Service"
section.
Surface burner makes popping noises
• Is the burner wet?
Let it dF_
15
