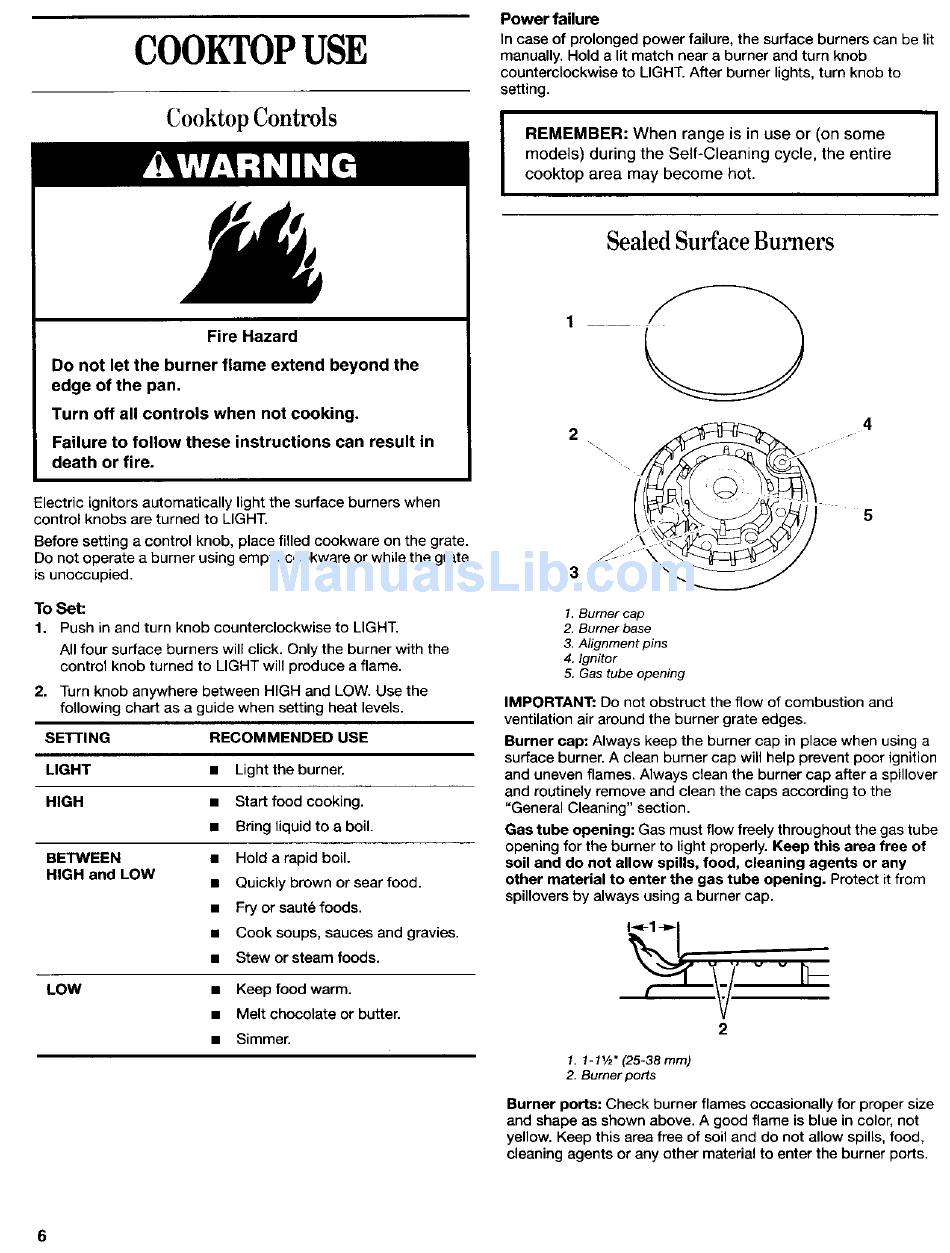

COOKTOP U SE
Cooktop Controls
Fire Hazard
Do not let the burner flame extend beyond the
edge of the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can result in
death or fire.
Electric ignitors automatically light the surface burners when
control knobs are turned to LIGHT.
Before setting a control knob, place filled cookware on the grate.
Do not operate a burner using empty cookware or while the grate
is unoccupied.
To Set:
1. Push in and turn knob counterclockwise to LIGHT.
All four surface burners will click. Only the burner with the
contrel knob turned to LIGHT will produce a flame.
2. Turn knob anywhere between HIGH and LOW. Use the
following chart as a guide when setting heat levels.
SE]-rlNG RECOMMENDED USE
LIGHT • Light the burner.
HIGH • Start food cooking.
• Bring liquid to a boil.
BETWEEN • Hold a rapid boil.
HIGH and LOW
• Quickly brown or sear food.
• Fry or saute foods.
• Cook soups, sauces and gravies.
• Stew or steam foods.
LOW
• Keep food warm.
• Melt chocolate or butter.
• Simmer.
Power failure
In case of prolonged power failure, the surface burners can be lit
manually. Hold a lit match near a burner and turn knob
counterclockwise to LIGHT. After burner lights, turn knob to
setting.
REMEMBER: When range is in use or (on some
models) during the Self-Cleaning cycle, the entire
cooktop area may become hot.
L
Sealed Surface Burners
2
4
5
3
I. Bumer cap
2. Burner base
3, Alignment pins
4. Ignitor
5. Gas tube opening
IMPORTANT: Do not obstruct the flow of combustion and
ventilation air around the burner grate edges.
Burner cap: Always keep the burner cap in place when using a
surface burner. A clean burner cap will help prevent poor ignition
and uneven flames. Always clean the burner cap after a spillover
and routinely remove and clean the caps according to the
"General Cleaning" section.
Gas tube opening: Gas must flow freely throughout the gas tube
opening for the burner to light properly. Keep this area free of
soil and do not allow spills, food, cleaning agents or any
other material to enter the gas tube opening. Protect it from
spillovers by always using a burner cap.
2
1. 1-11_" (25-38 ram)
2. Burner ports
Burner ports: Check burner flames occasionally for proper size
and shape as shown above. A good flame is blue in color, not
yellow. Keep this area free of soil and do not allow spills, food,
cleaning agents or any other material to enter the burner ports.
