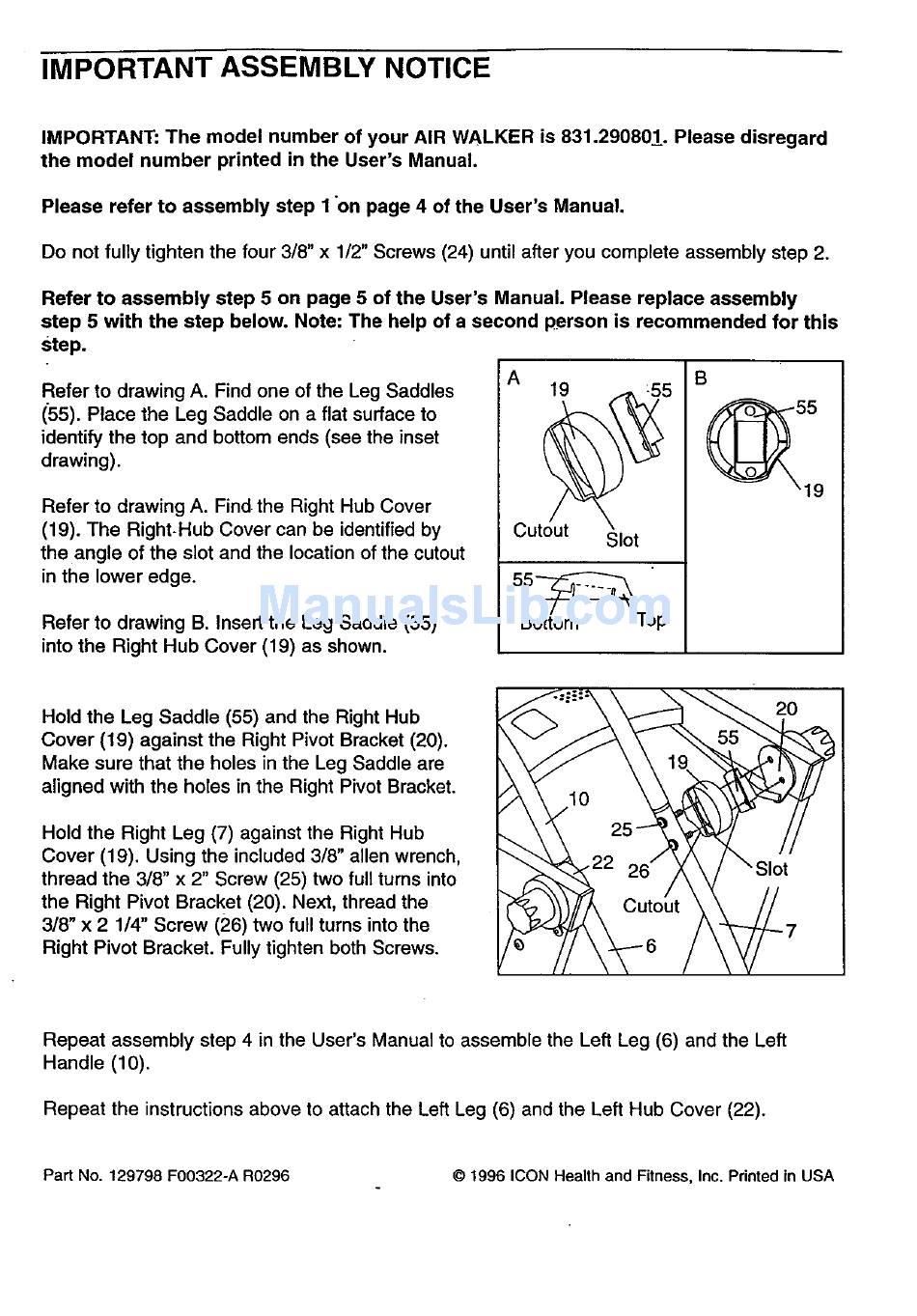

IMPORTANT ASSEMBLY NOTICE
IMPORTANT: The model number of your AIR WALKER is 831.290801. Please disregard
the model number printed in the User's Manual.
Please refer to assembly step 1 "on page 4 of the User's Manual.
Do not fully tighten the four 3/8" x 1/2" Screws (24) until after you complete assembly step 2.
Refer to assembly step 5 on page 5 of the User's Manual. Please replace assembly
step 5 with the step below. Note: The help of a second person is recommended for this
Step.
Refer to drawing A. Find one of the Leg Saddles
(55). Place the Leg Saddle on a flat surface to
identify the top and bottom ends (see the inset
drawing).
Refer to drawing A. Find the Right Hub Cover
(19). The Right-Hub Cover can be identified by
the angle of the slot and the location of the cutout
in the lower edge.
Refer to drawing B. Insert the Leg Saddle (55)
into the Right Hub Cover (19) as shown.
A
Cut_o t
/
Bottom \Top
B
C<,o
Hold the Leg Saddle (55) and the Right Hub
Cover (19) against the Right Pivot Bracket (20).
Make sure that the holes in the Leg Saddle are
aligned with the holes in the Right Pivot Bracket.
Hold the Right Leg (7) against the Right Hub
Cover (19). Using the included 3/8" allen wrench,
thread the 3/8" x 2" Screw (25) two full turns into
the Right Pivot Bracket (20). Next, thread the
3/8" x 2 1/4" Screw (26) two full turns into the
Right Pivot Bracket. Fully tighten both Screws.
20
Repeat assembly step 4 in the User's Manual to assemble the Left Leg (6) and the Left
Handle (10).
Repeat the instructions above to attach the Left Leg (6) and the Left Hub Cover (22).
Part No. 129798 F00322-A R0296 © 1996 ICON Health and Fitness, Inc. Printed in USA
