Connecting Your TV

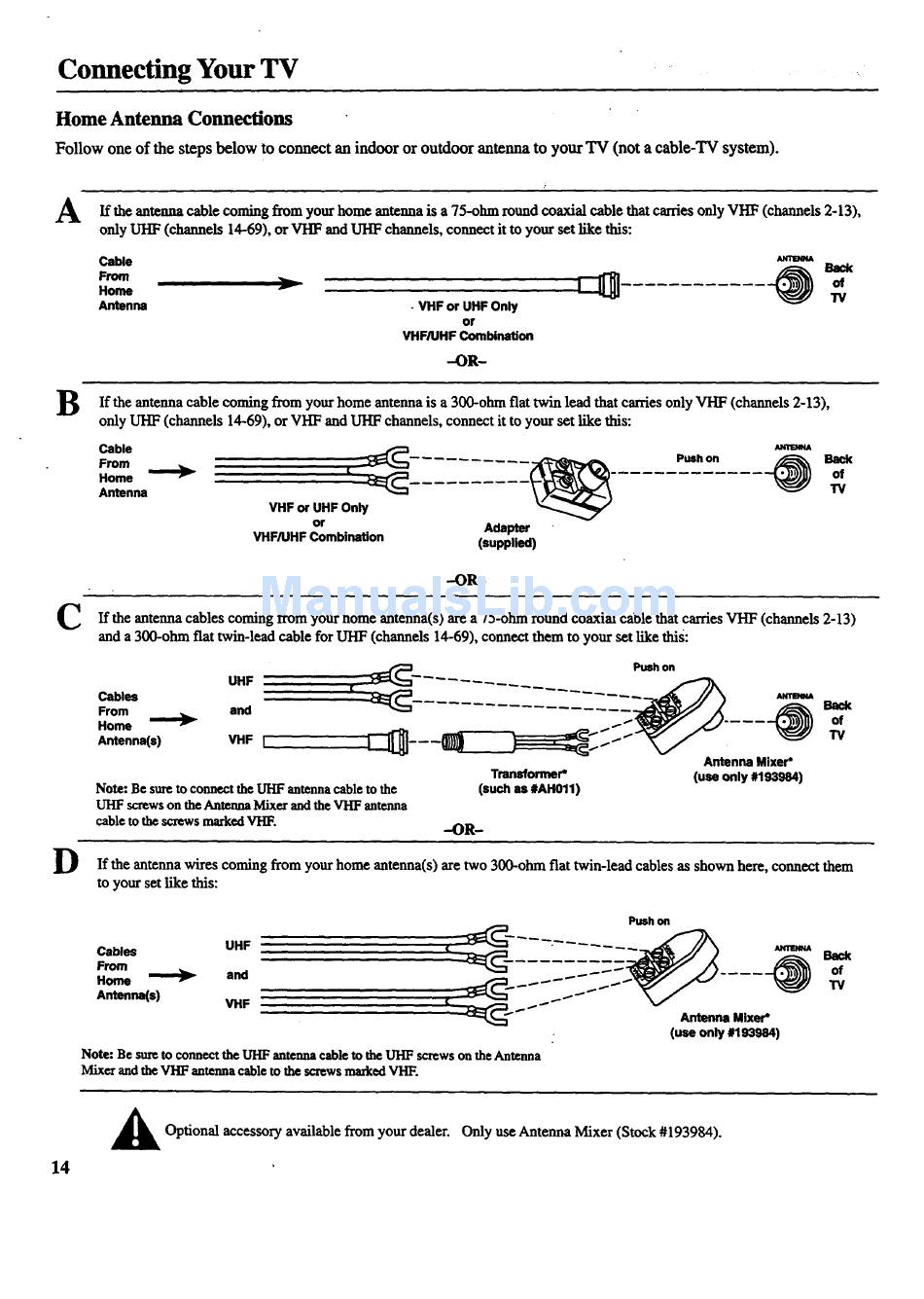

Home Antenna Connections
Follow one of the steps below to connect an indoor or outdoor antenna to your TV (not a cable-TV system).
A
If the antenna cable coming from your home antenna is a 75-ohm round coaxial cable that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
Cable _rve_
Home _ I TV
Antenna • VHF or UHF Only
or
VHF/UHF Combination
-OR-
B If the antenna cable from home is 300-ohm flat twin lead that carries VHF
coming your
antenna
a only
(channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
From Push on Back
Home _ of
Antenna "IV
VHF or UHF Only
or Adapter
VIIF/UHF Combination (supplied)
C
D
-OR-
If the antenna cables coming from your home antenna(s) are a 75-ohm round coaxial cable that carries VHF (channels 2-13)
and a 300-ohm flat twin-lead cable for UHF (channels 14-69), connect them to your set like this:
UHF
Cables
From and
Home
Antenna(s) VHF I
Note: Be sumto connectthe UHF antennacableto the
UHF screwson the AntennaMixer andthe VHF antenna
cableto the screwsmarked VHF.
Push
Oh
Antenna Mixer*
Transformer* (use only #193984)
(such as #AH011)
-OR-
If the antenna wires coming from your home antenna(s) are two 300-ohm fiat twin-lead cables as shown here, connect them
to your set like this:
Push on
Cables UHF , _ _ .... •....... _na_A
Home and ......
Antenna(s) VHF " '
Antenna Mixer*
(useonly #193984)
Note: Be sumto connectthe UHF antennacable to the UHF screws on theAntenna
Mixer
andthe
VHF
antenna cable to the screwsmarkedVHF.
Back
of
TV
14
Optional accessory available from your dealer. Only use Antenna Mixer (Stock #193984).
