Extron electronics STP24LC-2 Specifications

STP24LC Series
Low Capacitance Serial Control/Digital Audio Cable
CoMMon FeatuRes
One or two 24 AWG low capacitance shielded twisted pairs with a drain wire
•
High performance cable for distribution of AES/EBU digital audio or serial control
•
Plenum & Non-Plenum rated versions available
•
Spool of 1,000 feet (300 m) in self dispensing box
•
DesCRiPtion
The Extron STP24LC Cable is ideal for serial control and AES/EBU commercial digital
applications. This shielded twisted pair cable provides controlled impedances that exceed
AES/EBU standards maintaining the integrity of the signal over long distances. This cable
offers twice the performance of the Extron STP Series Serial Control/Audio cable, and is a high
performance solution for transmission and distribution of serial digital audio and serial control
signals, such as RS-232, in a variety of A/V applications.
The STP24LC features two color-coded or one twisted pair, 24 AWG tinned copper conductors,
and a tinned copper drain wire on the inside of the foil shield that is bonded to the jacket for
ease of stripping when used with automatic stripping equipment. The cable is available in
1,000' lengths.
The STP24LC-2 features four color-coded or two twisted pair, 24 AWG tinned copper
conductors, and a tinned copper drain wire on the inside of the foil shield of each twisted pair
wrapped in a single jacket. The cable is available in 1,000' lengths.
Low Capacitance Digital Audio Cable
Extron Model
STP24LC
STP24LC-2
Low Capacitance Serial Control Cable
Extron Model
STP24LC
STP24LC-2
* The cross-reference cable models are similar to the Extron Models but are not guaranteed to
be exactly identical. Belden and West Penn are divisions of Belden/CDT. Belden is a registered
trademark of Belden/CDT.

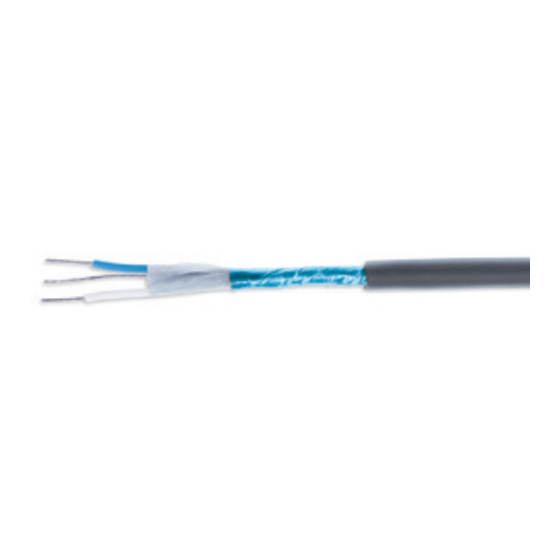

STP24LC
Low Capacitance Serial Control/Digital Audio Cable
unique FeatuRes
One 24 AWG low capacitance shielded twisted pair with a drain wire
•
NEC CM rated, non-plenum cable
•
STP24LC-2
Low Capacitance Serial Control/Digital Audio Cable
unique FeatuRes
Two 24 AWG low capacitance shielded twisted pairs with a drain wire
•
NEC CM rated, non-plenum cable
•
MoDel
STP24LC - Single Non-Plenum
STP24LC/1000
STP24LC - Dual Non-Plenum
STP24LC-2/1000
Europe Europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
Belden * West Penn*
®
1800B DA2401
1802B DA2402
Belden * West Penn*
®
— D4851
1419A, 8162 D4852
VeRsion DesCRiPtion
Non-Plenum 1000' (300 m) spool
Non-Plenum 1000' (300 m) spool
Asia Asia
+65.6383.4400 / +800.7339.8766 +65.6383.4400 / +800.7339.8766
+65.6383.4664 FAX +65.6383.4664 FAX

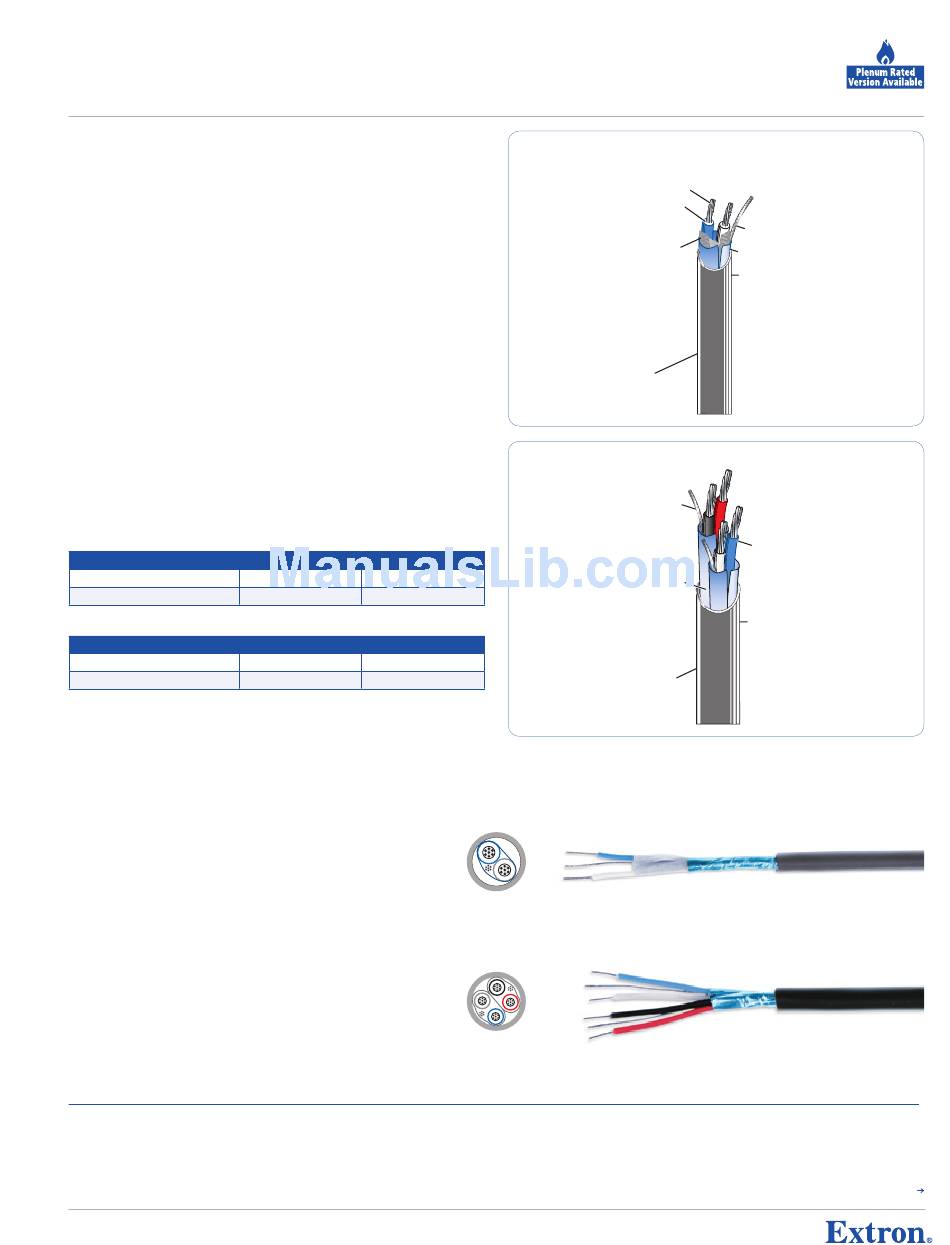

Two 24 AWG
(Blue & White)
Polyethylene
Foam
Fiber Wrap
STP24LC
Low Capacitance
Serial Control/Digital
Audio Cable
Drain Wire
Foil Shield
STP24LC-2
Low Capacitance
Serial Control/Digital
Audio
Dual Cable
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
China China
+86.21.3760.1568 / +400.883.1568 +86.21.3760.1568 / +400.883.1568
+86.21.3760.1566 FAX +86.21.3760.1566 FAX
a u d I o , C o n t r o l , & s p e a k e r C a B l e s
Drain Wire
Foil Shield
PVC Jacket
2 Stranded Twisted
Pair Sets
Four 24 AWG conductor
(Red/Black, Blue/White)
PVC Jacket
PaRt #
22-173-03
22-174-03
Japan Japan
+81.3.3511.7655 +81.3.3511.7655
+81.3.3511.7656 FAX +81.3.3511.7656 FAX
Continued
