Specifications; Video Output - Extron electronics Network Device PIP 444 Specification Sheet

PIP 444

sPeciFications

video
Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Unity
Differential phase error . . . . . . . . 1.5º at 3.58 MHz and 4.43 MHz
Differential gain error . . . . . . . . . . 1.5% at 3.58 MHz and 4.43 MHz
video inPUt and looP-throUgh
Number / signal type . . . . . . . . . . . 4 component video, S-video, composite video inputs
4 identical, buffered loop-throughs
Connectors . . . . . . . . . . . . . . . . . . . . . . . 4 x 3 female BNC for inputs
4 x 3 female BNC for loop-throughs
Nominal level . . . . . . . . . . . . . . . . . . . . 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for R-Y and B-Y of component video
0.3 V p-p for C of S-video
Minimum / maximum levels . . 0.3 V to 2.0 V p-p with no offset
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
Horizontal frequency. . . . . . . . . . . . NTSC 3.58, NTSC 4.43, PAL, SECAM
Vertical frequency . . . . . . . . . . . . . . . NTSC 3.58, NTSC 4.43, PAL, SECAM
Resolution range . . . . . . . . . . . . . . . . NTSC 3.58, NTSC 4.43, PAL, SECAM
Return loss . . . . . . . . . . . . . . . . . . . . . . . <-30 dB @ 5 MHz
DC offset (min./max.) . . . . . . . . . . . . -0.3 V to +1.3 V
External sync (genlock) . . . . . . . . . 0.3 V to 1.0 Vp-p
video Processing
Encoder . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 bit digital
Digital sampling . . . . . . . . . . . . . . . . . 24 bit, 8 bits per color; 80 MHz standard
Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.8 million
Anti-aliasing filtering . . . . . . . . . . . 5 levels: 0 (off), 1, 2, 3, auto (which uses 0-3)
Detail filtering . . . . . . . . . . . . . . . . . . . . 16 levels: 0-7, 8 (no filtering), 9-15

video oUtPUt

Number / signal type . . . . . . . . . . . 1 component video
1 S-video
1 composite video
Connectors . . . . . . . . . . . . . . . . . . . . . . . 3 female BNC for component video
2 female BNC for S-video
1 female BNC for composite video
Nominal level . . . . . . . . . . . . . . . . . . . . 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for R-Y and B-Y of component video
0.3 V p-p for C of S-video
Minimum / maximum levels . . 0.0 V to 1.0 Vp-p
Impedance . . . . . . . . . . . . . . . . . . . . . . . . 75 ohms
DC offset . . . . . . . . . . . . . . . . . . . . . . . . . . 350 ±25 mV (max.) with input at 0 offset
(for Y of component and S-video and for composite video)
650 ±25 mV (max.) with input at 0 offset
(for R-Y and B-Y of component video and for C of S-video)

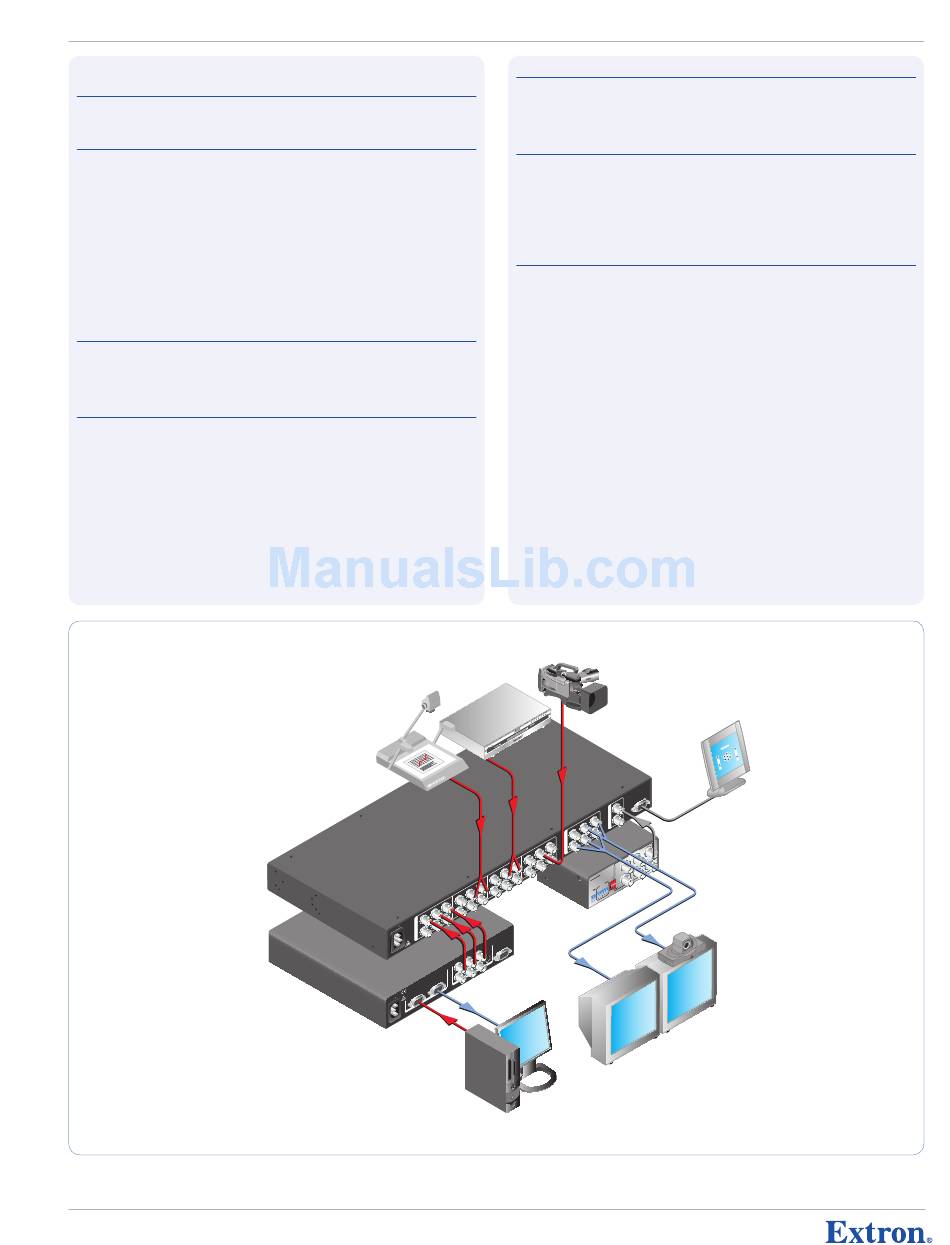

Extron
PIP 444
Picture-In-Picture
Processor
Extron
VSC 500
Scan Converter
Europe Europe Dubai Dubai
+31.33.453.4040 / +800.3987.6673 +31.33.453.4040 / +800.3987.6673 +971.4.2991800 +971.4.2991800
+31.33.453.4050 FAX +31.33.453.4050 FAX +971.4.2991880 FAX +971.4.2991880 FAX
sync
Genlock connectors . . . . . . . . . . . . . 1 BNC female for genlock input
Standards
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NTSC 3.58, NTSC 4.43, PAL, SECAM
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NTSC 3.58, PAL
control / reMote — Processor
Serial control port . . . . . . . . . . . . . . . RS-232 or RS-422, 9-pin female D connector
Baud rate and protocol . . . . . . . . . 115200, 38400, 19200, or 9600 (default) baud (configurable);
Serial control pin
configurations . . . . . . . . . . . . . . . . . . . RS-232: 2 = TX, 3 = RX, 5 = GND
Program control . . . . . . . . . . . . . . . . . Extron's control/configuration program for Windows
general
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, 10 watts, internal, universal
Temperature / humidity . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Rack mount . . . . . . . . . . . . . . . . . . . . . . Yes, with included brackets
Enclosure type . . . . . . . . . . . . . . . . . . . Metal
Enclosure dimensions . . . . . . . . . . 1.75" H x 17.5" W x 8.5" D (1U high, full rack wide)
Product weight . . . . . . . . . . . . . . . . . . 7.0 lbs (3.2 kg)
Shipping weight . . . . . . . . . . . . . . . . . 10 lbs (5 kg)
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Listings . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, CUL
Compliances . . . . . . . . . . . . . . . . . . . . . CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
