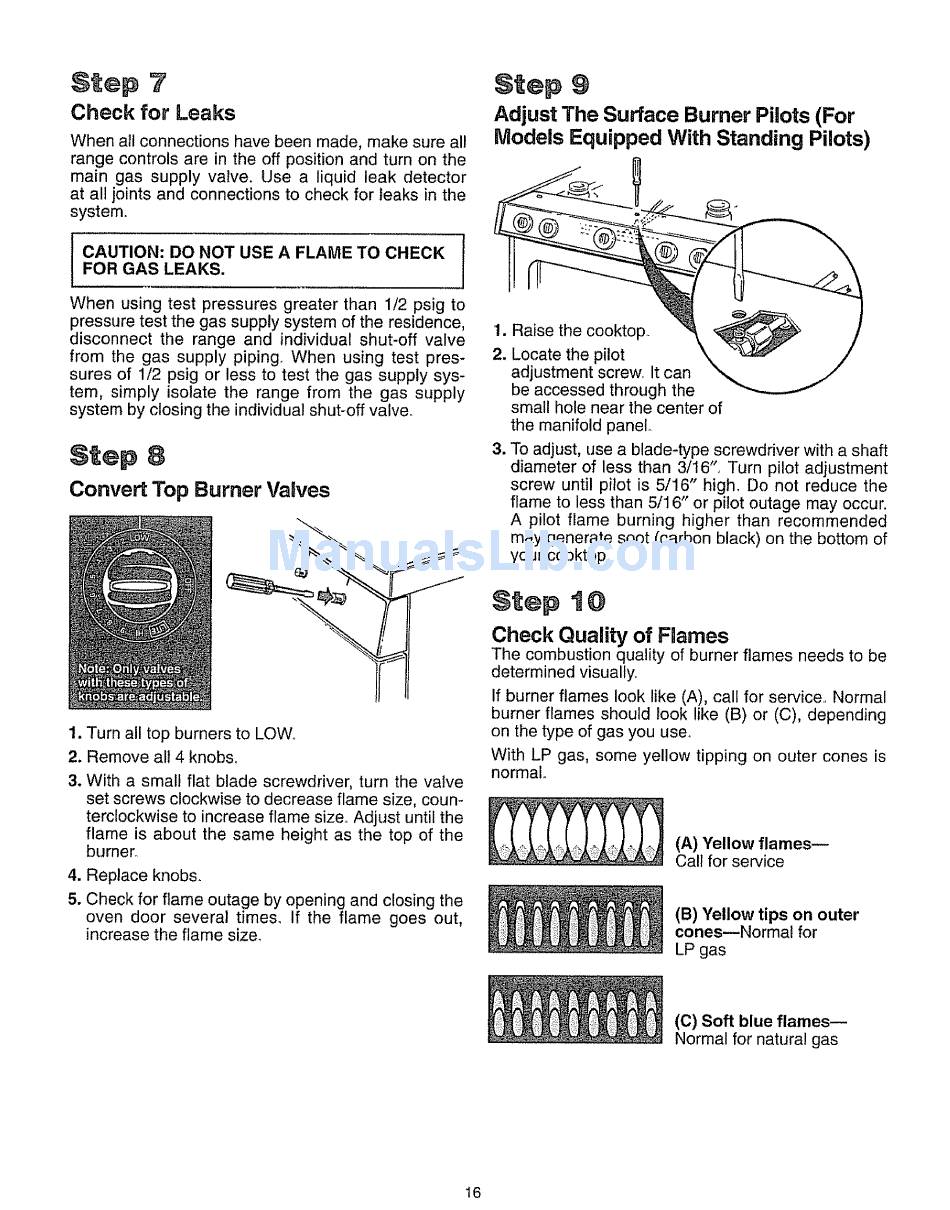

Kenmore 61011 Use, Care, Safety Manual page 16

Step 7
Check for Leaks
When all connections have been made, make sure all
range controls are in the off position and turn on the
main gas supply valve. Use a liquid leak detector
at all joints and connections to check for leaks in the
system
I CAUTION: DO NOT USE A FLAME TO CHECK |
!
FOR GAS LEAKS.
l
When using test pressures greater than 1/2 psig to
pressure test the gas supply system of the residence,
disconnect the range and individual shut-off valve
from the gas supply piping. When using test pres-
sures of 1/2 psig or less to test the gas supply sys-
tem, simply isolate the range from the gas supply
system by closing the individual shut-off valve.
Step 8
Convert Top Burner Valves
1. Turn all top burners to LOW,,
2. Remove all 4 knobs.
3. With a small flat blade screwdriver, turn the valve
set screws clockwise to decrease flame size, coun-
terclockwise to increase flame size° Adjust until the
flame is about the same height as the top of the
burner.
4. Replace knobs.
5. Check for flame outage by opening and closing the
oven door several times, If the flame goes out,
increase the flame size,
$tep 9
Adjust The Surface Burner Pilots (For
Models Equipped With Standing Pilots)
1. Raise the cooktop.
2. Locate the pilot
adjustment screw.. It can
be accessed through the
small hole near the center of
the manifold panel°
3. To adjust, use a blade-type screwdriver with a shaft
diameter of less than 3/16"_ Turn pilot adjustment
screw until pilot is 5/16" high, Do not reduce the
flame to less than 5/16" or pilot outage may occur.
A pilot flame burning higher than recommended
may generate soot (carbon black) on the bottom of
your cooktop.
Step t @
Check Quality of Flames
The combustion quality of burner flames needs to be
determined visually,.
If burner flames look like (A), call for service., Normal
burner flames should look like (B) or (C), depending
on the type of gas you use.
With LP gas, some yellow tipping on outer cones is
normal.
(A) "fellow flames--
Call for service
(B) Yellow tips on outer
conesmNormal for
LP gas
(C) Soft blue flames--
Normal for natural gas
16
