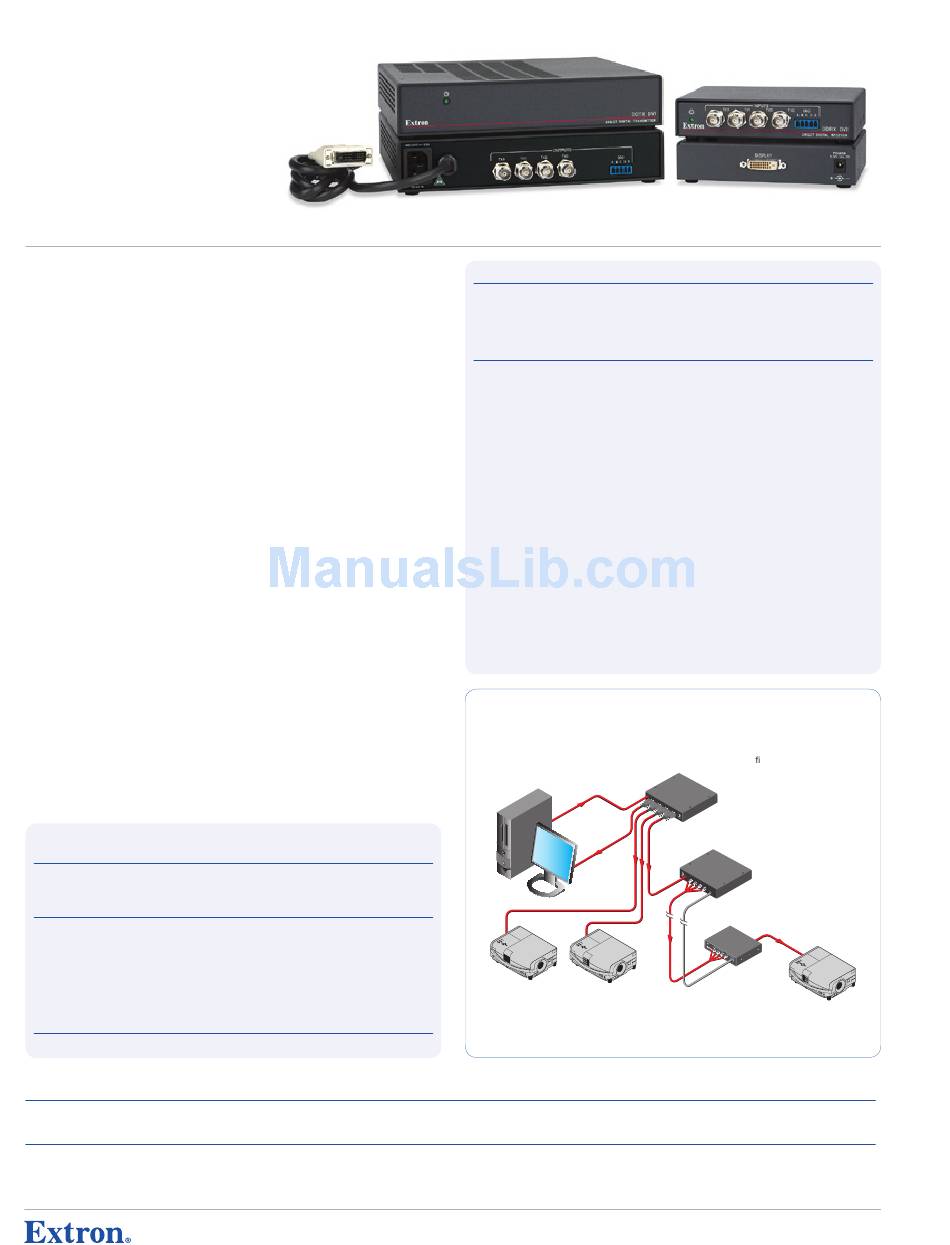

Extron electronics DDRX DVI Specification Sheet

DDTX DVI & DDRX DVI
DVI Long Distance Extender

fEAturEs

• Extends single link DVI signals up to 330 feet (100 m) using four Extron RG6/SHR
cables and one communication cable
• Input: DVI-D male connector on attached input cable
• Output: DVI-D female connector
• DDC input and output: Captive screw terminal
• Capable of handling computer resolutions up 1600x1200 and HDTV resolutions
up to 1080p/60
• Maintains bi-directional DDC communications between source and display
• Rack or under-desk mountable metal enclosure - DDTX DVI
• Through-desk and under-desk mountable - DDRX DVI
• Internal international power supply - DDTX DVI
• External international power supply - DDRX DVI

DEsCrIPtIon

The Extron DDTX DVI & DDRX DVI is a DVI Transmitter/Receiver pair of products for
long-distance transmission of single link DVI - Digital Visual Interface signals. DVI video
signals typically are limited to maximum transmission distances up to 15 feet (5 m). Using the
DDTX DVI and DDRX DVI, DVI signals can be transmitted up to 330 feet (100 m) using Extron
RG6/SHR-4 coaxial cable or 150 feet (45 m) using Extron RG59/HR coaxial cable, while the
bi-directional DDC Display Data Channel can be carried over Extron CTL Series cable. The
DDTX DVI and DDRX DVI can also transmit HDMI - High Definition Multimedia Interface signals
with optional Extron HDMI-DVI adapters.
The DDTX DVI is housed in a 1U, half rack width metal enclosure. The DDRX DVI receiver is
housed in a compact enclosure that is small enough to be mounted near the display.

sPECIfICAtIons

VIDEo InPut
(DDTX)
Number and connectors . . . . . . . 1 attached cable with DVI male connector
Nominal differential level . . . . . . 1 Vp-p
Min. / Max. differential level . . 0.3 V to 1.2 Vp-p
VIDEo tHrouGHPut
(DDTX anD DDRX)
Connectors . . . . . . . . . . . . . . . . . . . . . . . 4 BNC female connectors
1 female 3.5 mm 5-pole captive screw connector (DDC channel)
Maximum bit rate . . . . . . . . . . . . . . . 5 Gbps total (1.6 Gbps per color)
Maximum cable drive length . . Mini HR cable: 150' (45.7 m)
RG59/HR cable: 300' (91.4 m)
RG6/SHR cable: 350' (106.7 m)
NOTE: Cable drive length was tested using a 1600x1200 signal at 60 Hz from an ATI DVI graphics card to a Philips
200P4VS/74 LCD display. Results may vary greatly with other sources and displays.
VIDEo sIGnAl CHArACtErIstICs
Rise / Fall time . . . . . . . . . . . . . . . . . . . 220 ps nominal, maximum 350 ps

MoDEl

DDTX/DDRX DVI

oPtIonAl ACCEssorIEs

RSU 129
MBU 125
MBD 129
554
(DDTX anD DDRX)
VErsIon DEsCrIPtIon
Long Distance DVI Transmitter & Receiver
MoDEl DEsCrIPtIon
1U 9.5" Deep Universal Rack Shelf Kit
1U, 1/2 & 1/4 Rack Width, Under-Desk Mount Kit for Two-Piece Enclosure
1U, 1/2 & 1/4 Rack Width Through-Desk Mount Kit for Two-Piece Enclosure
USa West USa West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX
DDTX DVI Transmitter
VIDEo outPut
(DDRX)
Number and connectors . . . . . . . 1 DVI female
Maximum output
cable length . . . . . . . . . . . . . . . . . . . . . . 16.4 feet (5 meters)
Nominal differential level . . . . . . 0.8 Vp-p
Min. / Max. differential level . . 0.6 V to 1.0 Vp-p

GEnErAl

Power (DDTX DVI) . . . . . . . . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, autoswitchable; 12 watts, internal
Power (DDRX DVI)
External power supply . . . . . . . . . 100 VAC to 240 VAC, 50/60 Hz, external, autoswitchable;
Power input requirements . . . . . 12 VDC, 0.5 A
Temperature / Humidity . . . . . . . . Storage: -40 to +158 °F (-40 to +70 °C) /10% to 90%, noncondensing
Rack mount
DDTX DVI . . . . . . . . . . . . . . . . . . . . . . . . . . Yes, with optional rack shelf, part #60-190-01 or #60-604-01
DDRX DVI . . . . . . . . . . . . . . . . . . . . . . . . . . No, but furniture mountable with optional kit
Enclosure type . . . . . . . . . . . . . . . . . . . Two metal enclosures
Enclosure dimensions (each)
DDTX DVI . . . . . . . . . . . . . . . . . . . . . . . . . . 1.7" H x 8.7" W x 9.4" D (1U high, half rack wide)
DDRX DVI . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3" H x 5.7" W x 4.5" D
Product weight
DDTX/DDRX DVI (pair) . . . . . . . . . . . . 3.6 lbs (1.6 kg)
Shipping weight
DDTX/DDRX DVI (pair) . . . . . . . . . . . . 7 lbs (4 kg)
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . ISTA 1A in carton (International Safe Transit Association)
Listings . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL, CUL
Compliances . . . . . . . . . . . . . . . . . . . . . CE, FCC Class A
MTBF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 hours
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 3 years parts and labor
NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.
PC
Projector Projector
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USa East USa East
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
D V I & H D M I E x t E n D E r s
DDRX DVI Receiver
to 12 VDC, 1 A, regulated
Operating: +32 to +122 °F (0 to +50 °C) /10% to 90%, noncondensing
4.3 cm H x 22.1 cm W x 23.9 cm D
3.3 cm H x 14.5 cm W x 11.4 cm D
Extron
D/2 DA4 DVI
Distribution Ampli er
(Optional)
DVI Output
Extron
DDTX DVI
DVI Cables
DVI Transmitter
Extron
DDRX DVI
DVI Receiver
RX0
RX1
RX2 INP
UTS
RX3
DDC
DD
DIRE RX
CT DIGI DV
TAL REC I
EIVE R
Extron
Extron
Cable
RG6-4 BNC
Super High Resolution Cable
up to 330' / 100 m
PArt #
60-316-02
PAGE PArt #
page 819 60-190-01
page 815 70-077-01
. . . . .
page 817 70-077-02
. . .
