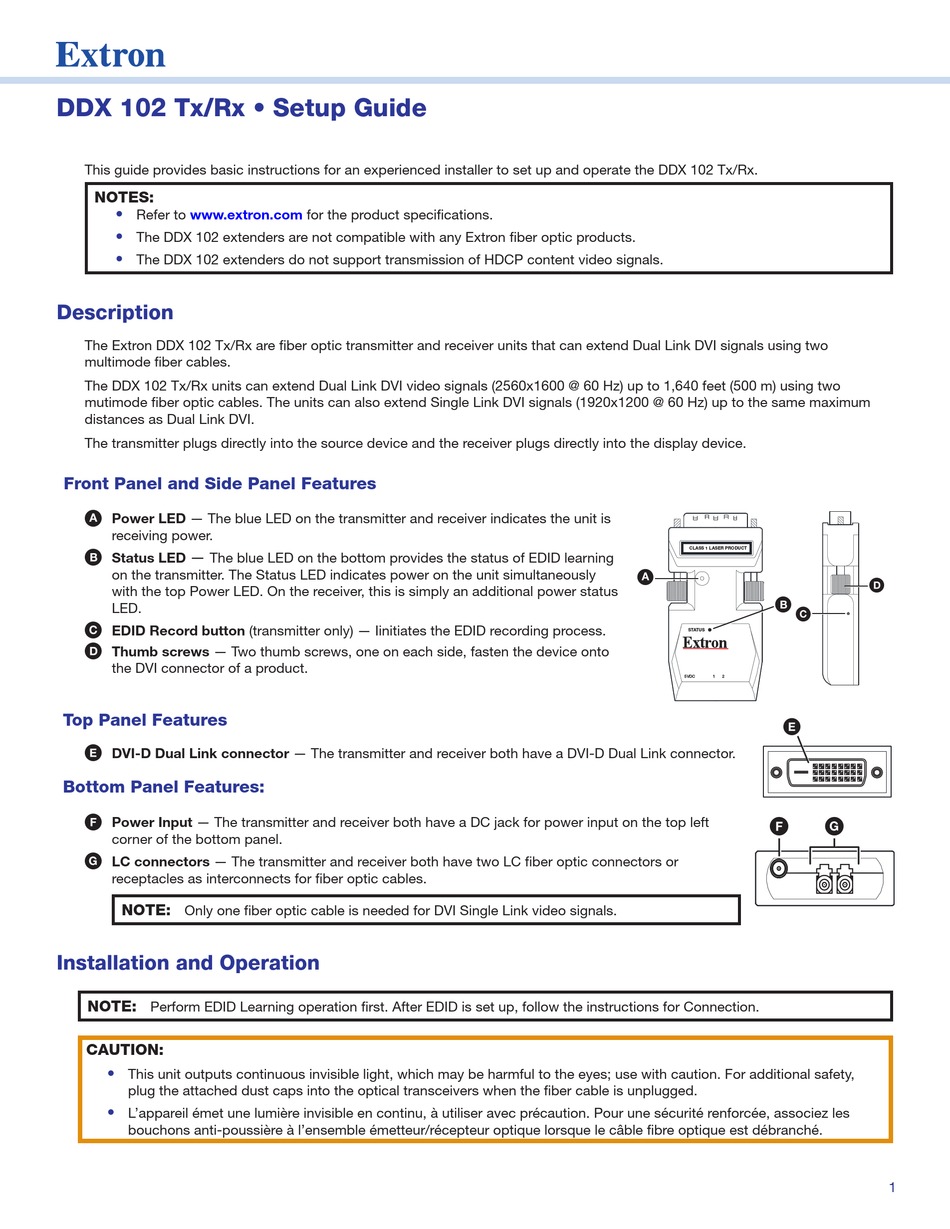

DDX 102 Tx/Rx • Setup Guide
This guide provides basic instructions for an experienced installer to set up and operate the DDX 102 Tx/Rx.
NOTES:
•
Refer to www.extron.com
•
The DDX 102 extenders are not compatible with any Extron fiber optic products.
•
The DDX 102 extenders do not support transmission of HDCP content video signals.

Description

The Extron DDX 102 Tx/Rx are fiber optic transmitter and receiver units that can extend Dual Link DVI signals using two
multimode fiber cables.
The DDX 102 Tx/Rx units can extend Dual Link DVI video signals (2560x1600 @ 60 Hz) up to 1,640 feet (500 m) using two
mutimode fiber optic cables. The units can also extend Single Link DVI signals (1920x1200 @ 60 Hz) up to the same maximum
distances as Dual Link DVI.
The transmitter plugs directly into the source device and the receiver plugs directly into the display device.

Front Panel and Side Panel Features

A Power LED — The blue LED on the transmitter and receiver indicates the unit is
receiving power.
—
B Status LED The blue LED on the bottom provides the status of EDID learning
on the transmitter. The Status LED indicates power on the unit simultaneously
with the top Power LED. On the receiver, this is simply an additional power status
LED.
C EDID Record button (transmitter only) — Iinitiates the EDID recording process.
D
Thumb screws — Two thumb screws, one on each side, fasten the device onto
the DVI connector of a product.

Top Panel Features

E
DVI-D Dual Link connector — The transmitter and receiver both have a DVI-D Dual Link connector.

Bottom Panel Features:

F
Power Input — The transmitter and receiver both have a DC jack for power input on the top left
corner of the bottom panel.
G LC connectors — The transmitter and receiver both have two LC fiber optic connectors or
receptacles as interconnects for fiber optic cables.
NOTE:
Only one fiber optic cable is needed for DVI Single Link video signals.

Installation and Operation

NOTE:
Perform EDID Learning operation first. After EDID is set up, follow the instructions for Connection.
CAUTION:
•
This unit outputs continuous invisible light, which may be harmful to the eyes; use with caution. For additional safety,
plug the attached dust caps into the optical transceivers when the fiber cable is unplugged.
•
L'appareil émet une lumière invisible en continu, à utiliser avec précaution. Pour une sécurité renforcée, associez les
bouchons anti-poussière à l'ensemble émetteur/récepteur optique lorsque le câble fibre optique est débranché.
for the product specifications.
CLASS 1 LASER PRODUCT
A A A
B B B
C C C
STATUS
5VDC 1 2
E E E
F F F
D D D
G G G
1
