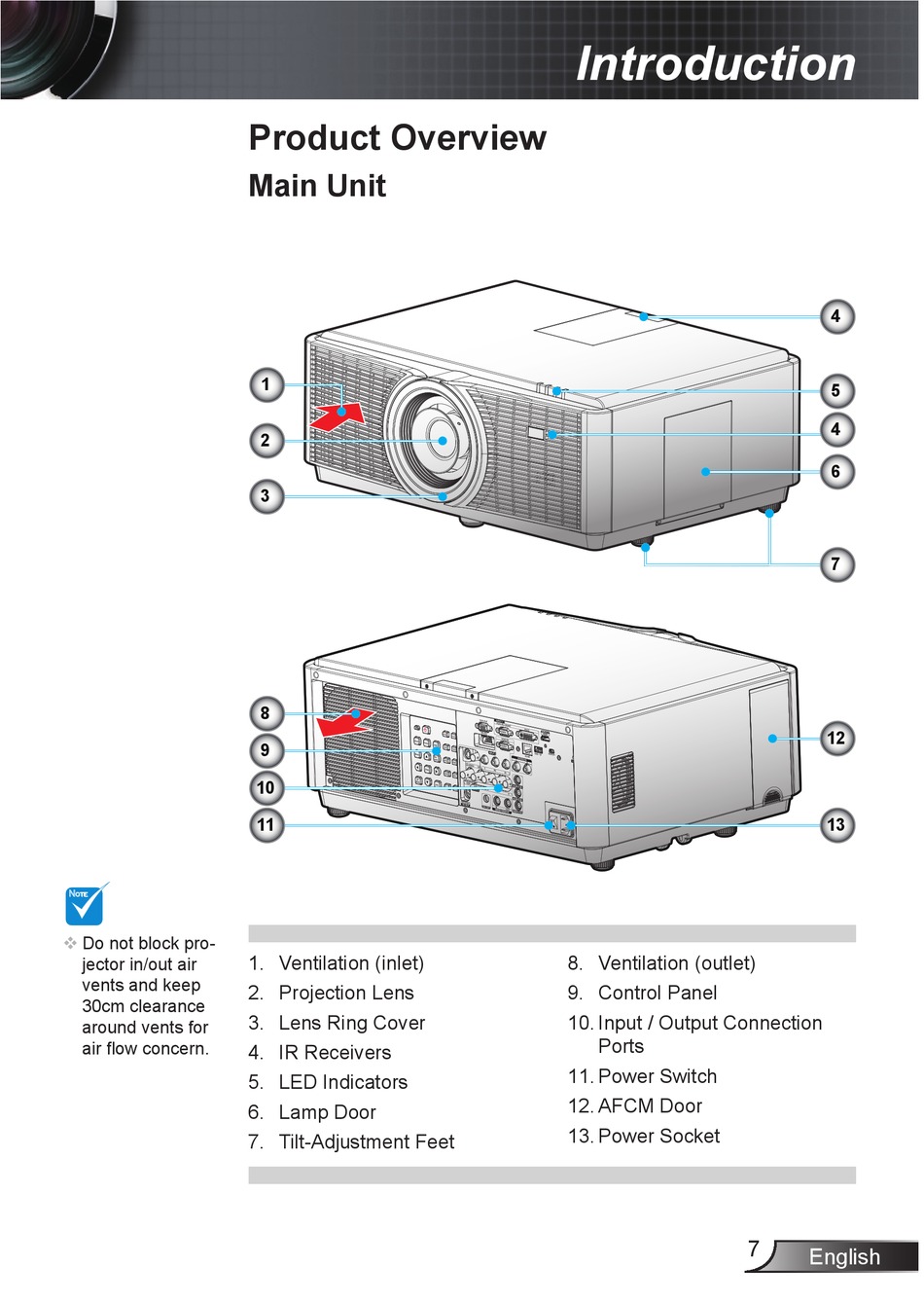

Product Overview

Main Unit

1
2
3
8
9
10
11
. Ventilation (inlet)
2. Projection Lens
3. Lens Ring Cover
4. IR Receivers
5. LED Indicators
6. Lamp Door
7. Tilt-Adjustment Feet
Introduction
8. Ventilation (outlet)
9. Control Panel
0. Input / Output Connection
Ports
. Power Switch
2. AFCM Door
3. Power Socket
4
5
4
6
7
12
13
7
