Installation; Connecting The Projector; Install The Projector Lens - Optoma Projector with lens cover User Manual

N
OTE
Before installing

or replacing the
lens, switch off
the power of the
projector.
Avoid using the

remote control or
projector keypad
button to adjust
the lens shift or
zoom/focus while
the lens attach-
ment process is
carried out.

Connecting the Projector

Install the Projector Lens

Warning: Do not transport the projector with any lens installed.
1
3
5

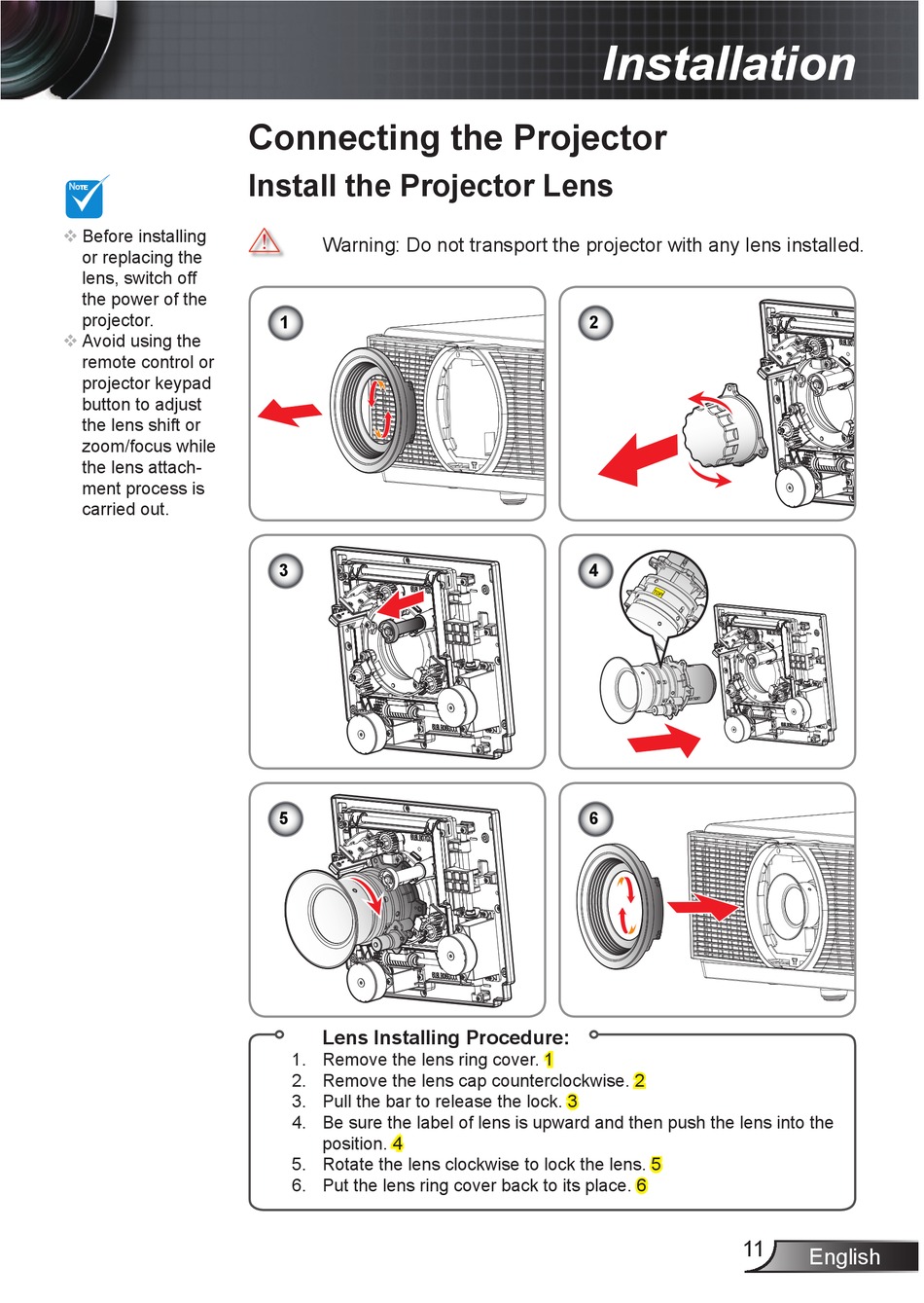

Lens Installing Procedure:
. Remove the lens ring cover.
2. Remove the lens cap counterclockwise. 2
3. Pull the bar to release the lock. 3
4. Be sure the label of lens is upward and then push the lens into the
position. 4
5. Rotate the lens clockwise to lock the lens. 5
6. Put the lens ring cover back to its place. 6
