Owner'sManual
CONTINUOUS
PILOT
MODEL N O.
229.960330
229.960340
229.960360
229.960360
229.960370
229.960380
229.960390
ELECTRONIC
INTERMITTENT
IGNITION
MODEL NO.
220.960230
229.960240
229.960260
229.960260
229.960270
229.960280
229.960290
These instructions mustbe affixed
onor adjacent t o the boiler.
CAUTION
Readall instructions carefully
beforestartingtheinstallation.
Save this manual
for future reference.
®
Gas-Fired
Cast Iron
STEAM
BOILER
• Installation
• Operation
• RepairParts
WARNING:
Improper
installation, adjustment,
alteration,
service or
maintenance can cause injury or property damage. Refer to this manual.
For assistance
or additional
information consult a qualified
installer,
service agency or the gas supplier. Natural gas boilers are not to be
converted to Propane gas.
PRINTED
IN U.S.A.
FOAM e37-_00-02_02-6"7949

Advertisement

   Related Manuals for Kenmore 229.960330

   Summary of Contents for Kenmore 229.960330

  • Page 1

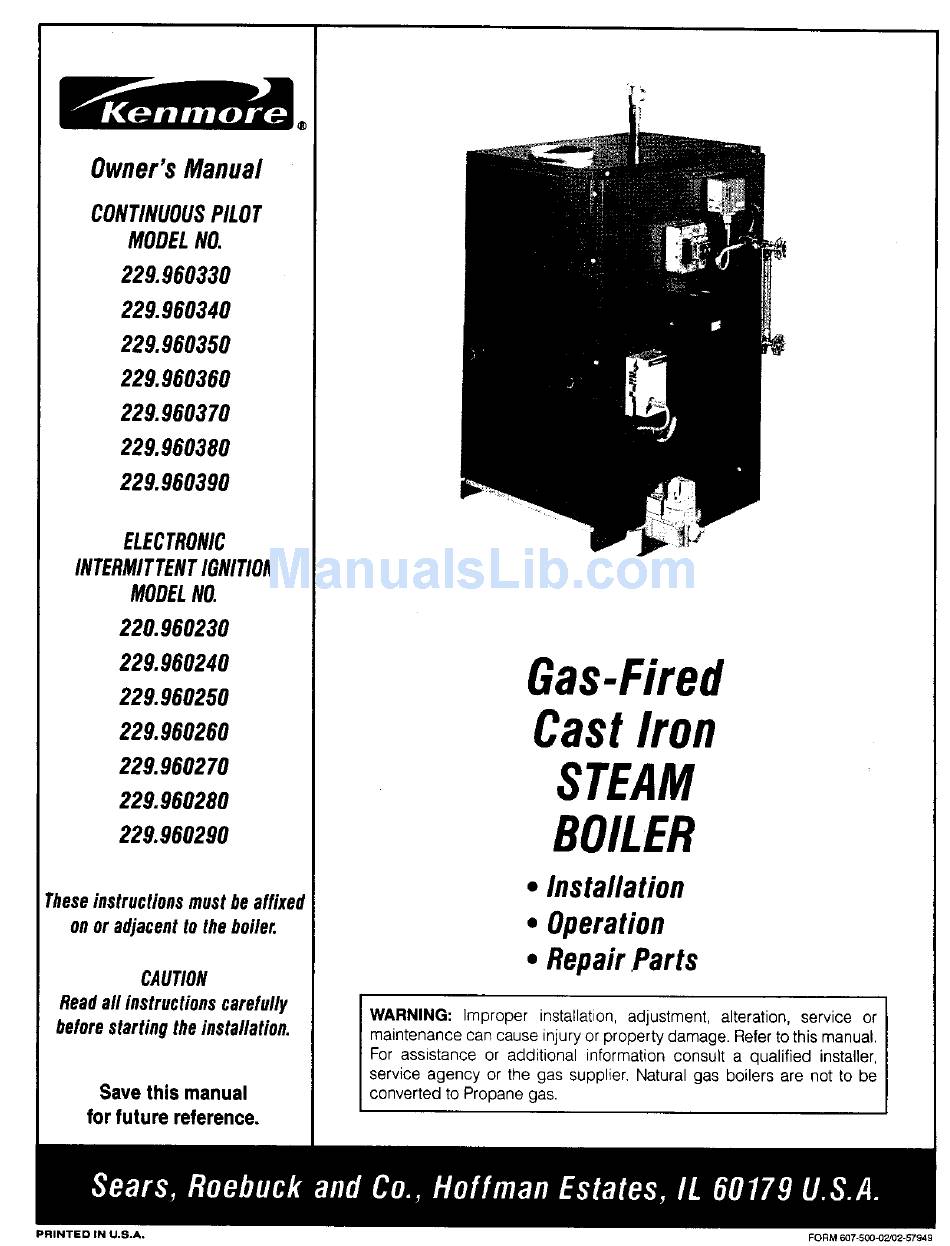

    ® Owner'sManual CONTINUOUS PILOT MODEL N O. 229.960330 229.960340 229.960360 229.960360 229.960370 229.960380 229.960390 ELECTRONIC INTERMITTENT IGNITION MODEL NO. 220.960230 229.960240 Gas-Fired 229.960260 Cast Iron 229.960260 229.960270 STEAM 229.960280 BOILER 229.960290 • Installation These instructions mustbe affixed • Operation onor adjacent t o the boiler. •...
