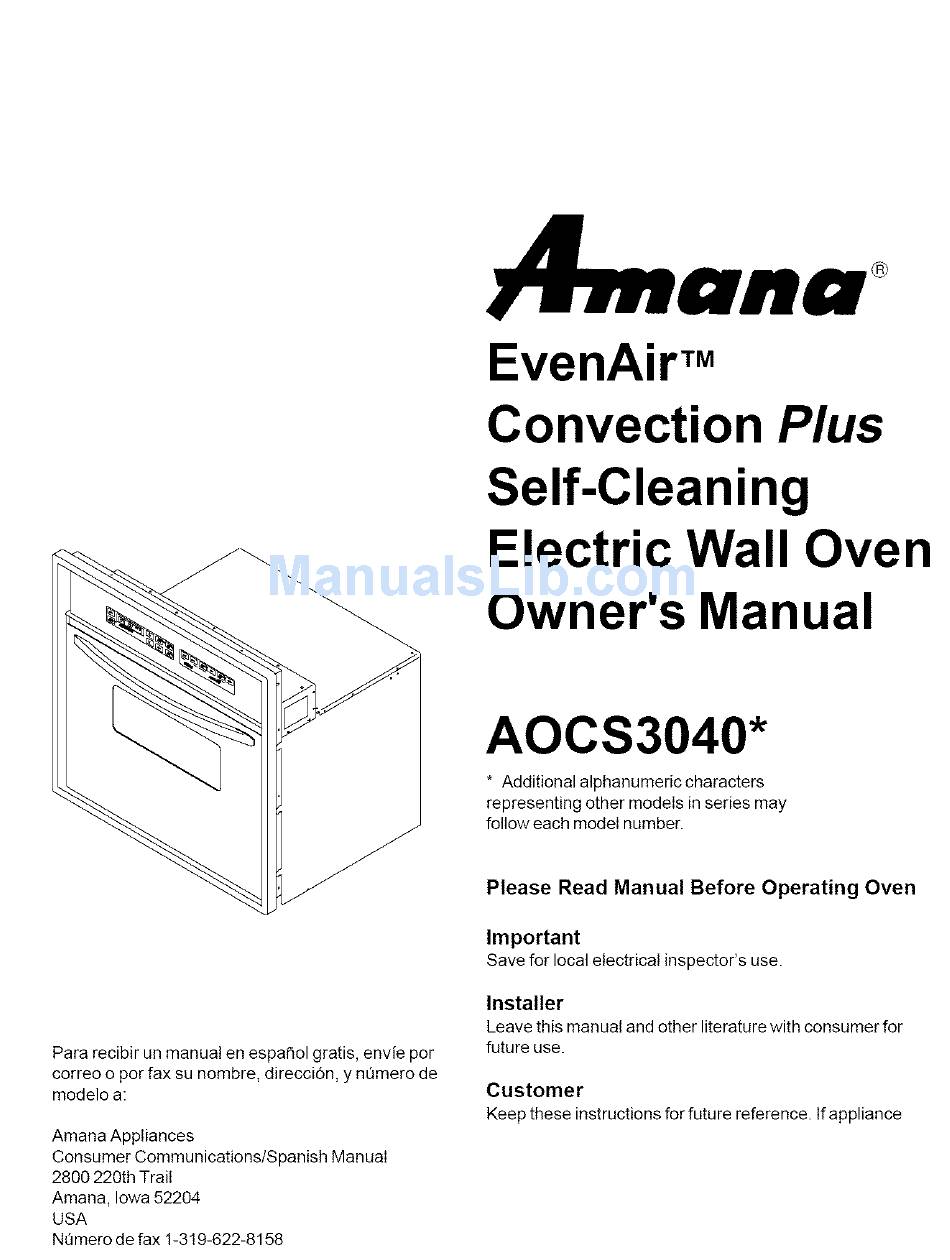

Convection plus self-cleaning electric wall oven

Advertisement

/4ynono
EvenAir TM
Convection Plus
Self-Cleaning
Electric Wall Oven
Owner's Manual
AOCS3040"
* Additional alphanumericcharacters
representing other models in series may
follow each model number.
Para recibir un manual en espafiol gratis, envie por
correo o pot fax su nombre, direcci6n, y nQmero de
modelo a:
Amana Appliances
Consumer Communications/Spanish
Manual
2800 220th Trail
Amana, Iowa 52204
USA
NQmero de fax 1-319-622-8158
Please Read Manual Before Operating
Oven
Important
Save for local electrical inspector's use.
Installer
Leave this manual and other literature with consumer for
future use.
Customer
Keep these instructions for futu re reference. If appliance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EvenAir AOCS3040WW and is the answer not in the manual?

Questions and answers

Summary of Contents for Amana EvenAir AOCS3040WW

  • Page 1 Para recibir un manual en espafiol gratis, envie por correo o pot fax su nombre, direcci6n, y nQmero de Customer modelo a: Keep these instructions for futu re reference. If appliance Amana Appliances Consumer Communications/Spanish Manual 2800 220th Trail Amana, Iowa 52204 NQmero de fax 1-319-622-8158...
  • Page 2: Table Of Contents

    Extended Service Plan Baking Guide ............Broiling Guide ............Amana offers long-term service protection for this new Poultry Roasting Guide ........... oven. Asure Extended Service Plan is specially Beef and Pork Roasting Guide ........ designed to supplement Amana's strong warranty.
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION Do Not Use Oven Cleaners--No commercial oven cleaner or oven liner protective coating of any kind WARNING should be used in or around any part of the liner. To avoid personal injury, do not sit, stand or lean on Clean Only Parts Listed in Manual.
  • Page 4: Installation

    Installation CAUTION To avo d property damage or persona njury, nformat on n these nsta at on spec f cat ons must be fo owed exact y. Packing Material Remove protective packing material from oven. Tape residue can be cleaned with a soft cloth and alcohol. Lean oven to each side and remove shipping base.
  • Page 5: Wall Oven Under Countertop

    Wall Oven Under Countertop Locate junction box in grey area. Use dimentions from single oven installation to install side-by-side installation. Side -by side installation requires a full 72" plywood divider between ovens. Note: If installing a cooktop over this wall oven, see "Cooktops above AOCS Wall Oven" section before cut!rig cabinet. _7/8"...
  • Page 6: Wall Oven In Cabinet

    Wall Oven in Cabinet Locate junction box in grey area. Use dimentions from single oven installation to install stacked installation. 271/4" 281/2 ', 23 V2' inches minimum 32" reconmlended hieght from floor to cutout bottom _t:ia" mininmm 24 inchesniininmm 141/2 "inches 3 inches mi:fimum V_allOven Installed I:1Cabnet...
  • Page 7: Cooktops Above Aocs Wall Oven

    Cooktops above AOCS Wall Oven CA___U_UTIO N To avoid property damage or personal injury, information in these installation specifications must be followed exactly. I For individual unit requirements and clearances refer to the installation instructions packaged with the wali oven and cooktop.
  • Page 8: Electrical Connection Requirements

    Electrical and Gas Supply Location with Oven has approximately 36 inches of flexible wire Gas Cooktop over Wall Oven conduit attached to rear. Approximately 6 inches of Locate gas supply so manual shutoff valve is accessible green ground wire and 3 insulated wires, black, red, after installation.
  • Page 9: Tilting Control Panel

    Tilting Place Oven in Wall Control Panel Control panel can be adjusted to tilt from 0° to 12 ° to This procedure should be performed by 2 people. make more visible. Seal Openings in walt behind the oven or on floor Loosen screws on top, and sides of control panel and under oven.
  • Page 10: Oven Features

    Oven Features Electronic Oven Control with Tilting Control Panel Oven Window with Oven Cavity Light Broil Element Six Oven Rack Positions " Rear Convection Rear Convection Element Element Located below oven floor) Standard Rack Spacesaver Rack Convection Roasting Rack 4> Broiler Pan and Grid Slo-Cook...
  • Page 11: Operation

    Operation Cooking Methods Introduction This Oven provides standard Baking and Broiling, and EvenAir Plus Convection Cooking. During EvenAir Plus Convection Cooking Baking and Broiling, the oven fan in the rear of the oven cavity circulates air while the oven cooks. The circulating air provides even browning and faster baking and broiling times. Bake Upper and lower elements operate during bake.
  • Page 12 ¢ONVEC;ION Oven Contlol Panel Controls clock, timer, and interior oven light. STOP TIME pad is used to program delayed bake and delayed clean features. COOK TIME pad is used to TIME/TEMP CONTROL program timed bake feature. Controls, Convection, Convection Bake, Convection Broil, SIo-Cook Hold, Defrost, and Dehydrate features.
  • Page 13 Display Someitemsindisplay canbeseenbutwillnotglow. Displays time-of-day, timer and timed or delayed settings. CLEAN OVEIIm _TOP ON TIMER Displays temperature and cooking method or function BOO00 for oven. BONV BROIL 0 0 0 0 ° DELAY TIMED BAKE ..DD CLEAN LOCKED [_N_ Display Glossary TIME AM, PM or HR TIME AM or PM flashes in display while time-of-day is entered.
  • Page 14: Oven Control

    Oven Signals Preheat signal After setting oven to bake and selecting a temperature, oven preheats. When oven reaches set temperature, 1-second signal sounds. Timer and When a timed cooking cycle is complete or time elapses on timer, three long signals End-of-Cycle signal sound and then one approximately every 6-8 seconds.
  • Page 15: Flashing Display

    Prepare to Bake Flashing Display When power is connected to oven, display flashes. Press OVEN CANCEL to clear display. CAUTION Setting Electronic Clock To reduce risk of food poisoning due to bacterial growth and production of toxins, never hold meat, milk, fish or When power is connected or restored, display flashes eggs for more than 2 hours before cooking.
  • Page 16 Oven includes a special convection roasting rack. This Bake Pan Placement rack should be placed on top of broiler pan and grid. It • Keep pans and baking sheets 2 inches from oven allows air to circulate around food and cook evenly. Use walls.
  • Page 17: Baking, Convection, Or Convection Baking

    Baking, Convection, Baking Delayed Baking, Convection, or Convection Open oven door to confirm nothing is stored in oven or Convection Baking cavity and set racks to proper height before baking. For Set oven to begin and end baking at later time. Oven delicate baking, preheat approximately 15-20 minutes control automatically calculates starting time.
  • Page 18: Prepare For Broiling

    2 hours before • Never leave oven unattended while broiling. Over- cooking. cooking may result in a fire. Facts and Hints to Remember • Amana's Slo-Cook feature simulates a traditional Broiling Tips crockery cooking by cooking food slowly at a low •...
  • Page 19: Dehydration

    Suggested Dish Arrangements Dehydration • Determine rack level by dish size and amount of food. Dehydration is an excellent way to preserve fresh foods. • Covered dishes retain moisture better than uncovered The best way to become familiar with dehydration is dishes.
  • Page 20: Prepare For Self-Clean And Delayed Self-Clean Cycle

    Prepare for Self-clean Delayed Self-clean Cycle Self-clean feature uses high oven temperature to clean Delayed Self-clean Cycle oven interior. Set oven to begin and end cleaning at later time using. Control calculates back from end time to WARNING determine starting time. Prepare oven for self-cleaning To avoid risk of personal injury, do not touch oven Press CLEAN pad.
  • Page 21: Cooking Guide

    Cooking Guide Baking Guide Follow these recommendations only as a guide for times and temperatures. Times, rack position, and temperatures may vary depending on conditions and food type. For best results, always check food at minimum time. Food Oven Temperature Cooking Time (°Fahrenheit) (Minutes)
  • Page 22: Poultry Roasting Guide

    Poultry Roasting Guide Follow these recommendations only as a guide for times and temperatures. Times, rack position, and temperatures may vary depending on conditions and food type. For best results, always check food at minimum time. Food Oven temperature Cooking time (°Fahrenheit) (Hours) Whole Chicken (4 Ibs to 5 Ibs)
  • Page 23: Convection Baking Guide

    Convection Baking Guide Follow these recommendations only as a guide for times and temperatures. Times, rack position, and temperatures may vary depending on conditions and food type. For best results, always check food at minimum time. Food Oven Temperature Cooking Time (°...
  • Page 24: Convection Poultry Roasting Guide

    Poultry Roasting Convection Guide Follow these recommendations only as a guide for times and temperatures. Times, rack position, and temperatures may vary depending on conditions and food type. For best results, always check food at minimum time. Food Oven temperature (°Fahrenheit) Cooking time (Hours) Whole chicken (4 Ibs to 5 Ibs)
  • Page 25: Sio-Cook Tm Recipes

    Recipes SIo-Cook Menu Dish Recipes Vegetables Beef Pot Roast With Cooking Time: 8 to 10 hours 3 Ibs. beef chuck roast Beef Stew 6 carrots Cooking Time: 8 to 10 hours 4 potatoes 2 Ibs. beef (cut into 1½" cubes) 3 medium onions 3 potatoes large 2 cans (6 oz.) V-8 juice...
  • Page 26 Baked Wild Rice Chicken and Dressing Cooking Time: 8 to 10 hours 1 cup long grain and wild rice, mixed Chicken 2-½ cups water 3 to 3-½ Ibs. Chicken 3 tablespoons butter satt ½ teaspoon salt pepper vegetable oil Put all ingredients in buttered 1-½ quart ovenproof dish. Stir.
  • Page 27 Braised Short Ribs Swedish Meat Balls Cooking Time: 7 to 9 hours Cooking Time: 3-1½to 4 hours 3 Ibs. beef short ribs 1 cup milk ½ cup flour 1½ cups bread crumbs 1 teaspoon salt 2 Ibs. lean ground beef ½...
  • Page 28: Care And Cleaning

    Care and Cleaning Removing Oven Door Replacing Oven Light CAUTION WARNING To avoid personal injury or property damage, handle To avoid risk of burns or electrical shock, disconnect oven door with care. electrical supply to oven before changing light bulb. •...
  • Page 29: Cleaning

    Cleaning Part Materials to Use General Directions Heating elements Do not clean. Any food on element will burn off. Broiler pan and grid Soap and a non- Drain fat, cool pan and grid slightly. (Do not let soiled pan and abrasive plastic grid stand in oven to cool.) Sprinkle with soap.
  • Page 30: Before Calling For Service

    Before Calling for Service Problem Check Oven light does not work. Check for loose bulb. Check for burned out bulb; replace with 40-watt appliance bulb. Oven does not heat. Check circuit breaker. Check control for proper setting. Oven door will not open. Wait for oven to cool.
  • Page 31: Warranty

    _' WALL OVEN WARRANTY FULL ONE YEAR WARRANTY FIRSTYEAR Amana Appliances will repair or replace, incIuding retated labor and travel, any part (f.o b. Amana, Iowa) which proves to be defective as to workmanship or materials. SECOND THROUGH FIFTH YEAR...
  • Page 32: Delayed Self-Clean Cycle

    Press A or V pad until desired stop time displays. Press COOK TIME pad. Press A or V pad until desired cooking time displays. To Cancel Remaining Cooking Time Press OVEN CANCEL pad. Part No. 36-32103601-0 (_: 2002 Amana Appliances Printed in US.A. 05/02 Amana, Iowa 52204...
