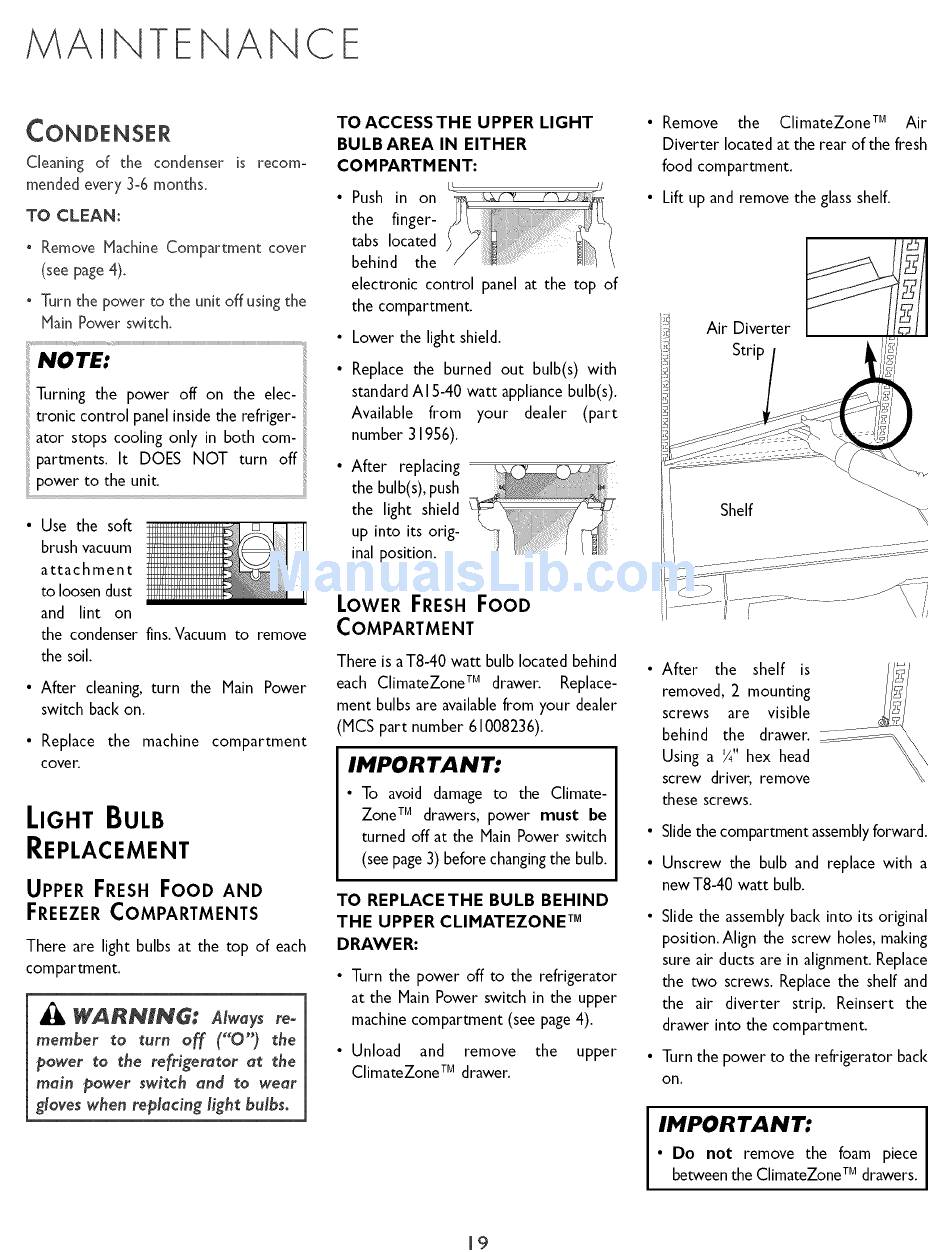

AJNTENANCE
CONDENSER
Cleaning of the condenser is recom-
mended
every 3-6 months_
TO CLEAN:
" Remove Machine Compartment cover
(see page4).
" Turn the power to the unit off using the
Main Power switch.
NOTE:
Turning the power off on the elec-
tronic control panel inside the refriger-
ator stops cooling only in both com-
partments. It DOES NOT turn off
power to the unit.
• Use the soft
brush vacuum
attachment
to loosendust
and lint on
the condenser fins.Vacuum to remove
the soil.
• After cleaning, turn the Main Power
switch back on.
• Replace the machine compartment
cover.
LIGHT BULB
REPLACEMENT
UPPER FRESH
FOOD
AND
FREEZER COMPARTMENTS
There are light bulbs at the top of each
compartment.
,_ WARNING: Aiweys re-
member to turn off ("O'} the
power to the refrigerator at the
main power switch and to wear
gloves when replacing light bulbso
TO ACCESS THE UPPER LIGHT
BULB AREA IN EITHER
COHPARTHENT:
• Push in on
the finger-
tabs located
behind the
electronic control panel at the top of
the compartment.
• Lower the light shield.
• Replace the burned out bulb(s) with
standard AI 5-40 watt appliance bulb(s).
Available from your dealer (part
number 31956).
• After replacing
the bulb(s),push
the light shield
up into its orig-
inal position.
LOWER FRESH FOOD
COMPARTMENT
There is aT8-40 watt bulb located behind
each ClimateZone
TM
drawer. Replace-
ment bulbs are availablefrom your dealer
(MCS part number 61008236).
IMPORTANT:
• To avoid damage to the Climate-
Zone
TM
drawers, power must be
turned off at the Main Power switch
(see page3) before changingthe bulb.
TO REPLACETHE BULB BEHIND
THE UPPER CLIHATEZONE
TM
DRAWER:
• Turn the power off to the refrigerator
at the Main Power switch in the upper
machine compartment (see page 4).
• Unload and remove the upper
ClimateZone
TM
drawer.
• Remove the ClimateZone
TM
Air
Diverter located at the rear of the fresh
food compartment.
• Lift up and remove the glass shelf.
I;' Air Diverter
Strip
Shelf
\
\I'
After the shelf is /f_i
removed, 2 mounting
screws are visible ,_/
behind the drawer.
Using a ¼" hex head
screw driver, remove
these screws.
• Slidethe compartment assembly forward.
• Unscrew the bulb and replace with a
new T8-40 watt bulb.
• Slide the assembly back into its original
position.Align the screw holes, malting
sure air ducts are in alignment. Replace
the two screws. Replace the shelf and
the air diverter strip. Reinsert the
drawer into the compartment.
• Turn the power to the refrigerator back
on.
IMPORTANT:
• Do not remove the foam piece
TM
between the ClimateZone drawers.
i9
