CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Model: JS48PPDUDB01
(Stainless Steel)
Part No. W10242818 Rev. A
11−08 Litho In U.S.A. (jdc)(bay)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JS48PPDUDB01 and is the answer not in the manual?

Questions and answers

Related Manuals for Jenn-Air JS48PPDUDB01

Summary of Contents for Jenn-Air JS48PPDUDB01

  • Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Model: JS48PPDUDB01 (Stainless Steel) Part No. W10242818 Rev. A 11−08 Litho In U.S.A. (jdc)(bay)

  • Page 2: Cabinet Parts

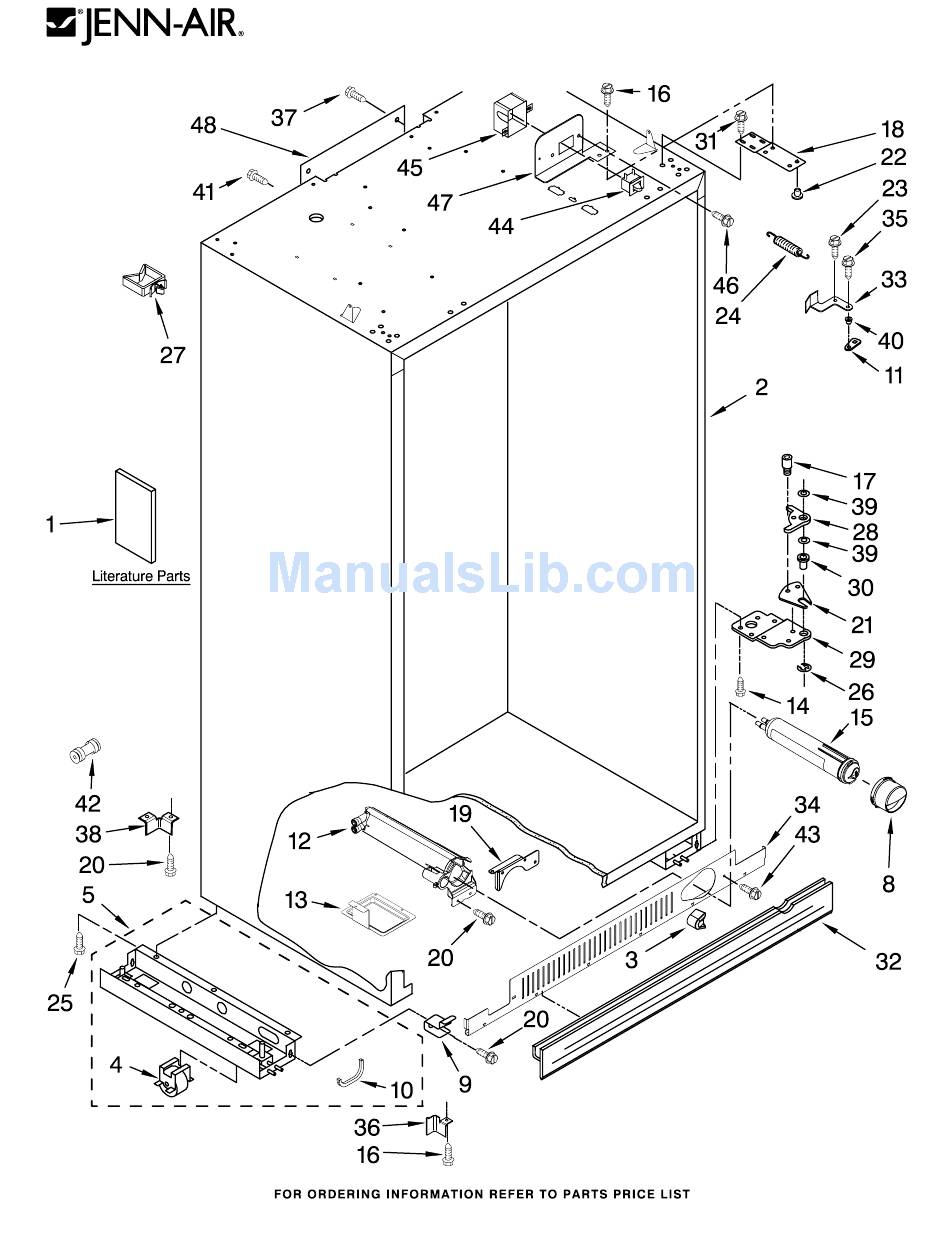

    CABINET PARTS For Model: JS48PPDUDB01 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Grille Bottom, 4396841 Filter, Water W10151251 Use & Care Guide Front 489399 Screw W10205626 Energy Guide 2325186B Black 3400230 Screw, Door Stop W10159832 Service &...
