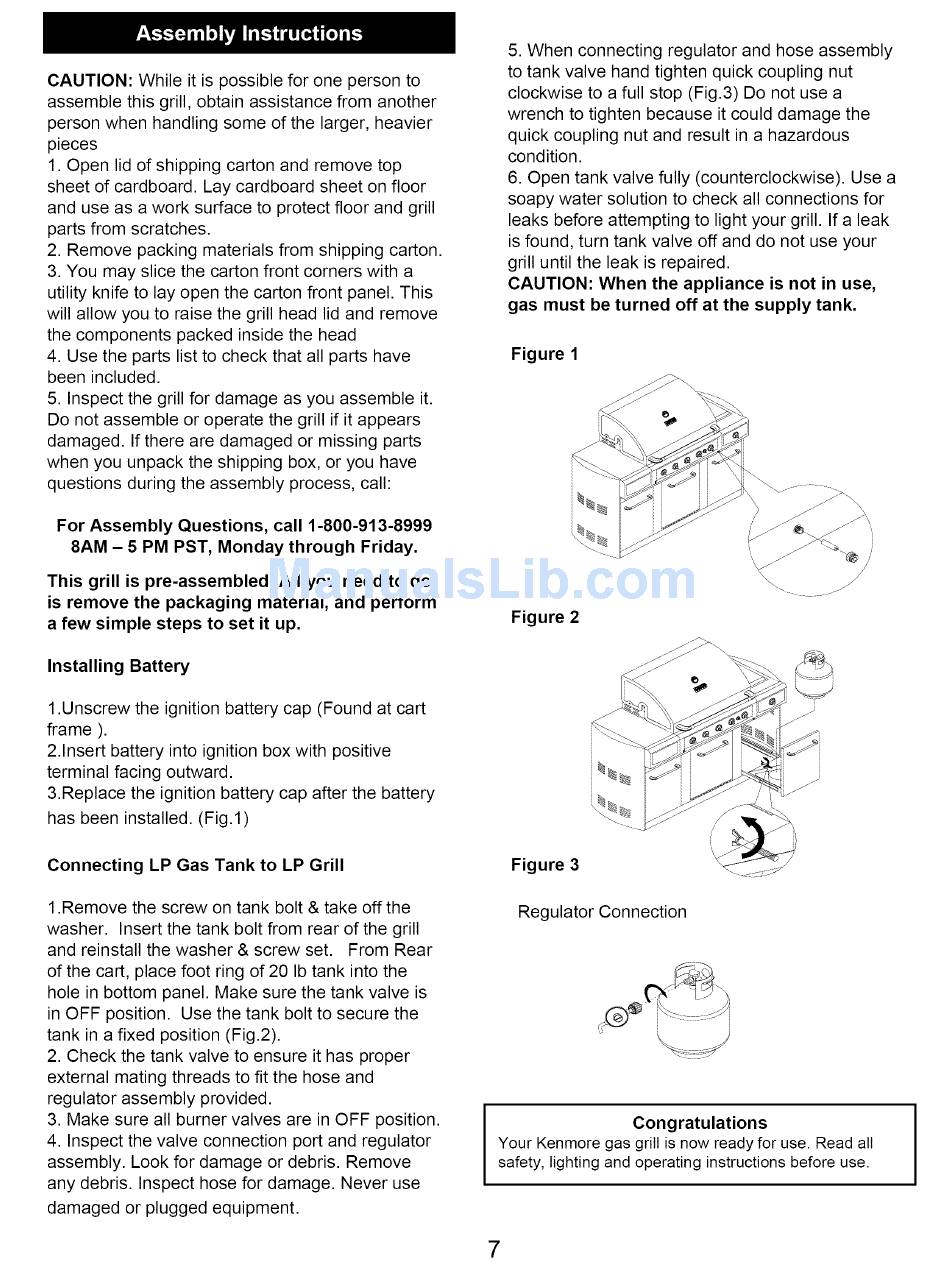

Kenmore 122.16654901 Use And Care Manual page 7

CAUTION: While it is possible for one person to
assemble this grill, obtain assistance from another
person when handling some of the larger, heavier
pieces
1. Open lid of shipping carton and remove top
sheet of cardboard. Lay cardboard sheet on floor
and use as a work surface to protect floor and grill
parts from scratches.
2. Remove packing materials from shipping carton.
3. You may slice the carton front corners with a
utility knife to lay open the carton front panel. This
will allow you to raise the grill head lid and remove
the components packed inside the head
4. Use the parts list to check that all parts have
been included.
5. Inspect the grill for damage as you assemble it.
Do not assemble or operate the grill if it appears
damaged. If there are damaged or missing parts
when you unpack the shipping box, or you have
questions during the assembly process, call:
For Assembly Questions, call 1-800-913-8999
8AM - 5 PM PST, Monday through Friday.
This grill is pre-assembled. All you need to do
is remove the packaging material, and perform
a few simple steps to set it up.
Installing Battery
1.Unscrew the ignition battery cap (Found at cart
frame ).
2.Insert battery into ignition box with positive
terminal facing outward.
&Replace the ignition battery cap after the battery
has been installed. (Fig.l)
Connecting LP Gas Tank to LP Grill
1.Remove the screw on tank bolt & take off the
washer. Insert the tank bolt from rear of the grill
and reinstall the washer & screw set. From Rear
of the cart, place foot ring of 20 Ib tank into the
hole in bottom panel. Make sure the tank valve is
in OFF position. Use the tank bolt to secure the
tank in a fixed position (Fig.2).
2. Check the tank valve to ensure it has proper
external mating threads to fit the hose and
regulator assembly provided.
3. Make sure all burner valves are in OFF position.
4. Inspect the valve connection port and regulator
assembly. Look for damage or debris. Remove
any debris. Inspect hose for damage. Never use
damaged or plugged equipment.
5. When connecting regulator and hose assembly
to tank valve hand tighten quick coupling nut
clockwise to a full stop (Fig.3) Do not use a
wrench to tighten because it could damage the
quick coupling nut and result in a hazardous
condition.
6. Open tank valve fully (counterclockwise). Use a
soapy water solution to check all connections for
leaks before attempting to light your grill. If a leak
is found, turn tank valve off and do not use your
grill until the leak is repaired.
CAUTION: When the appliance is not in use,
gas must be turned off at the supply tank.
Figure 1
Figure 2
Figure 3
Regulator Connection
Congratulations
Your Kenmore gas grill is now ready for use. Read all
safety, lighting and operating instructions before use.
