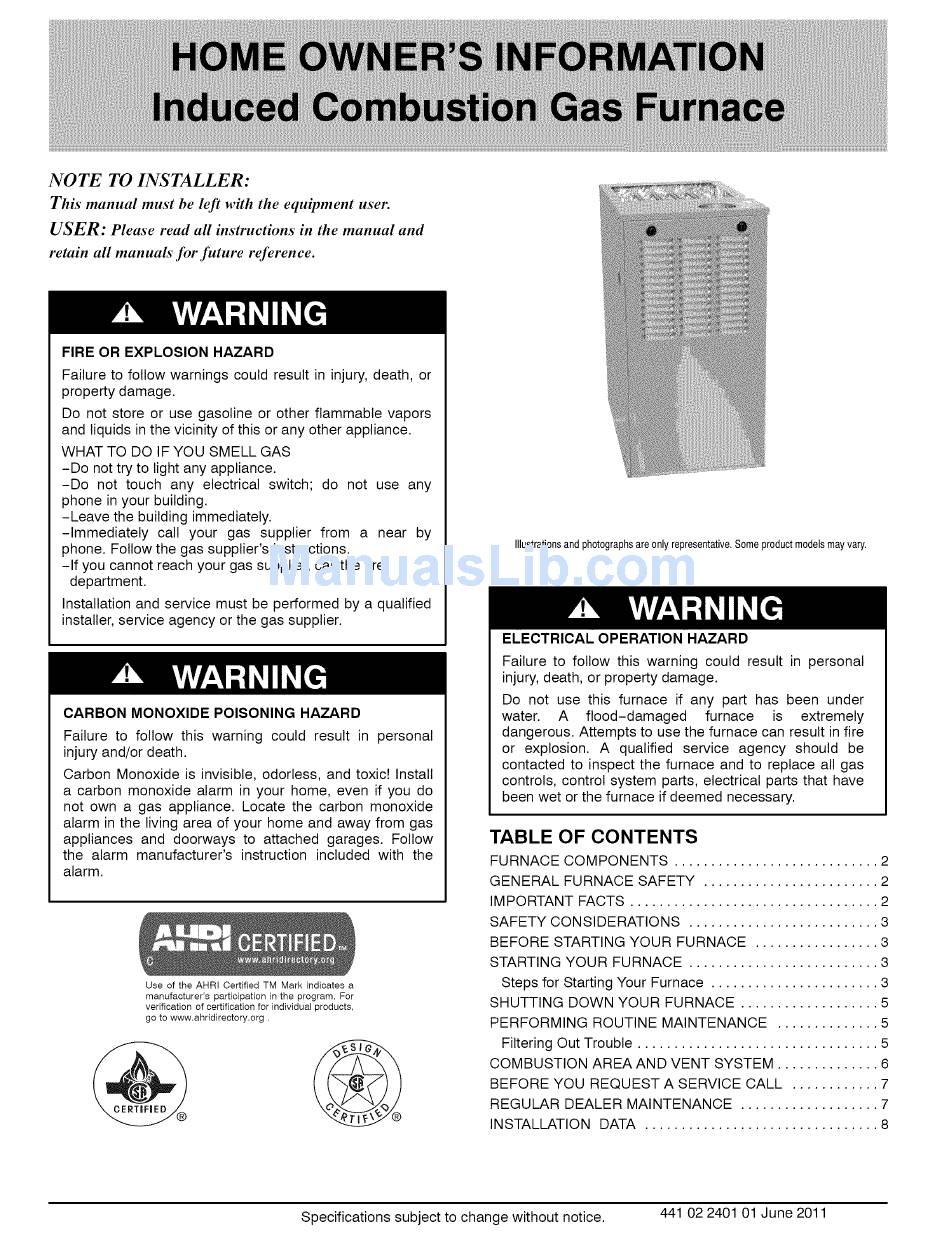

ICP Induced Combustion Gas Furnace Owner's Information

Induced combustion gas furnace
Hide thumbs
Table of Contents

Advertisement

Quick Links

NOTE
TO INSTALLER:
This manual
must be left with the equipment
user.
USER:
Please
read all instructions
in the manual
and
retain all manuals
for future
referenee.
FIRE OR EXPLOSION HAZARD
Failure to follow warnings could result in injury, death, or
property damage.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
-Do not try to light any appliance.
-Do
not touch
any electrical
switch;
do not use any
phone in your building.
-Leave the building immediately.
-Immediately
call your
gas supplier
from
a near by
phone. Follow the gas supplier's instructions.
-If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal
injury and/or death.
Carbon Monoxide is invisible, odorless, and toxic! Install
a carbon monoxide alarm in your home, even if you do
not own a gas appliance.
Locate the carbon monoxide
alarm in the living area of your home and away from gas
appliances
and doorways
to attached
garages.
Follow
the alarm manufacturer's
instruction
included with the
alarm.
Use of the AHRI Certified
TM Mark indicates
a
manufacturer's
participation
in the program= For
verification
of certification
for individual products,
go to www.ahridirectory.org
.

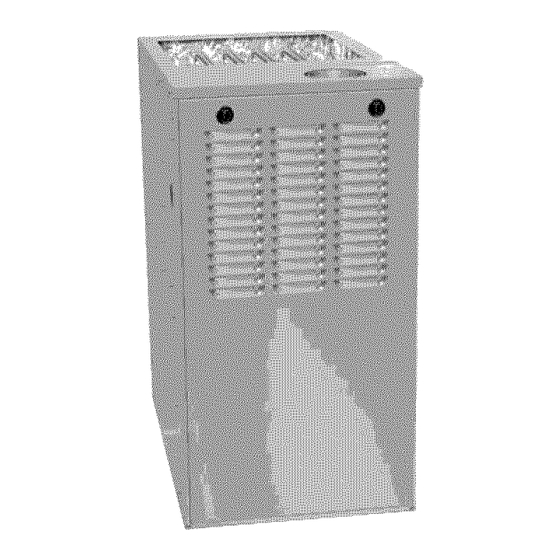

Illustrations and photographsare only representative.Some product modelsmay vary.
ELECTRICAL OPERATION HAZARD
Failure to follow this warning could result in personal
injury, death, or property damage.
Do not use this furnace if any part has been under
water.
A
flood-damaged
furnace
is
extremely
dangerous. Attempts to use the furnace can result in fire
or explosion.
A qualified
service
agency
should
be
contacted to inspect the furnace and to replace all gas
controls, control system parts, electrical parts that have
been wet or the furnace if deemed necessary.
TABLE
OF CONTENTS
FURNACE COMPONENTS
............................
2
GENERAL FURNACE SAFETY
........................
2
IMPORTANT FACTS ..................................
2
SAFETY CONSIDERATIONS
..........................
3
BEFORE STARTING YOUR FURNACE
.................
3
STARTING YOUR FURNACE ..........................
3
Steps for Starting Your Furnace .......................
3
SHUTTING DOWN YOUR FURNACE ...................
5
PERFORMING
ROUTINE MAINTENANCE
..............
5
Filtering Out Trouble .................................
5
COMBUSTION
AREA AND VENT SYSTEM ..............
6
BEFORE YOU REQUEST A SERVICE CALL
............
7
REGULAR DEALER MAINTENANCE
...................
7
INSTALLATION
DATA ................................
8
Specifications subject to change without notice.
441 02 2401 01 June 2011
