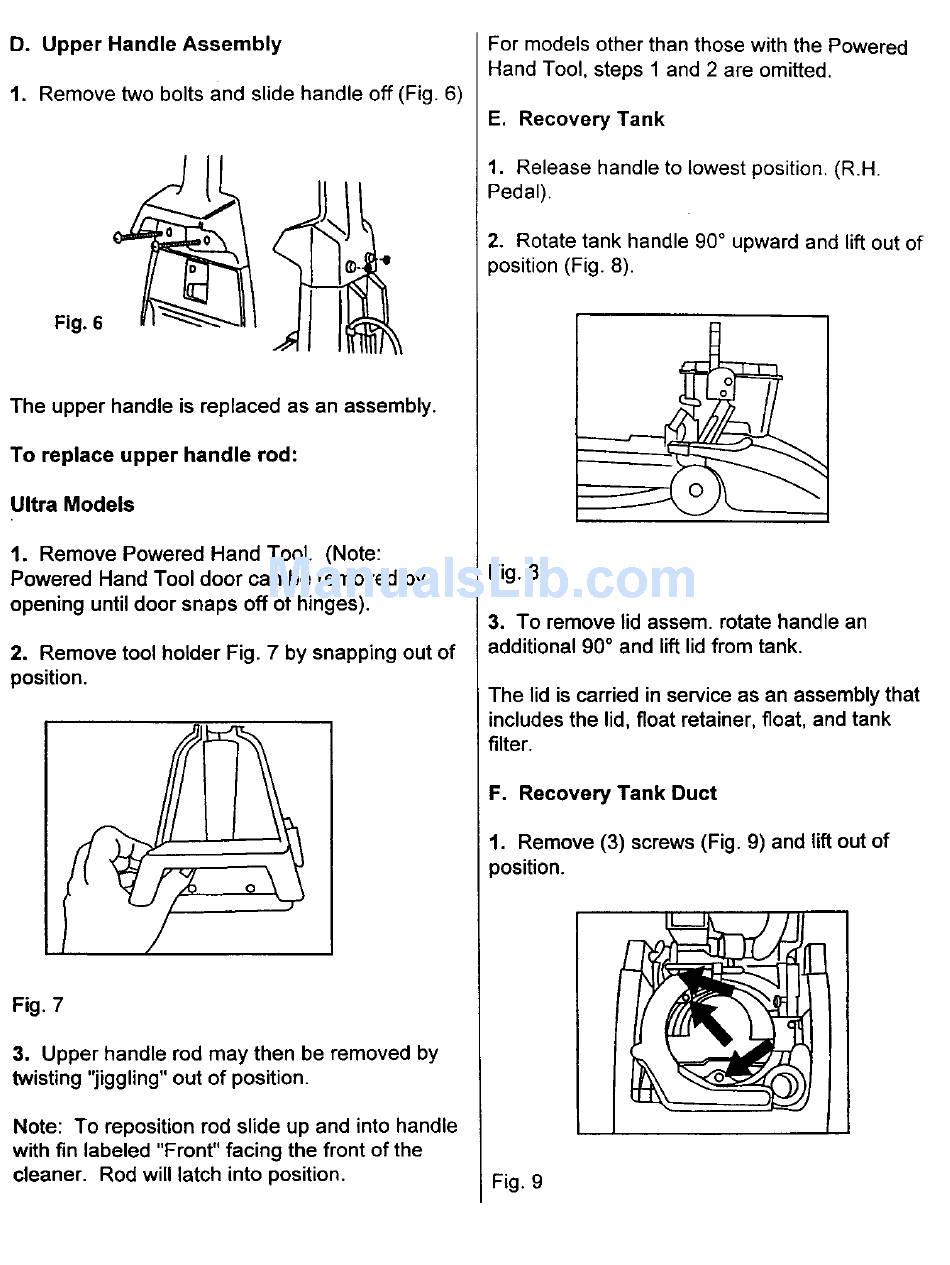

D. Upper Handle Assembly
1. Remove two bolts and slide handle off (Fig. 6)
Fig. 6
The upper handle is replaced as an assembly.
To replace upper handle rod:
Ultra Models
1. Remove Powered Hand Tool, (Note:
Powered Hand Tool door can be removed by
opening until door snaps off of hinges).
2. Remove tool holder Fig. 7 by snapping out of
position.
Fig. 7
3, Upper handle rod may then be removed by
twisting "jiggling" out of position.
Note: To reposition rod slide up and into handle
with fin labeled "Front" facing the front of the
cleaner. Rod will latch into position.
For models other than those with the Powered
Hand Tool, steps 1 and 2 are omitted.
E. Recovery Tank
1. Release handle to lowest position, (R.H.
Pedal).
2. Rotate tank handle 90° upward and lift out of
position (Fig. 8).
J
Fig. 8
3. To remove lid assem, rotate handle an
additional 90 ° and lift lid from tank.
The lid is carried in service as an assembly that
includes the lid, float retainer, float, and tank
filter.
F. Recovery Tank Duct
1. Remove (3) screws (Fig. 9) and lift out of
)osition.
J
i
Fig. 9
