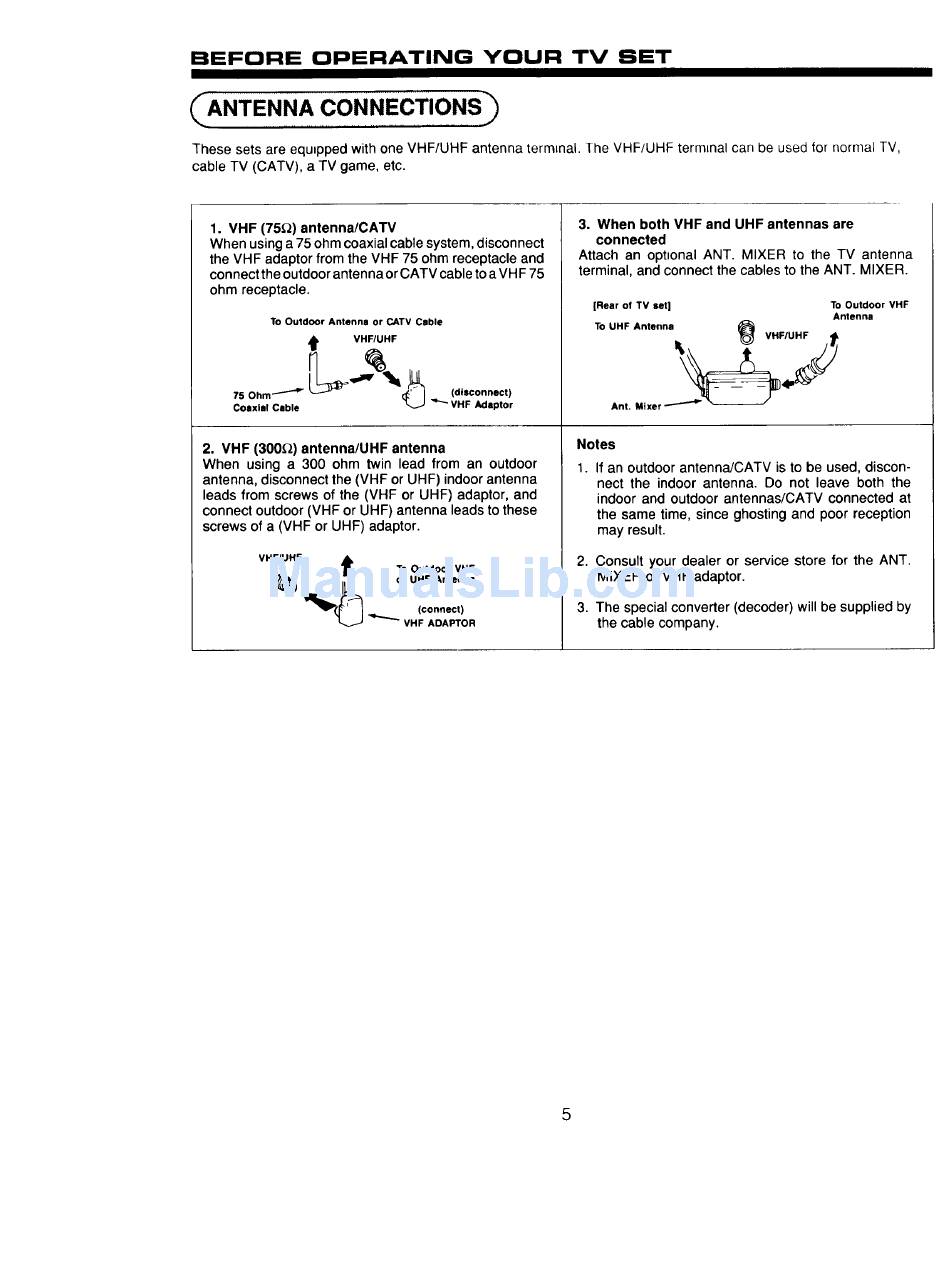

BEFORE
OPERATING
YOUR
TV
SET
( ANTENNA
CONNECTIONS
These sets are equipped with one VHF/UHF antenna terminal. Ihe VHF/UHF terminal carl be used tor normal TV,
cable TV (CATV), a TV game, etc.
1. VHF (75_) antenna/CATV
When using a 75 ohm coaxial cable system, disconnect
the VHF adaptor from the VHF 75 ohm receptacle and
connect the outdoor antenna or CATV cable to a VH F 75
ohm receptacle.
To Outdoor
Antenna
or CATV
Cable
VHF/UHF
75 Ohm ._---'_
_'IIJlW_
_.._
(disconnect)
Coaxial
Cable
_
VHF Adaptor
2. VHF (300_) antenna/UHF antenna
When using a 300 ohm twin lead from an outdoor
antenna, disconnect the (VHF or UHF) indoor antenna
leads from screws of the (VHF or UHF) adaptor, and
connect outdoor (VHF or UHF) antenna leads to these
screws of a (VHF or UHF) adaptor.
VHF/UHF
"_
TO Outdoor
VHF
) 1_1_(
_
or UHF
Antenna
(connect)
VHF ADAPTOR
3. When both VHF and UHF antennas are
connected
Attach an opt=onal ANT. MIXER to the TV antenna
terminal, and connect the cables to the ANT. MIXER.
[Rear
of TV set[
To Outdoor
VHF
Antenna
To UHF
Antenna
VHF/UHF
_,
Notes
1. If an outdoor antennaJCATV is to be used, discon-
2.
3,
nect the indoor antenna. Do not leave both the
indoor and outdoor antennas/CATV
connected at
the same time, since ghosting and poor reception
may result.
Consult your dealer or service store for the ANT.
MIXER or VHF adaptor.
The special converter (decoder) will be supplied by
the cable company.
5
