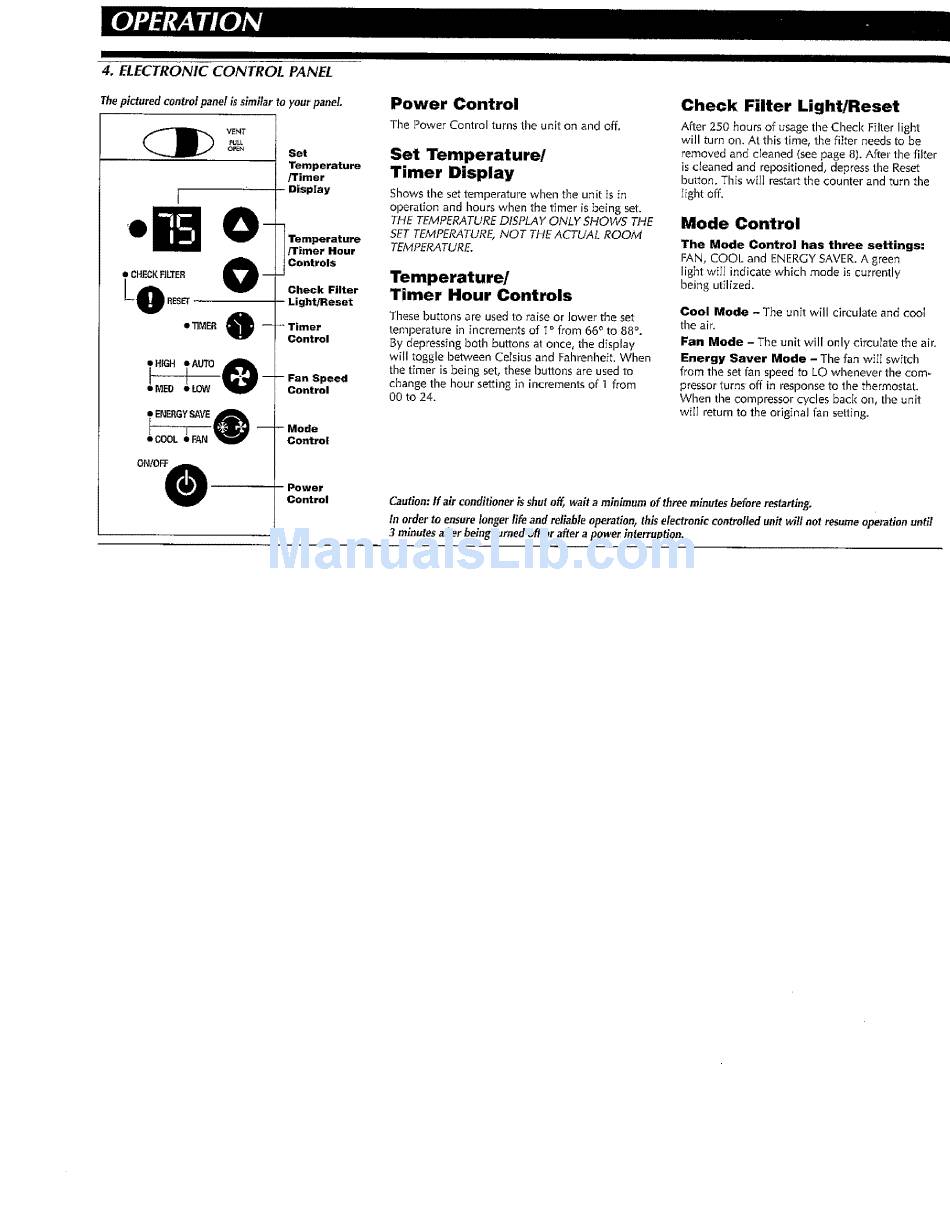

4. ELECTRONIC
CONTROL
PANEL
The pictured
control
panel
is similar
to your panel.
VENT
PULL
OPEN
• HIGH T AUTO :
t ENERGY SAVE
• COOL • FAN
Set
Temperature
Primer
Temperature
!rimer
Hour
Controls
Check
Filter
Control
Fan Speed
Control
-- Mode
Control
Power
Control
Power
Control
The Power Control turns the unit on _nd off.
Set
Temperature/
Timer
Display
Shows tile set temperature when the unit is in
operation and hours when the timer is being set.
THE TEMPERATURE DISPLAY ONLY SHOWS THE
SET TEMPERATURE, NOT THE ACTUAL ROOM
TEMPERATURE.
Temperature/
Timer
Hour
Controls
These buttons are used to raise or lower the set
temperature in increments of _ ° from 66° to 88 °.
By depressing both buttons at once, the display
will toggle between Celsius and Fahrenheit. When
the timer is being set, these buttons are used to
change the hour setting in increments of 1 from
00 to 24.
Check
Filter
Light/Reset
After 250 hours of usage the Checl< Filter light
will turn on. At this time, the filter needs to be
removed and cleaned (see page 8). After tile filter
is cteaned and repositioned, depress the Reset
button. This w[]] restart the counter and turn the
light off.
Mode
Control
The Mode
Control
has three
settings:
FAN, COOL and ENERGY SAVER. A green
light will indicate which mode is currently
being utilized.
Cool Mode - The unit will circuJate and cool
tile air.
Fan Mode
- The unit will only circulate the air.
Energy
Saver
Mode
- The fan will switch
from tile set fan speed to LO whenever tile com_
pressor turns off in response to the thermostat.
When the compressor cycles back on, the unit
wiII return to the original fan setting.
Caution: If air conditioner is shut off, wa# a minimum of three minutes before restarting.
In order to ensure longer life and reliable operationt this electronic controlled unit will not resume operation until
3 minutes aRer being turned off or after a power interruption.
