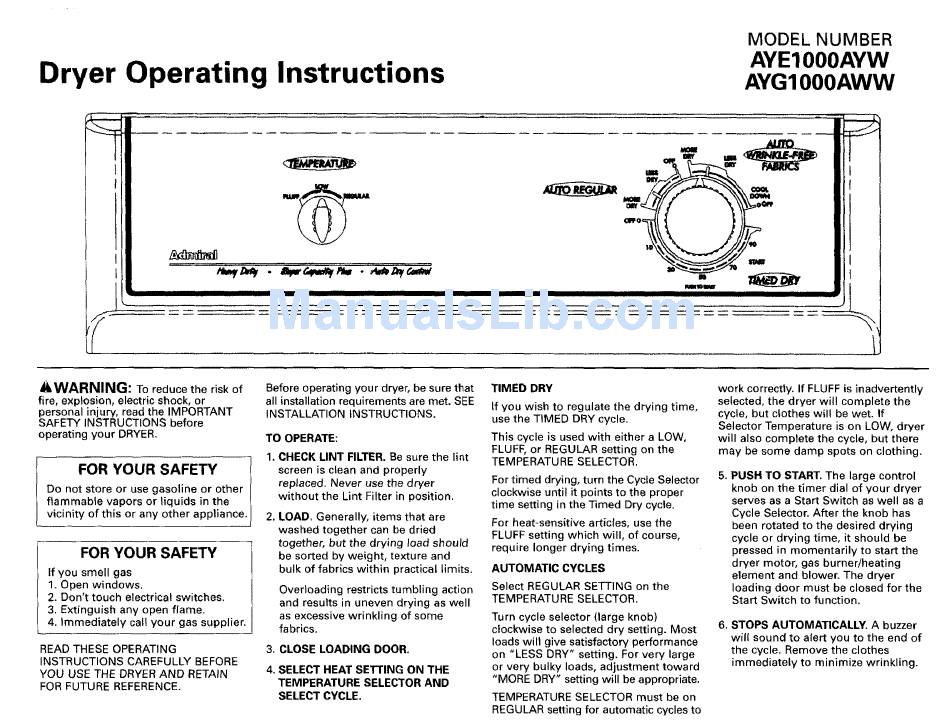

Admiral AYE1000AYW Operating Instructions

Dryer Operating Instructions
MODEL NUMBER
AYE1000AYW
AYG1000AWW
_ ,o L
I I IIIII I IIIIIIIIIIIIIIIIIII III II I
t_,. IIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIIIIIIIIIIII _ IIIIIIIIIII
&WARNING:
To reduce the risk of
fire, explosion, electric shock, or
personal injury, read the IMPORTANT
SAFETY INSTRUCTIONS before
operating your DRYER.
! FOR YOUR SAFETY
Do not store or use gasoline or other
I flammable vapors or liquids in the
vicinity of this or any other appliance.
FOR YOUR SAFETY
If you smell gas
1. Open windows.
2. Don't touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
READ THESE OPERATING
INSTRUCTIONS CAREFULLY BEFORE
YOU USE THE DRYER AND RETAIN
FOR FUTURE REFERENCE.
Before operating your dryer, be sure that
all installation requirements are met. SEE
INSTALLATION INSTRUCTIONS.
TO OPERATE:
1. CHECK LINT FILTER. Be sure the lint
screen is clean and properly
replaced. Never use the dryer
without the Lint Filter in position.
2. LOAD. Generally, items that are
washed together can be dried
together, but the drying load should
be sorted by weight, texture and
bulk of fabrics within practical limits.
Overloading restricts tumbling action
and results in uneven drying as well
as excessive wrinkling of some
fabrics.
3. CLOSE LOADING DOOR.
4, SELECT HEAT SETTING ON THE
TEMPERATURE SELECTOR AND
SELECT CYCLE.
TIMED DRY
If you wish to regulate the drying time,
use the TIMED DRY cycle.
This cycle is used with either a LOW,
FLUFF, or REGULAR setting on the
TEMPERATURE SELECTOR.
For timed drying, turn the Cycle Selector
clockwise until it points to the proper
time setting in the "rimed Dry cycle.
For heat-sensitive articles, use the
FLUFF setting which will, of course,
require longer drying times.
AUTOMATIC CYCLES
Select REGULAR SETTING on the
TEMPERATURE SELECTOR.
Turn cycle selector (large knob)
clockwise to selected dry setting. Most
loads will give satisfactory performance
on "LESS DRY" setting. For very large
or very bulky loads, adjustment toward
"MORE DRY" setting will be appropriate.
TEMPERATURE SELECTOR must be on
REGULAR setting for automatic cycles to
work correctly. If FLUFF is inadvertently
selected, the dryer will complete the
cycle, but clothes will be wet. If
Selector Temperature is on LOW, dryer
will also complete the cycle, but there
may be some damp spots on clothing.
5,
PUSH TO START. The large control
knob on the timer dial of your dryer
serves as a Start Switch as well as a
Cycle Selector. After the knob has
been rotated to the desired drying
cycle or drying time, it should be
pressed in momentarily to start the
dryer motor, gas burner/heating
element and blower. The dryer
loading door must be closed for the
Start Switch to function.
6,
STOPS AUTOMATICALLY. A buzzer
will sound to alert you to the end of
the cycle. Remove the clothes
immediately to minimize wrinkling.
