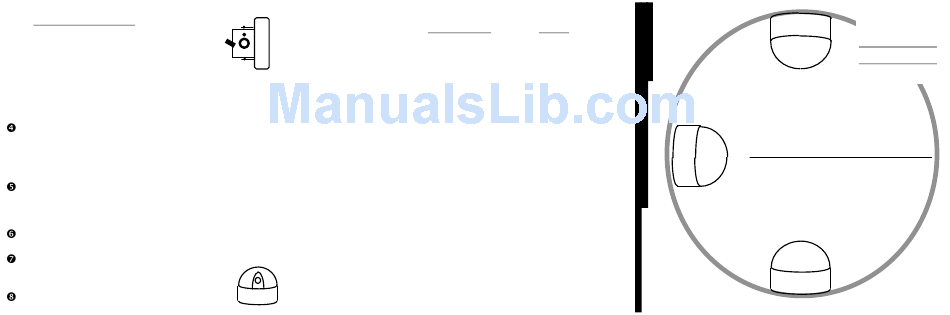

4) Wall Mount, aim to left:
Remove the iron case from the supporting
bracket by using screw driver to loosen the
two screws, which connect the iron case to
the supporting bracket. Turn the iron case
in 90-degree and mount into the supporting bracket again
by changing the screw holes in order to keep the screw
indicator on the top side.
Connect the video output of the camera (yellow line) to a B/W
monitor (ED120) or a color monitor (ED200), or other video
device through a 75 ohm type coaxial cable with BNC female
connector at cable extension.
Connect the DC+12V regulated power source of the camera
(red line) to the DC12V Power-in jack with 2mm, center+,
outer- plug.
Connect the ground of the camera (black line) to the ground.
Connect the audio output of the camera (white line) for EM120
to the audio connector of the monitor.
Put the plastic cover back on the Dome Camera.
IV. Specifications
ED120
Pickup Device:
1/3 inch B/W interline
transfer CCD
Picture Element:
510 x 492 (EIA)
500 x 580 (CCIR)
Horizontal resolution:
420 TV lines (EIA)
400 TV lines (CCIR)
Sensitivity:
0.04 lux/F=2.0
S/N ratio:
Over 48 dB
Electronic shutter:
Up to 1/100,000
Gamma Correction:
> 0.45
Video output:
1.0Vp-p,75 ohm
Audio Output:
Yes
Power source:
12VDC+/-10%,
150mA Max.
Sync. Mode:
Internal Sync.
Lens Mount:
M12 x P0.5
Dimension:
106mm Dia x 85mm H.
o
o
Operating Temperature: -10
C to +50
C
ED200
1/3 inch Color
interline transfer CCD
510 x 492 (NTSC)
500 x 580 (PAL)
380 TV lines (NTSC)
340 TV lines (PAL)
2.5 lux/F=2.0
Over 48dB
Up to 1/100,000
0.45
1.0Vp-p,75 ohm
---
12VDC+/-10%,
250mA Max.
Internal Sync.
M12 x P0.5
106mm Dia x 85mm H.
o
o
-10
C to +50
C

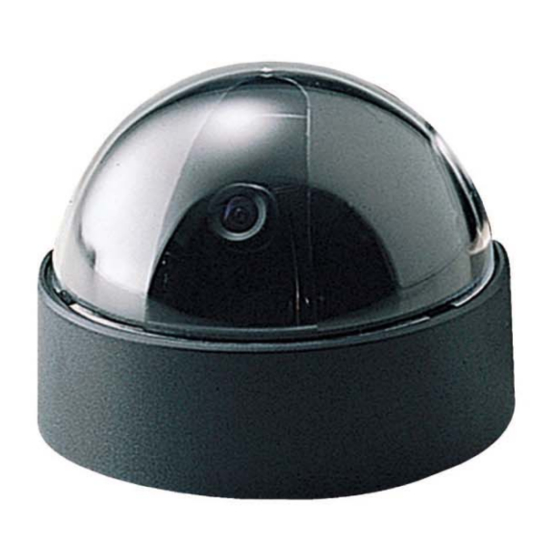

ED120 Series
ED200 Series
INSTRUCTION
MANUAL
