Summary of Contents for EverFocus EDH5102

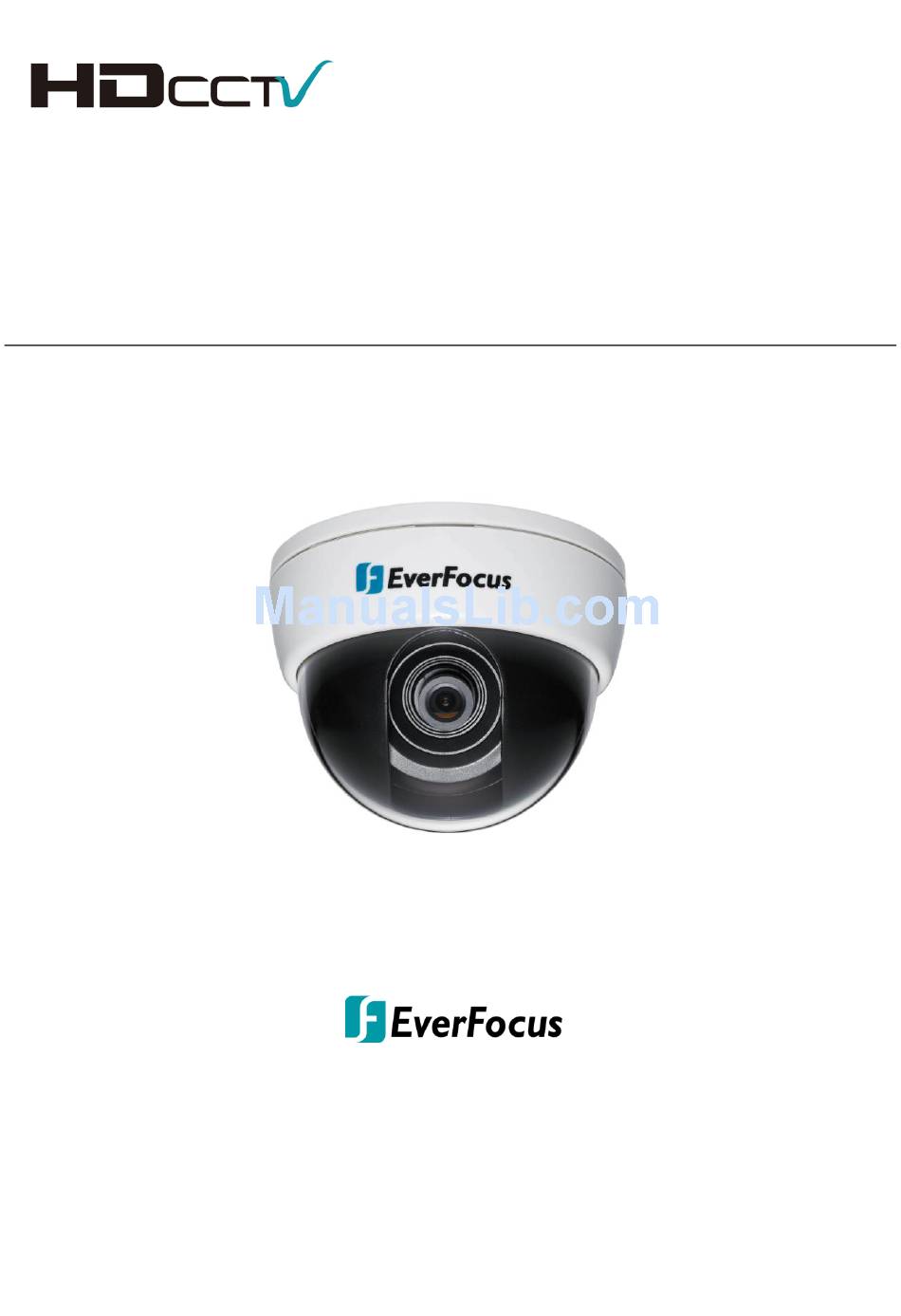

- Page 1 EDH5102 1080p Mini Dome Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: October, 2012...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation.
-
Page 3: Table Of Contents
Contents 1. INTRODUCTION ..................1 ..................... 1 ACKING ......................1 EATURES 2. CABLE DESCRIPTION................2 3. INSTALLATION ..................3 ................3 NSTALLATION AND DJUSTMENT 4. CONFIGURATION IN THE OSD MENU ..........5 OSD M ......................5 4.1.1 E ..........................5 XPOSURE 4.1.2 C ............................ -
Page 4: Introduction
EDH5102 1080p Mini Dome Camera 1. Introduction The EDH5102 is an HDcctv indoor mini dome camera. Based on a progressive scan CMOS sensor, the camera provides 1080p high resolution images and superior video quality compared to traditional CCTV images. This superior resolution not only captures more critical evidentiary information, but the inherent ability for megapixel video also extends the area of coverage, expedites completion of investigations, resolves complaints and reduces both capital and operational costs. -
Page 5: Cable Description
Connects to an HDcctv device, such as a DVR or HD HDcctv Output monitor, using a 75 Ohm BNC-type coaxial cable. Connects to an RS-485 device, such as EverFocus’ EKB500 RS485+ (Green) keyboard. Connects to an RS-485 device, such as EverFocus’ EKB500 RS485- (Blue) keyboard. -
Page 6: Installation
EDH5102 1080p Mini Dome Camera 3. Installation 3.1 Installation and Adjustment Stick the mounting template on the position where you want to attach the camera. Drill the two holes on the template for screwing the camera with the supplied screws and anchors, and the circle in the middle only if you want to wire the cables through the wall / ceiling. - Page 7 EDH5102 1080p Mini Dome Camera Connect the camera to a DVR or a portable monitor using the Test-Out cable for viewing the camera view while adjusting camera angles. You can also use the OSD Menu Joystick to configure camera settings.
-
Page 8: Configuration In The Osd Menu
EDH5102 1080p Mini Dome Camera 4. Configuration in the OSD Menu You can use the Joystick on the rear panel of the camera to configure camera settings in the OSD menu. For details on the OSD menu structure, see OSD Menu Structure in Appendix. -
Page 9: Color
EDH5102 1080p Mini Dome Camera LENS You can select the type of the lens. Two types are available: Manual and DC. By default, the Manual type lens is selected. Shutter Use the and buttons to adjust the shutter speed. The options include: 1/25 ~ 1/60000, FLK, and AUTO. -
Page 10: Image
EDH5102 1080p Mini Dome Camera CHROMA Use the and buttons to increase or decrease the CHROMA from 0 to 20. R-OFFSET/B-OFFSET Use the and buttons to increase or decrease the Red and Blue offset from 0 to 20. -
Page 11: Blc
EDH5102 1080p Mini Dome Camera SHADING Turn it on to offset diminished light transmission through lens periphery for uniform image illumination. DAY&NIGHT The options include MODE, AGC THRS, DELAY. A submenu can be entered if you select MODE. MODE – Use the and buttons to select AUTO, COLOR and B&W. Switches to a B&W feed in low light conditions and then switches back to a Color feed in the daytime. -
Page 12: Dnr
EDH5102 1080p Mini Dome Camera MODE Use the and buttons to select OFF and BLC. BLC OSD, POS and SIZ Select OFF to disable the BLC function, or select ON to enable the BLC function and for further setup. -
Page 13: System
EDH5102 1080p Mini Dome Camera RESOLUTION Use the and buttons to increase or decrease the RESOLUTION level from 0 to 4. SENSITIVITY Press to set up the sensitivity for the motion detection function. WINDOW TRANS Press to select the transparency of motion detect zone. - Page 14 EDH5102 1080p Mini Dome Camera 1.00 F / W VER DEFECT DET Press to select the DPC (Defective Pixel Correction) level of defect detector. Please notice; do not use this function without cover the lens. The camera will automatically correct pixel defects.
- Page 15 EDH5102 1080p Mini Dome Camera will also change accordingly. LANGUAGE Select a language for the OSD text. Options include English, French, German, Simplified Chinese, Korean and Japanese. RESET Turn it on to reset the settings. F / W VERSION: Firmware Version...
-
Page 16: Specifications
On / Off Digital Zoom 0 - 96 steps Privacy Mask 32 Zones, Programmable Motion Detection On / Off 2400~115200> baud, ID 1~255, Protocols: Pelco-D/P, EverFocus RS - 485 EVF-1; Language English /French /German /Chinese /Korean /Japanese /Russian Power Source 12VDC Power Consumption 12VDC: 220mA max. -
Page 17: Appendix
EDH5102 1080p Mini Dome Camera 6. Appendix 6.1 OSD Menu Structure The default value is marked with a star “*”. Main Sub Menu Sub Menu / Function BRIGHTNESS 1~20 (default=6) MODE INDOOR*, OUTDOOR LENS MANUAL*, DC AUTO* EXPOSURE SHUTTER MANUAL... - Page 18 EDH5102 1080p Mini Dome Camera SHADING ON*, OFF AUTO* MODE COLOR B&W DAY&NIGHT AGC THRS 0~20 (default=10) MARGIN 0~20 (default=) DELAY 0, 5*, 10, 30 SEC OFF* HLMASK LEVEL 0~20 (default=10) COLOR BLK*/WHT/YEL/CYN/GRN/MAG/RED/BLU ON, OFF* GAMMA 0.45*, 0.5, 0.55, 0.65, 0.75...
- Page 19 EDH5102 1080p Mini Dome Camera DOUT 720P, 1080P* FORMAT DOUT FPS 50, 60 ,25*, 30 FREQ 50*, 60 HZ CVBS PAL*, NTSC LANGUAGE English*, Chinese, Japanese, Korean, French, German, Russian RESET PUSH, PUSHING...
- Page 20 EDH5102 1080p Mini Dome Camera EverFocus Electronics Corp. EverFocus Taiwan: EverFocus Europe - Germany: 12F, No.79, Sec. 1, Shin-Tai Wu Road, Albert-Einstein-Strasse 1, D-46446 Hsi-Chih, Taipei, Taiwan Emmerich, Germany TEL: +886 2 2698 2334 TEL: +49 2822 93940 FAX: +886 2 2698 2380 FAX: +49 2822 939495 www.everfocus.com.tw...
