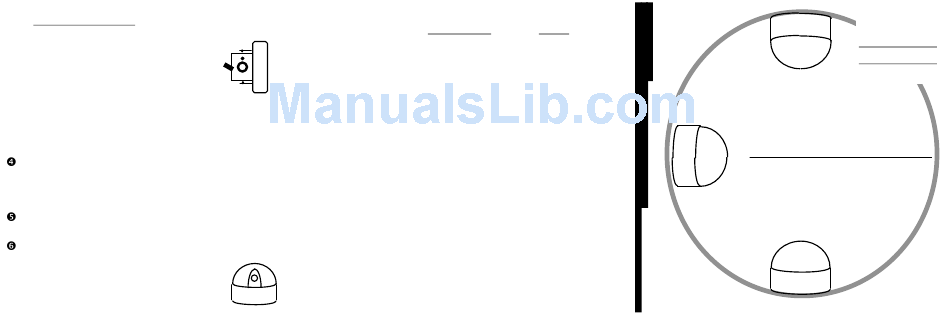

4) Wall Mount, aim to left:
Remove the iron case from the
supporting bracket by using screw
driver to loosen the two screws,
which connect the iron case to the
supporting bracket. Turn the iron
case in 90-degree and mount into
the supporting bracket again by
changing the screw holes in order
to keep the screw indicator on the
top side.
Connect the video output of the camera to a B/W monitor
(ED100) or a color monitor (ED200), or other video device
through a 75 ohm type coaxial cable with BNC female
connector at cable extension.
Connect the DC+12V regulated power source to the DC12V
Power-in jack with 2mm, center+, outer- plug.
Put the dome plastic cover back into the Dome Camera.

IV. Specifications

ED100
Pickup Device:
1/3 inch B/W interline
transfer CCD
Picture Element:
510x492(/E,EIA)
500x580(/C,CCIR)
Horizontal resolution:
420 TV lines (EIA)
400 TV lines (CCIR)
Sensitivity:
0.5 lux/F=2.0
S/N ratio:
Over 48 dB
Electronic shutter:
Up to 1/10,000
Gamma Correction:
> 0.45
Video output:
1.0Vp-p,75 ohm
Power source:
12VDC+/-10%,
150mA Max.
Sync. Mode:
Internal Sync.
Lens Mount:
M12xP0.5
Dimension:
106mm Dia.x 85mm H.
o
o
Operating Temperature: -10
C to +50
C
ED200
1/3 inch Color
interline transfer CCD
510x492(/N,NTSC)
500x580(/P, PAL)
380 TV lines (NTSC)
340 TV lines (PAL)
2.5 lux/F=2.0
Over 48dB
Up to 1/100,000
0.45
1.0Vp-p,75 ohm
12VDC+/-10%,
250mA Max.
Internal Sync.
M12xP0.5
106mm Dia.x85mm H.
o
o
-10
C to +50
C

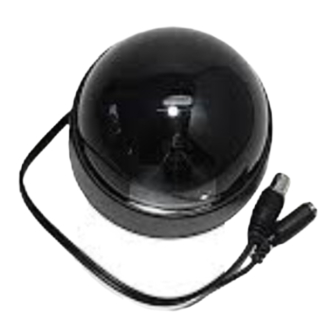

ED100 Series
ED200 Series
INSTRUCTION
MANUAL
