FUSES (INTEGRATED POWER MODULE)

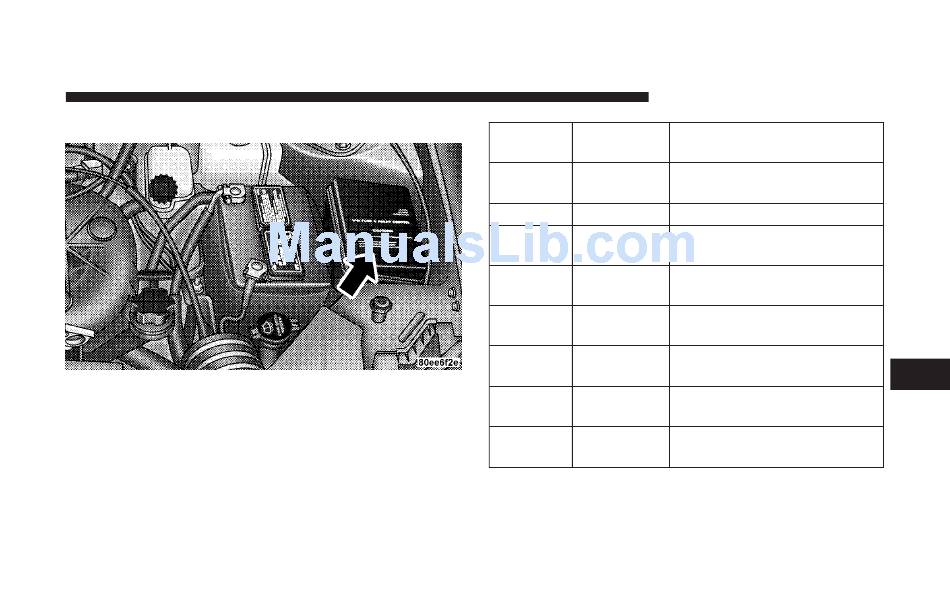

Integrated Power Module (IPM)
An Integrated Power Module (IPM) is located in the
engine compartment near the battery. This center con-
tains maxi fuses, mini fuses and relays. A label that
identifies each component is printed on the inside of the
cover.
MAINTAINING YOUR VEHICLE 407
Cavity Cartridge
Fuse
1 40 Amp
Green
2 Spare
3 30 Amp
Pink
4 40 Amp
Green
5 40 Amp
Green
6 30 Amp
Pink
7 40 Amp
Green
8 40 Amp
Green
Description
Anti-Lock Brake System
(ABS) Pump
Ignition Off Draw (IOD)
Body Control Module
(BCM) Feed 1
Electronic Back Light (EBL)
Front Wipers
Starter
Power Seat C/B
7
