PEERLESS PT660 Manual

PT660

FeatureS

Universal mount

accommodates displays
with mounting hole
patterns up to 738 x 449mm
(29.04" W x 17.67" H)
Adjustable up to 15° of

forward tilt and up to -5°
backward tilt for optimal
viewing angle
Easy-Grip handle locks the
 TM
display position into place
Wall access ports for easy

access to electrical
outlets and cable
management
Horizontal display

adjustment of up to 8"
(203mm) (depending on
display model) for perfect
display placement
 Mounts to wood studs,
concrete, cinderblock or
metal studs (metal stud
accessory required)
Comes with Peerless-AV

Sorted-for-You™ fastener
pack with all necessary
screen attachment
hardware
UL Listed


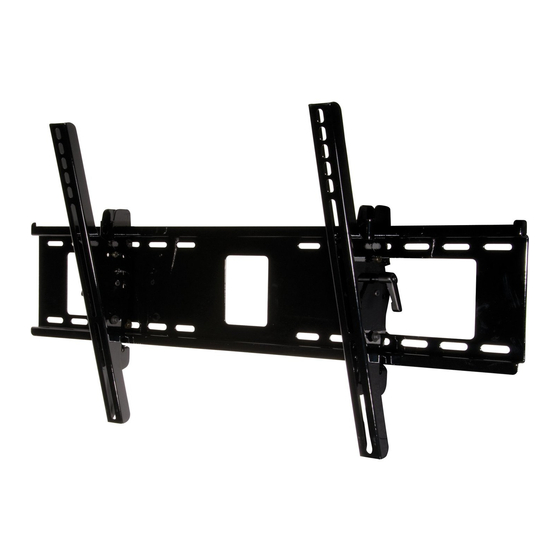

Universal Tilt Wall Mount
for 37" to 60" Flat Panel Displays
Easily install larger displays with this simple, intuitive mounting solution. Its simple three step
installation combined with its tool-less tilt angle adjustment enables flat panel displays to be
installed and adjusted quickly. Cables are easily managed behind the display with access
ports in the wall plate. For perfect display positioning, center the display by smoothly sliding
it along the wall plates horizontal rails.
VieWing
FLexibiLity
Horizontal display
adjustment up to
8" (203mm)
CLiCK: www.peerless-av.com
Display size: 37"-60"

WaLL aCCeSS

Wall plate knockouts allow
for wall access improving
cable management options
inCreLOK tM
Optional tilt angle
lock in 5° increments
CaLL: 800.865.2112 Fax: 800.359.6500
Max load: 200lb (91kg)

eaSy inStaLLatiOn

Simple hook-on design
makes installation quick
and easy
Tilt adjustment of +15/-5°
