Page 1

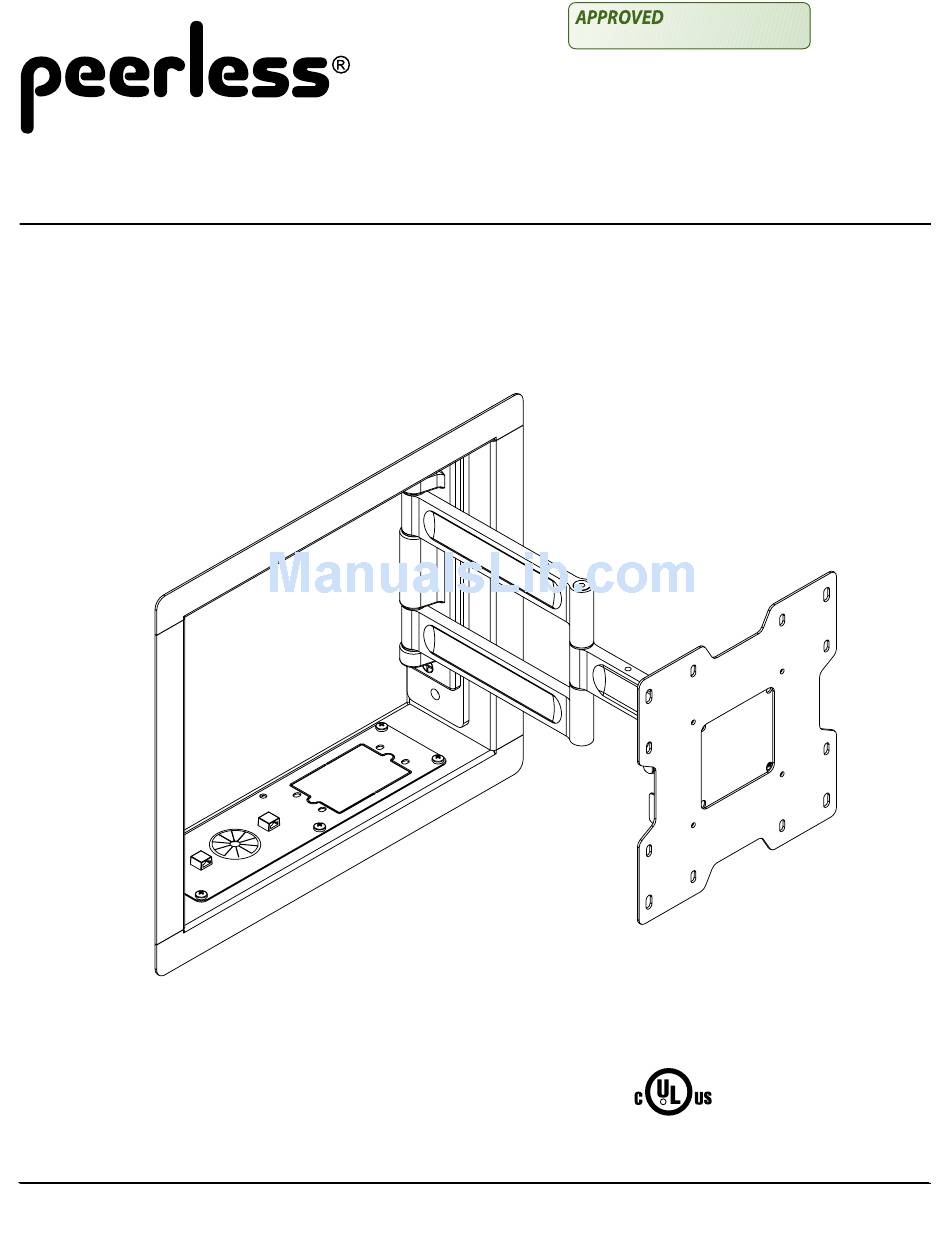

By adamm15of at 8:51 am, 3/30/10 Installation and Assembly: In-wall Mount for up to 40" Flat Panel Screens Models: IM740P, IM740P-S This product is intended for use with UL Listed products and must be installed by a qualified professional installer. Maximum UL Load Capacity: 80 lb (36.3 kg) 1 of 6...
Page 2
Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112. • This product should only be installed by someone of good mechanical aptitude, has experience with basic building construction, and fully understands these instructions.
Before you begin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List IM740P IM740P-S Description Qty. Part # Part # in-wall box 095-P1536 095-C4536 #10 x 1.5" wood screw 500-2002 500-2002 mounting cover plate 095-P1533 095-C4533 ribbed rivet...
Installation to Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. • Never tighten in excess of 80 in. • lb (9 N.M.). • Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is highly recommended. • hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install- ers are responsible to provide hardware for other types of mounting situations. In-wall box (A) must be installed between two studs 16" on center. Use an edge-to-edge stud finder to locate the edges of the stud.
Page 5
Installing Articulating Arm to In-wall Box Choose hole pattern on interior mounting plate of in-wall box (A) which align with hole pattern on the wall plate of PA740 articulating arm (AA). Mounting hole alignments may be selected for different height installations. Note: Consider position of screen center or routing of cables before securing arm to in-wall box.
